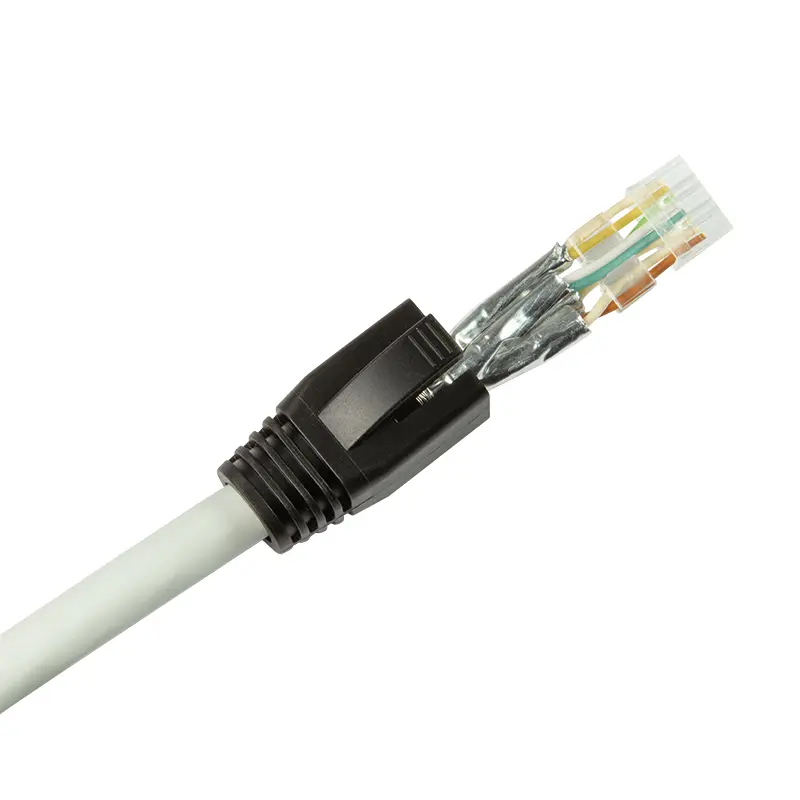

LogiLink MP0070 RJ-45 Modular Plug Cat6a STP Silver 50-Pack

The LogiLink MP0070 is a pack of 50 shielded Cat6a STP modular RJ-45 connectors in a silver finish, designed for reliable network cable termination and patch cord assembly. Featuring a 6.5 mm outer diameter compatibility and gold contacts, these connectors ensure stable data transmission for high-speed Ethernet networking applications in home and office environments.

Key specifications

• Connector type: RJ-45
• Cable standard: Cat6a S/UTP (STP)
• Compatible outer diameter: 6.5 mm
• Quantity per pack: 50 pieces
• Product colour: Silver
• Gold plated pins with 3 prongs
• Suitable for solid and stranded wires
• Compatible with AWG24, AWG26, and AWG27 round cables

Advantages

The LogiLink MP0070 modular plugs provide a secure and stable connection for high-speed Ethernet networks supporting data rates up to 10 Gbps. The integrated shielding helps minimize electromagnetic interference, ensuring consistent signal integrity over long distances. Each connector features gold-plated pins for optimal conductivity and corrosion resistance. The inclusion of wire guide plates and load bars simplifies the alignment and insertion of internal wires during assembly, reducing installation time and potential wiring errors. The durable construction supports both solid and stranded cables across multiple wire gauges, offering flexibility for various networking projects.

Suitable for

• Terminating Cat6a, Cat6, Cat7, and Cat7a network cables
• Assembling custom-length Ethernet patch cords
• Setting up high-speed local area networks in homes and offices
• Professional network installations and structured cabling maintenance

When it may not be suitable

These connectors are not designed for unshielded UTP cables where shielding is unnecessary or not supported by the grounding setup. They are also unsuitable for cables with outer diameters significantly larger than 6.5 mm or wire thicknesses outside the specified AWG range.

How to use

Prepare the network cable by stripping the outer jacket carefully to expose the internal wires without damaging the insulation. Sort and straighten the individual conductors according to the desired wiring standard, such as T568A or T568B. Insert the wires through the provided guide plates and load bars to keep them organized and properly spaced. Trim the wire ends evenly and insert them fully into the RJ-45 modular plug, ensuring each conductor makes contact with the end of the housing. Use a standard RJ-45 crimp tool to securely press the pins down and lock the connector onto the cable.

What to consider before purchase

• Verify that your network cable type matches the Cat6a STP standard and has an outer diameter of up to 6.5 mm.
• Check that you have a standard RJ-45 crimp tool available for assembly.
• Ensure the wire gauge of your cable falls within the compatible AWG24, AWG26, or AWG27 range.

Always inspect the wire alignment through the guide plate before crimping to prevent miswiring, and test the completed patch cord with a cable tester to verify proper connectivity and signal transmission.
