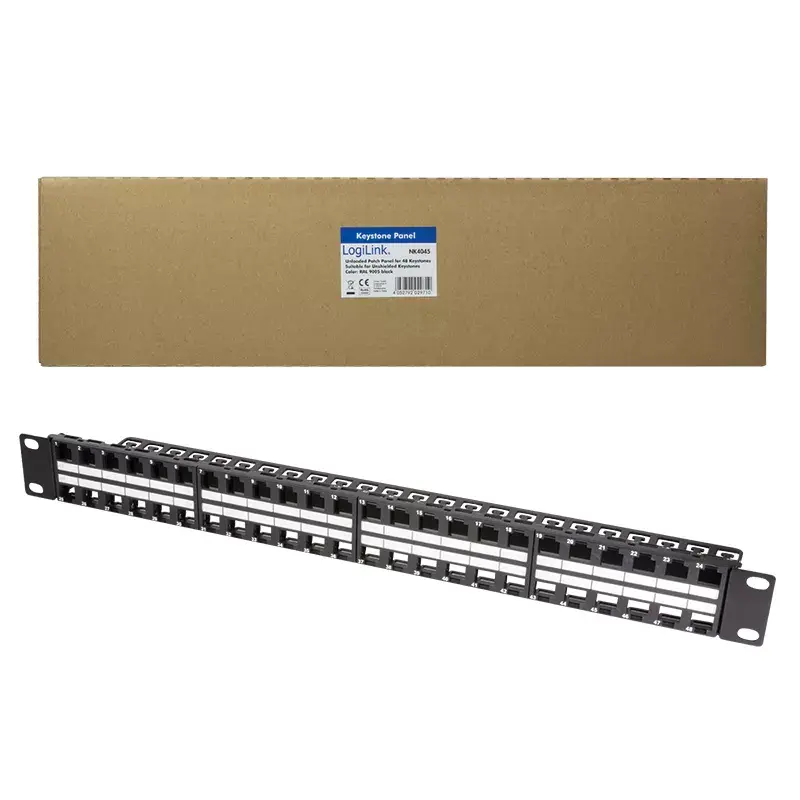

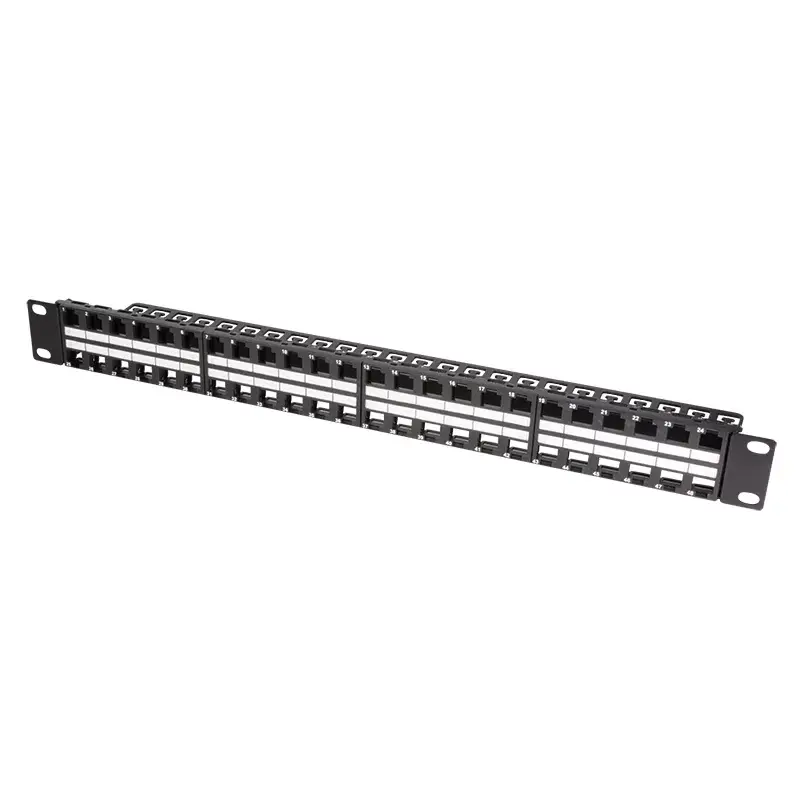

Patch Panel LogiLink NK4045 1U Black Metal Rack Mounting

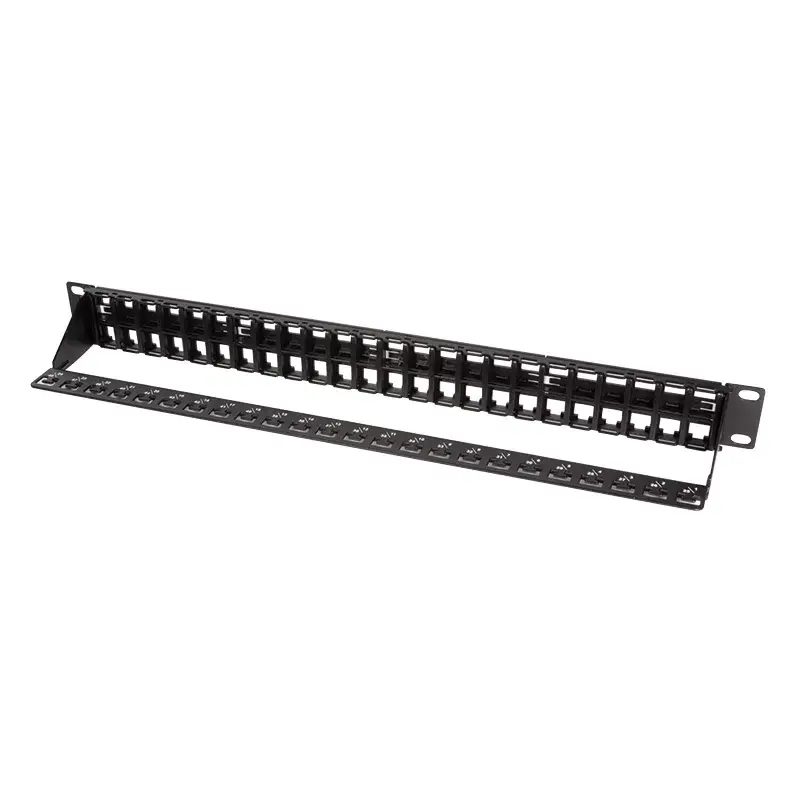

The LogiLink NK4045 is a professional-grade 1U patch panel engineered for seamless integration into standard 19-inch server racks and enclosures. Constructed from robust black metal, this high-density unit provides a reliable foundation for managing network infrastructure. It features a dedicated rear support bar that assists in cable management, ensuring that bulk cables are organized efficiently and remain secure within the rack environment. With its 48-port capacity, this panel is designed to maximize space while maintaining a clean and orderly server setup.

Advantages

This patch panel offers significant benefits for network administrators looking to optimize their rack space. The inclusion of a rear cable management support bar reduces strain on individual connections and keeps cabling tidy, which improves airflow and accessibility. The pre-numbered ports combined with designated write-on areas simplify the identification of network runs, significantly reducing maintenance time. Its durable metal construction ensures long-term reliability, while the snap-in design facilitates quick and straightforward installation of keystone modules.

Suitable for

• Organizing network cables in 19-inch server racks
• High-density data center environments
• Structured cabling systems in office buildings
• Home server setups requiring professional cable management

When it may not be suitable

This patch panel is specifically designed for slim-type keystone jacks. It is not compatible with standard-sized or bulky keystone modules, which may prevent proper installation. Additionally, it is intended exclusively for 19-inch rack mounting and will not fit into smaller or non-standard enclosures.

Key specifications

• Form factor: 1U rack-mountable
• Capacity: 48 ports
• Material: Durable metal
• Dimensions: 444 mm width, 44.2 mm height, 92.7 mm depth
• Compatibility: Slim-type keystone jacks
• Features: Integrated rear cable management support bar, pre-numbered ports, write-on areas

How to use

To install the patch panel, secure it to the front rails of your 19-inch rack using appropriate mounting screws. Once mounted, attach the rear support bar to the back of the panel to prepare for cable routing. Insert your slim-type keystone jacks into the designated slots until they snap into place. Route your network cables through the rear support bar to ensure they are properly anchored and organized before connecting them to the keystone jacks. Use the write-on areas to label each port for future reference and easy troubleshooting.

What to consider before purchase

• Ensure your rack is a standard 19-inch width
• Verify that your keystone jacks are of the slim-type variety
• Check available rack space to confirm 1U clearance
• Confirm that your cable management needs align with the rear support bar design

Usage recommendations: For optimal performance and organization, always use cable ties to secure bulk cables to the rear support bar. This prevents accidental disconnection and maintains a clean, professional appearance within your server rack.
