Patch Panel LogiLink NK4052

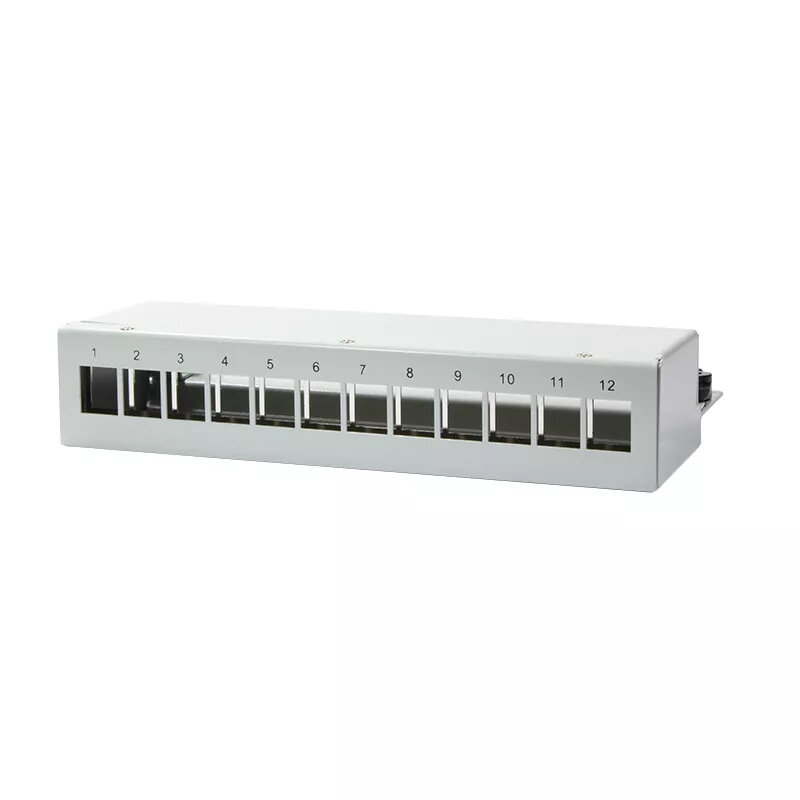

The LogiLink NK4052 is a shielded keystone patch panel designed for modular Cat.6A 10GE cabling. Its metal housing with an additional shielding plate provides protection against electromagnetic interference, and the compact unit can be placed on any table or mounted to a wall. The panel accepts narrow keystone modules, such as the LogiLink Cat.6A Keystone Jack NK4000, and features a rear strain relief for high stability. When combined with LogiLink DIN rail brackets (MP0049), the NK4052 can also be mounted on a standard 35 mm DIN rail. Dimensions: 221 mm x 113 mm x 44.5 mm.

Advantages

The shielded metal housing and additional shielding plate improve signal integrity for Cat.6A 10 Gigabit Ethernet installations. Compatibility with narrow keystone modules allows flexible module selection and straightforward upgrades. Rear strain relief enhances cable stability and reduces stress on terminations. The unit's form factor supports table or wall placement and, with optional DIN rail brackets, standard DIN rail mounting.

Suitable for

• Structured Cat.6A 10GE network terminations
• Small server rooms and network cabinets
• Wall- or table-mounted patching points
• DIN rail installations when used with MP0049 brackets

Key specifications

• Model: LogiLink NK4052
• Supported standard: Cat.6A, 10 Gigabit Ethernet
• Housing: Shielded metal with additional shielding plate
• Compatible modules: Narrow keystone jacks (e.g., NK4000)
• Mounting options: Table, wall, or 35 mm DIN rail (with MP0049 brackets)
• Dimensions: 221 mm x 113 mm x 44.5 mm
• Brand: LOGILINK
• MPN: NK4052
• EAN: 4052792051650

How to use

Install compatible narrow keystone modules into the panel's keystone openings following the module manufacturer's instructions. Route Cat.6A cables to the rear of the panel and secure them using the integrated strain relief to prevent movement and reduce stress on terminations. Place the unit on a flat surface or attach it to a wall using appropriate fasteners. For DIN rail mounting, attach LogiLink DIN rail brackets MP0049 to the panel and clip the assembly onto a standard 35 mm DIN rail.

Usage recommendations

Use certified Cat.6A cables and compatible shielded keystone modules to maintain full 10GE performance. Ensure proper grounding of the shielded housing according to local installation standards and observe bend radius and cable management best practices to preserve signal quality.
