RJ-45 Socket Outlet LogiLink NP0023

Name: RJ-45 Socket Outlet LogiLink NP0023 NP0023
Brand: LOGILINK
SKU: 680549
Price: 9.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

RJ-45 Socket Outlet LogiLink NP0023 Photo 3

RJ-45 Socket Outlet LogiLink NP0023 Photo 4

RJ-45 Socket Outlet LogiLink NP0023 Photo 5

RJ-45 Socket Outlet LogiLink NP0023 Photo 6

RJ-45 Socket Outlet LogiLink NP0023 Photo 7

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The LogiLink NP0023 is a metallic RJ-45 socket outlet designed for STP cables. It features ISO/IEC 11801 and TIA/EIA 568B.2-1 certification, ensuring high-quality performance. With dimensions of 80mm x 80mm x 38.8mm, it is compact and easy to install. The sleek metallic and white design fits well in any environment, making it a reliable choice for networking needs.

Available for order: 500 pcs.

Warranty: 2 Years

SKU: 680549

Manufacturer: LOGILINK

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

15.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

20.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

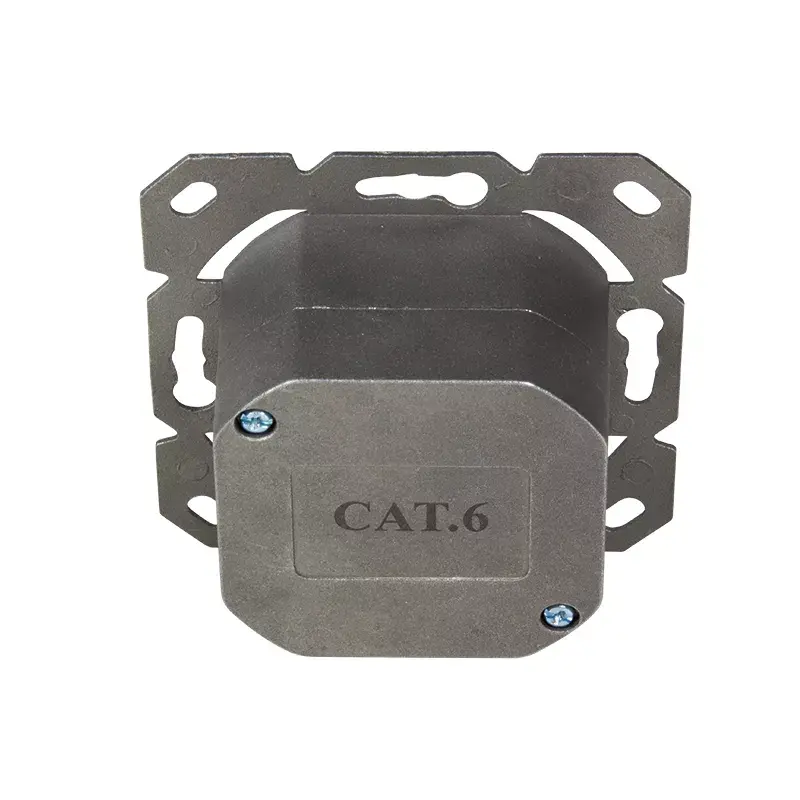

The LogiLink NP0023 is a Cat.6 shielded RJ-45 wall outlet with an angled zinc die-cast housing, designed for transmission of digital and analogue voice, data and video up to 1 Gigabit Ethernet. Certified to ISO/IEC 11801 and TIA/EIA 568B.2-1 standards, the metallic RJ-45 socket is suitable for STP cables and supports both Cat.5e and Cat.6 installations. The compact dimensions (80 x 80 x 38.8 mm) and white/metallic finish allow easy integration into residential and commercial environments, and the outlet is compatible with Power over Ethernet (PoE). When paired with an optional back box, the face plate converts into a Cat.6 surface-mount box outlet.

Advantages

The shielded construction and zinc die-cast housing provide improved electromagnetic protection and mechanical durability. Compliance with ISO/IEC 11801 and TIA/EIA 568B.2-1 ensures reliable performance for up to 1GbE. The angled design simplifies cable routing in confined spaces and the support for PoE enables power delivery to compatible devices. Compact size and neutral white/metallic colouring make it suitable for diverse installation settings.

Suitable for

Structured cabling in offices and homes using Cat.5e or Cat.6
Network connections for IP phones, access points and IP cameras (PoE-capable)
Retrofit or new installations where a surface-mount option is needed (with optional back box)

Key specifications

Product: RJ-45 Socket Outlet LogiLink NP0023
Category: Cat.6 shielded, angled outlet
Cable type: STP (shielded twisted pair)
Standards: ISO/IEC 11801, TIA/EIA 568B.2-1
Data rate: up to 1 Gigabit Ethernet
PoE: supported
Dimensions: 80 mm x 80 mm x 38.8 mm
Colour: White, Metallic
Brand: LOGILINK
MPN: NP0023
EAN: 4052792027297

How to use

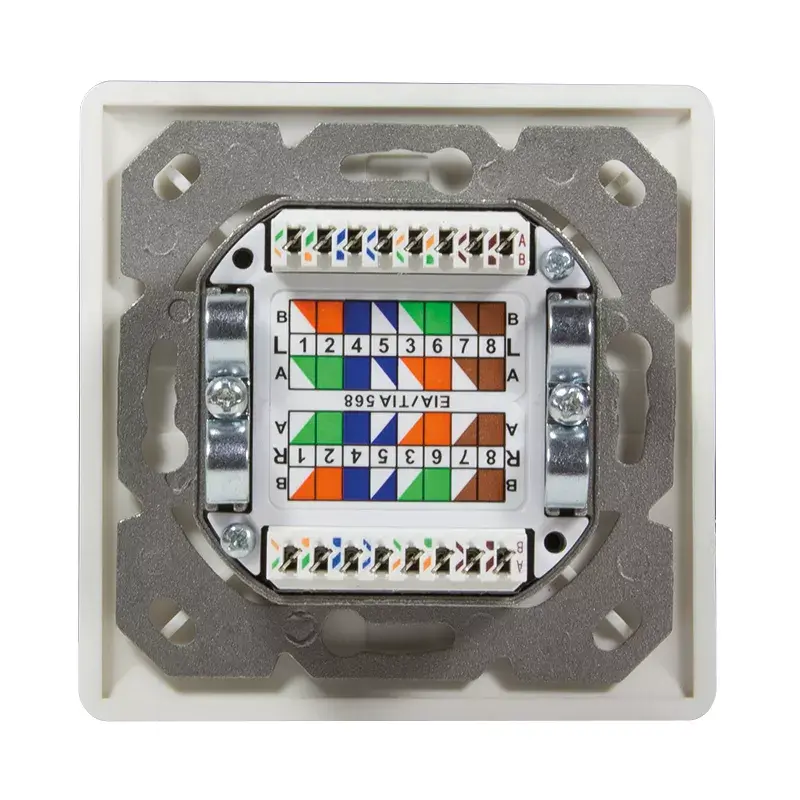

Mount the outlet onto a flush or, when using the optional back box, a surface-mounted enclosure. Terminate the STP cable pairs to the RJ-45 connector following the TIA/EIA 568B wiring scheme and ensure the cable shield is properly connected to the outlet’s grounding point to maintain shielding performance. Fix the face plate to the wall box, then insert and secure the connector. Verify network link and performance up to 1GbE using appropriate testing tools.

Usage recommendations

To preserve shielding effectiveness and ensure the best network performance, maintain continuous cable shielding from patch panel to outlet and ground the outlet housing. Use the TIA/EIA 568B wiring standard for consistent terminations and test the link after installation. For surface mounting, use the manufacturer’s compatible back box accessory.

Specifications

Product colour:: White, Metallic

All features

Design

Certification:: ISO/IEC 11801, TIA/EIA 568B.2-1
Product colour:: White, Metallic
Frame:: Yes

Logistics data

Harmonized System (HS) code:: 85366990

Features

Cable type:: STP
Sockets quantity:: 2
Socket type:: RJ-45
Networking cable category:: 6

Packaging data

Package weight:: 250 g
Package depth:: 80 mm
Package height:: 40 mm
Package width:: 80 mm

Weight & dimensions

Height:: 38.8 mm
Width:: 80 mm
Depth:: 80 mm

Technical details

Sustainability certificates:: RoHS

Hide Show all

Instructions

mmo_26061545_1580683834_2796_11282.pdf

Description

Instructions

mmo_26061545_1580683834_2796_11282.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the RJ-45 Socket Outlet LogiLink NP0023 cost, and is it available for purchase?

The price is 9.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 500 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 15.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All LOGILINK products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized LOGILINK service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for RJ-45 Socket Outlet LogiLink NP0023?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
