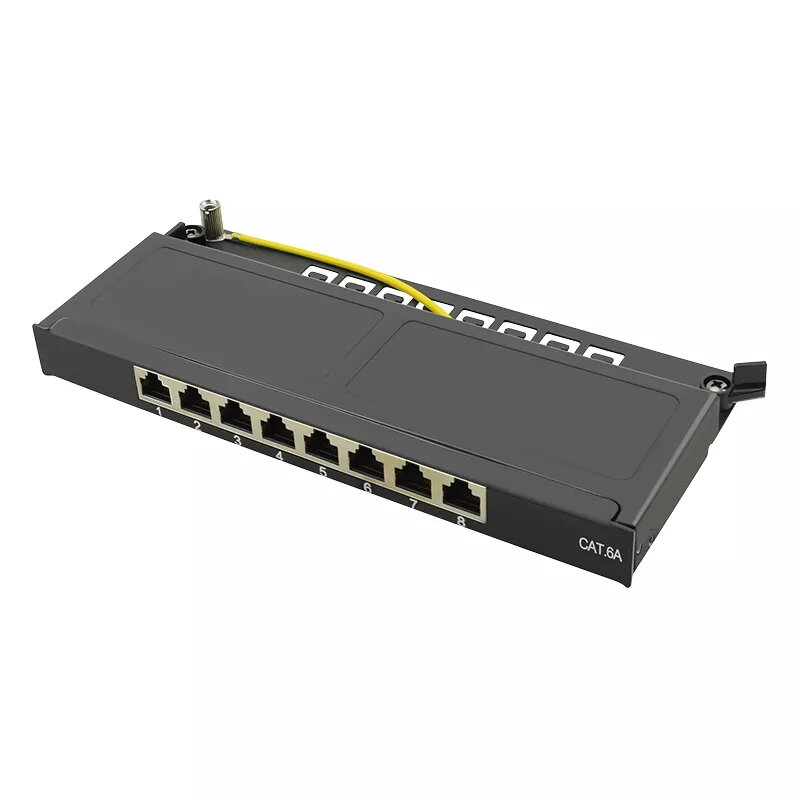

Patch Panel LogiLink NP0064B

The LogiLink NP0064B is a high-performance 0.5U patch panel engineered to support demanding 10 Gigabit Ethernet network environments. This compact distribution solution is designed for efficient cable management, providing a reliable interface for digital and analogue voice, video, and data signals. Constructed from robust steel with a sleek black finish, it is built to withstand the rigors of professional rack-mount installations while maintaining signal integrity for high-speed connectivity.

Advantages

This patch panel offers a space-saving design that occupies only half a rack unit, making it an excellent choice for environments where rack space is at a premium. Its compatibility with Cat6a cabling ensures that it meets the requirements for Class EA performance, supporting frequencies up to 500 MHz. The durable steel construction provides excellent shielding and physical protection for your connections, while the support for Power over Ethernet (PoE and PoE+) adds versatility for powering network devices directly through the data infrastructure.

Suitable for

• 10 Gigabit Ethernet network infrastructures
• Digital and analogue voice and video signal transmission
• PoE and PoE+ powered device installations
• Small to medium-sized server racks or wall-mount enclosures

When it may not be suitable

This patch panel may not be the ideal choice for large-scale enterprise data centers requiring high-density port counts, as it is limited to 8 ports. Additionally, it is not designed for outdoor environments or areas with high humidity unless housed within a protected, climate-controlled cabinet.

Key specifications

• Port count: 8 ports
• Form factor: 0.5U rack-mountable
• Connector type: RJ-45
• Cable compatibility: Cat6a
• Performance class: Class E (250 MHz) and Class EA (500 MHz)
• Material: Durable steel
• Color: Black

How to use

To install the patch panel, secure it into your 19-inch rack or wall-mount bracket using standard mounting hardware. Terminate your Cat6a installation cables into the rear of the panel according to the TIA/EIA wiring standards. Once the cables are securely terminated and tested for continuity, connect your patch cords from the front RJ-45 ports to your network switches or other active equipment. Ensure that all cables are properly strain-relieved to maintain long-term connection stability.

What to consider before purchase

• Verify that your rack or enclosure has sufficient depth for the panel and cable management.
• Ensure that your existing cabling infrastructure is compatible with Cat6a standards to achieve maximum performance.
• Confirm that the 8-port capacity meets your current and near-future connectivity requirements.

Usage recommendations: For optimal performance, always use high-quality shielded Cat6a patch cords and ensure that the panel is properly grounded within the rack system to minimize electromagnetic interference.
