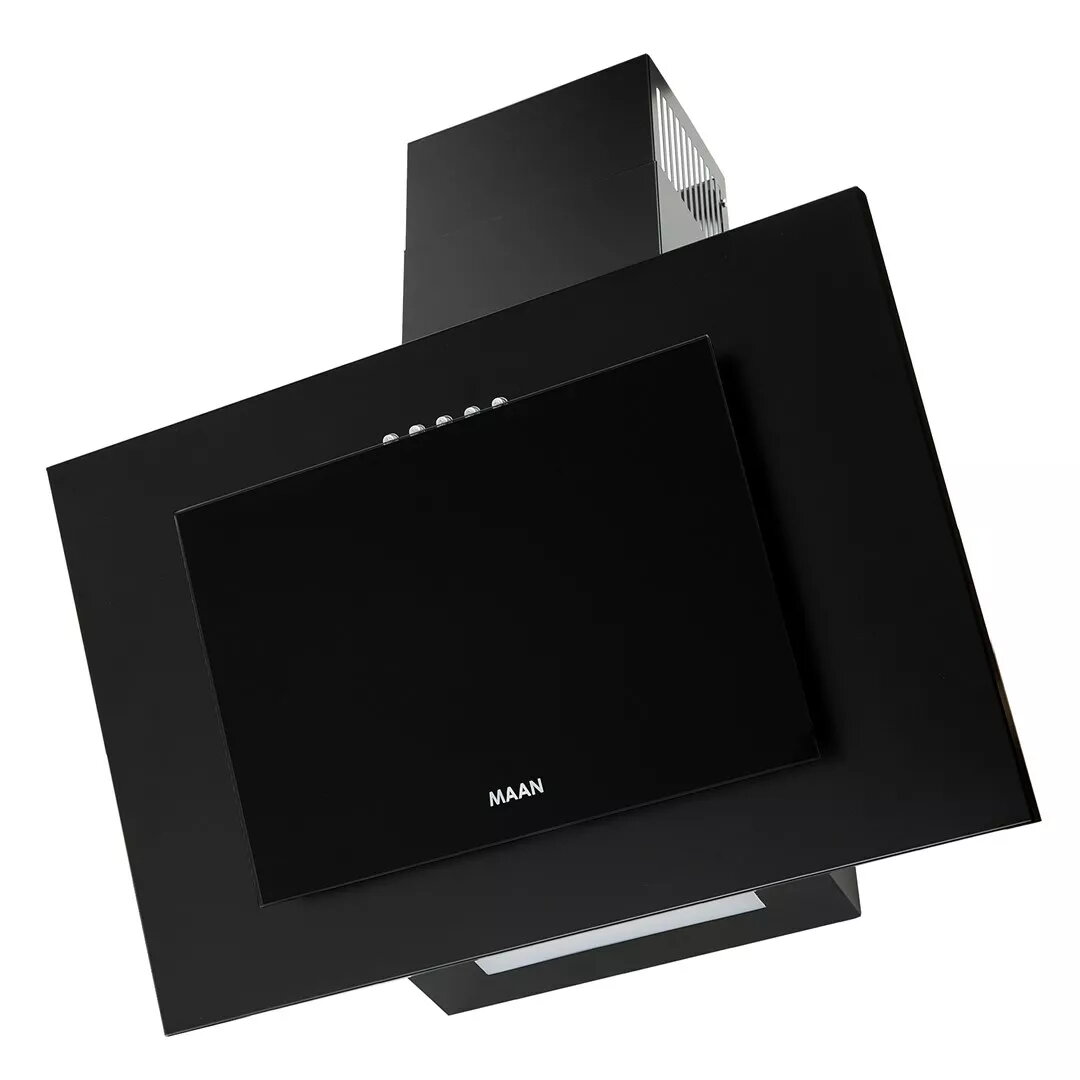

Canopy Extractor MAAN Vertical P 2 50, 310 m³/h, Charcoal Filter, 55 dB, 500 mm

Canopy extractor MAAN Vertical P 2 50 is a 500 mm wide kitchen hood designed for domestic kitchens. It offers a maximum extraction power of 310 m³/h and supports both ducted and recirculating installations, the latter using the supplied charcoal filter. The unit includes an integrated motor, aluminium washable grease filter and a single 5 W bulb positioned at the rear for illumination.

Advantages

The hood provides three fan speeds with button controls and a compact 500 mm width suitable for small to medium kitchens. Its washable aluminium grease filter reduces maintenance costs, while the included motor and charcoal filter allow flexible installation as either ducted or recirculating. The lighting efficiency is rated A and annual energy consumption is 34 kWh.

Suitable for

• Small to medium domestic kitchens
• Spaces requiring a 500 mm wide canopy extractor
• Installations where recirculation with a charcoal filter is needed
• Users who prefer simple button controls and selectable speeds

Key specifications

• Width: 500 mm
• Maximum extraction power: 310 m³/h
• Noise level: 49 dB (low) — 62 dB (high)
• Number of speeds: 3
• Lighting: 1 × 5 W bulb, rear position
• Grease filter: Washable aluminium
• Type of extraction: Ducted or recirculating with charcoal filter
• Motor: Included
• Annual energy consumption: 34 kWh
• Energy efficiency class: C

How to use

Install the canopy extractor according to the supplied user manual and safety instructions; do not install without reading the instructions. Choose ducted or recirculating configuration before fitting: for recirculation, fit the charcoal filter in the designated slot. Connect the hood to a suitable power supply, use the button controls to select one of the three speeds, and replace or clean the washable aluminium grease filter regularly. Replace the bulb with a compatible 5 W lamp if necessary.

Использование и уход

For optimal performance, clean the grease filter periodically and replace the charcoal filter as recommended by the manufacturer.
