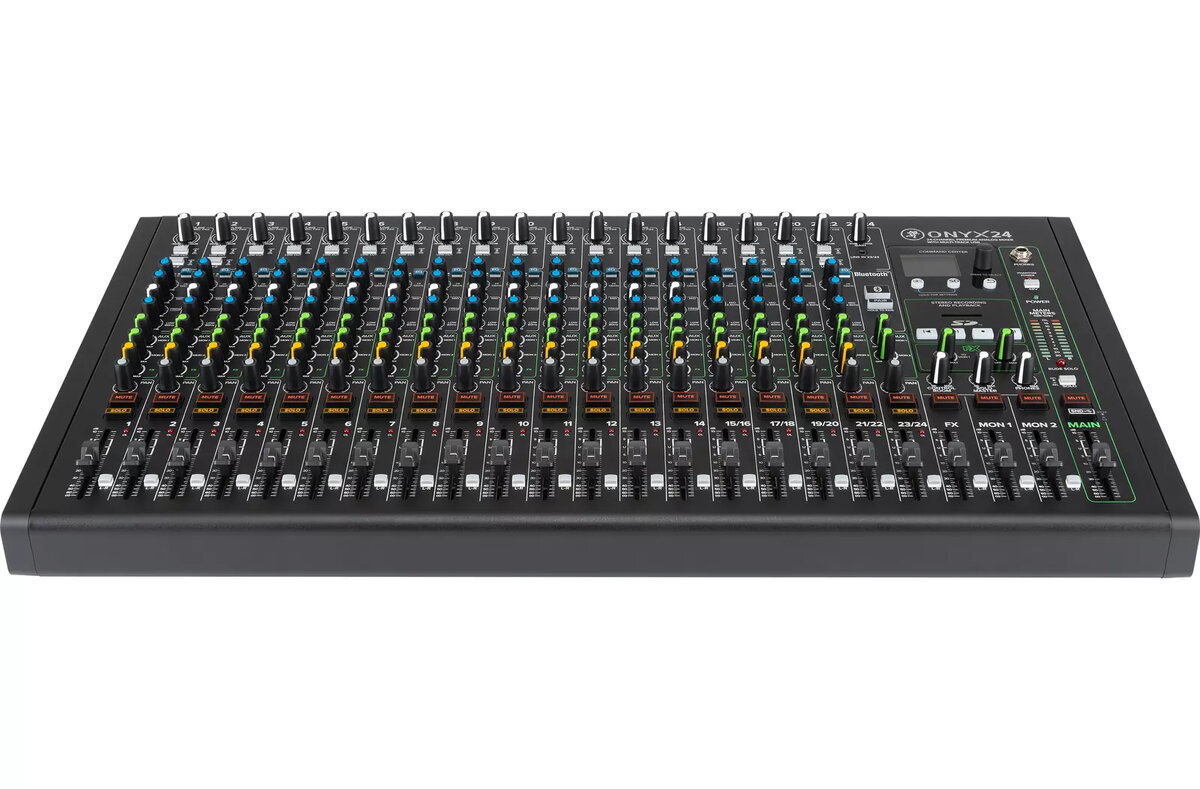

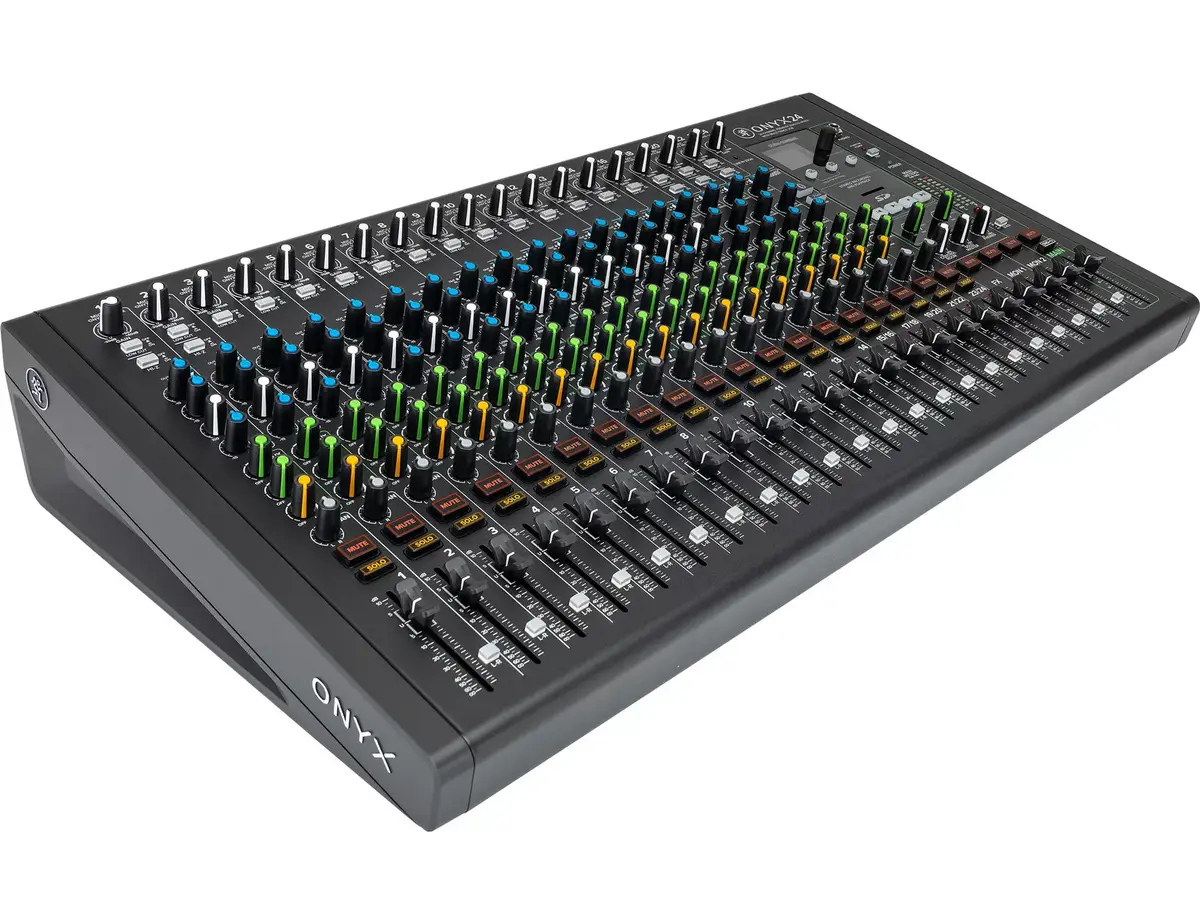

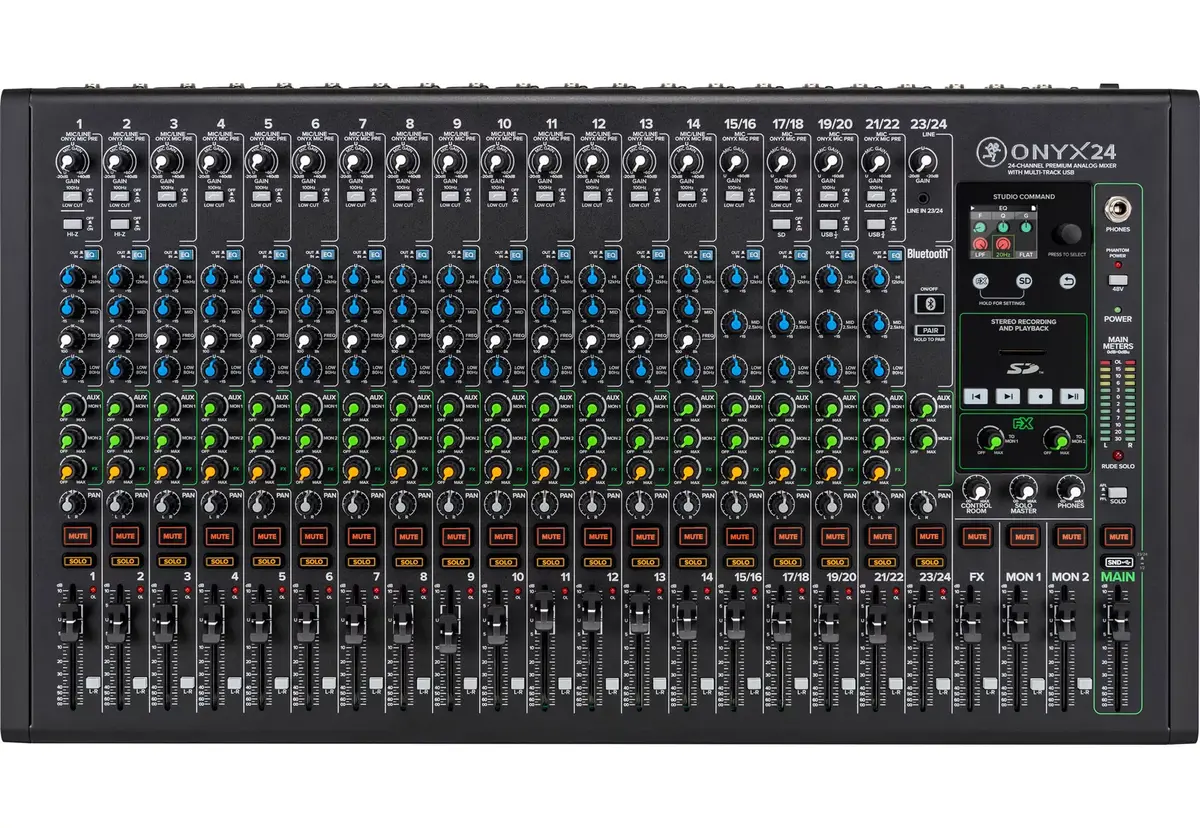

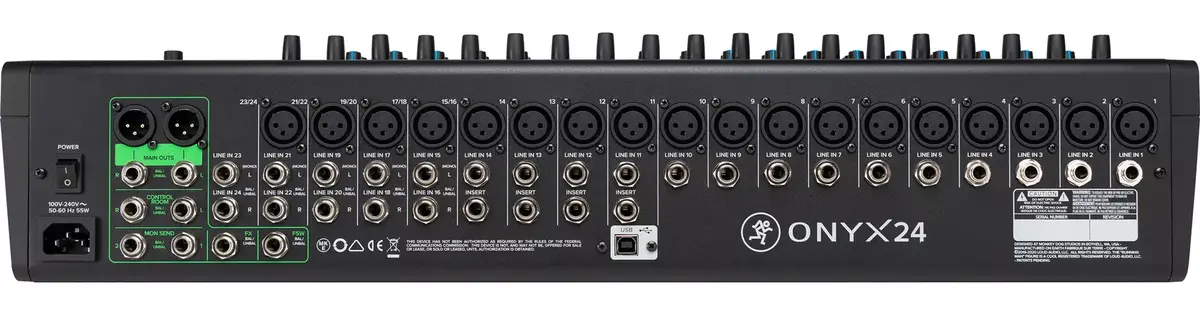

Mixer Mackie ONYX 24 18 channels 20 - 30000 Hz Black

The Mackie ONYX 24 is a professional 24-channel mixer with 18 Onyx microphone preamps, Perkins "British Style" 3-band EQ, built-in high-resolution FX and multitrack recording capability up to 24-bit/96 kHz via USB. Designed for studio, theatre, live sound and broadcast use, the ONYX 24 combines a steel chassis, QuickGrip side handles and sealed rotary controls for reliable road-ready performance. Frequency response is 20–30,000 Hz, microphone input impedance is 3.3 kΩ and typical power consumption is 55 W. It supports AC 100–240 V operation and offers the option to record a stereo mix directly to SD card.

Advantages

The mixer’s 18 low-noise Onyx mic preamps deliver up to 60 dB of clean gain for clear, detailed capture. The Perkins 3-band "British Style" EQ provides musical, narrow-band control with ±15 dB of adjustment and minimal phase shift for precise tonal shaping. Integrated 24-bit/96 kHz USB multitrack recording lets you capture high-resolution sessions to a DAW, while an internal FX processor supplies a variety of professional effects and a dedicated EQ for mix shaping. Rugged construction, QuickGrip side handles and sealed knobs ensure durability and ease of transport.

Suitable for

• Studio multitrack recording and production
• Live sound for bands, theatres and houses of worship
• Broadcast and podcast production
• Mobile engineers and touring setups requiring a road-ready console

Key specifications

• Channels: 24
• Microphone preamps: 18 Onyx mic preamps, 60 dB gain
• Frequency response: 20–30,000 Hz
• Mic input impedance: 3.3 kΩ
• Recording resolution: up to 24-bit / 96 kHz via USB
• Power consumption: typical 55 W; AC 100–240 V
• Additional features: Perkins 3-band EQ, built-in FX, SD stereo mix recording, QuickGrip handles, steel chassis
• Brand / MPN / EAN: Mackie / ONYX24 / 2000000652931

How to use

Connect microphones and line sources to the appropriate inputs, set gain using the Onyx preamp controls and use the Perkins EQ to shape each channel’s tone. Route channels to main stereo output or to individual USB tracks for multitrack recording to your DAW at up to 24-bit/96 kHz. Apply built-in FX from the FX section and adjust send/return levels as needed. For a simple stereo capture, select the SD record option to write the main mix directly to an SD card. Use the QuickGrip handles when transporting the mixer; ensure proper mains voltage (100–240 V) before powering on.

Usage recommendations

For optimal recording quality, set preamp gain so peaks sit below clipping while maintaining a healthy signal-to-noise ratio, use the Perkins EQ sparingly to preserve natural sound, and monitor at mix reference levels. When touring, secure the mixer in a road case and avoid exposing sealed knobs to extreme impact.
