HDMI modular wall socket MACLEAN MCE720B — recessed HDMI connection point

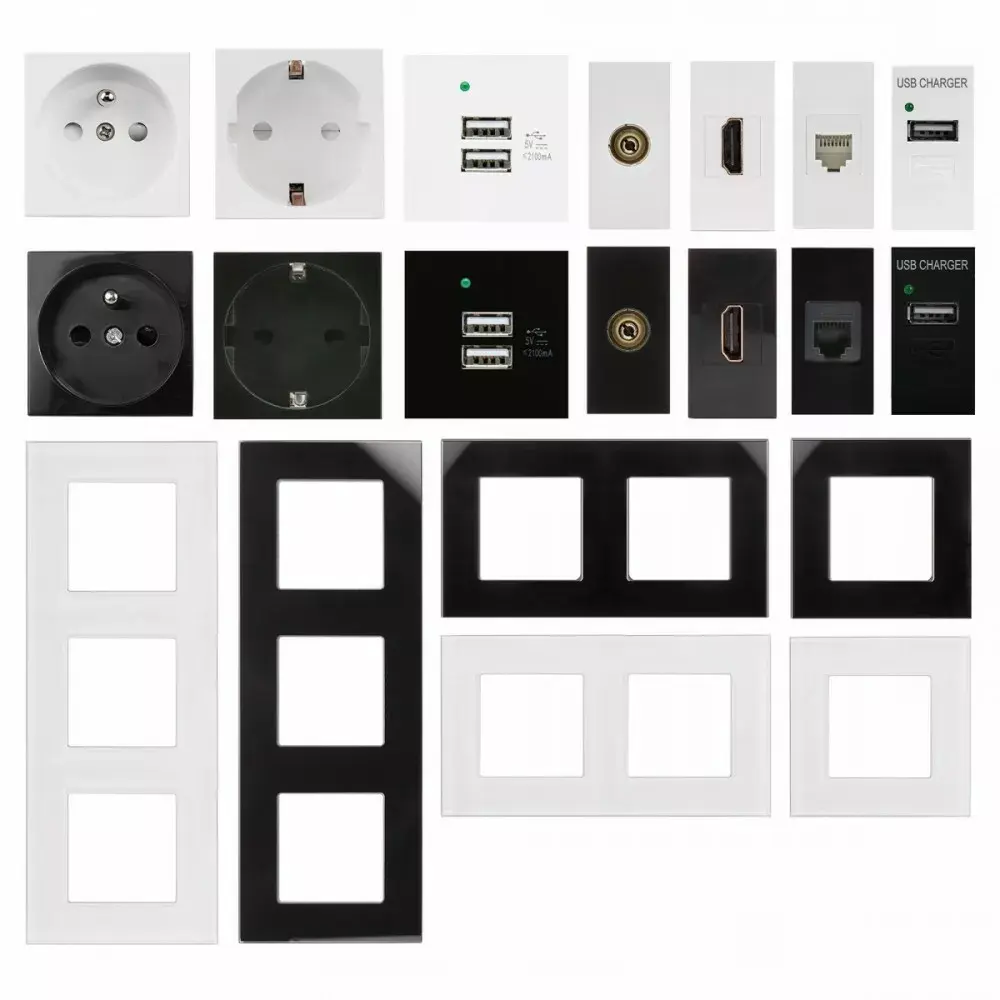

MACLEAN MCE720B is a modular HDMI wall socket designed to provide a recessed, fixed HDMI connection point for wall plates and installation panels. The compact module delivers a standard HDMI interface in a form factor intended for AV installations, conference rooms, home theaters and meeting spaces where a tidy, low-profile HDMI outlet is required. The product is compatible with modular faceplates and mounting frames that accept standard keystone-style modules.

Advantages

The recessed design reduces cable strain and protects the connector from accidental damage while maintaining a neat appearance. Its modular format allows easy integration into multi-gang wall plates and structured cabling outlets. The standard HDMI interface ensures compatibility with common sources and displays without requiring adapters for typical HDMI cables. The module's compact dimensions help save space behind the wall plate, facilitating installation in shallow back boxes and mounting panels.

Suitable for

• Audio-visual installations in conference rooms and meeting spaces
• Home theater and living-room AV setups
• Classroom and lecture-hall AV connections
• Modular wall plate assemblies and structured cabling outlets

Key specifications

• Interface: Standard HDMI female connector
• Form factor: Modular keystone-style module for recessed wall plates
• Mounting: Designed for installation in compatible wall plates and panels
• Profile: Low-profile/recessed connection point to reduce cable protrusion
• Compatibility: Works with standard HDMI cables and typical AV source/display devices

How to use

Install the module into a compatible modular wall plate or mounting frame following the wall plate manufacturer's instructions. Route an HDMI cable or pigtail through the back of the wall box and terminate to the module's rear connection as allocated by your installation method. After securing the module in the faceplate, connect a standard HDMI cable between the wall-mounted socket and the display or source device. Verify signal transmission and secure all cables to prevent strain on the connector.

Usage recommendations

Use certified HDMI cables appropriate for the required resolution and signal type (HDMI 1.4, 2.0, 2.1 as needed). Avoid excessive bending or pulling of cables at the recessed socket and use strain relief in the installation to prolong connector life and maintain signal integrity.
