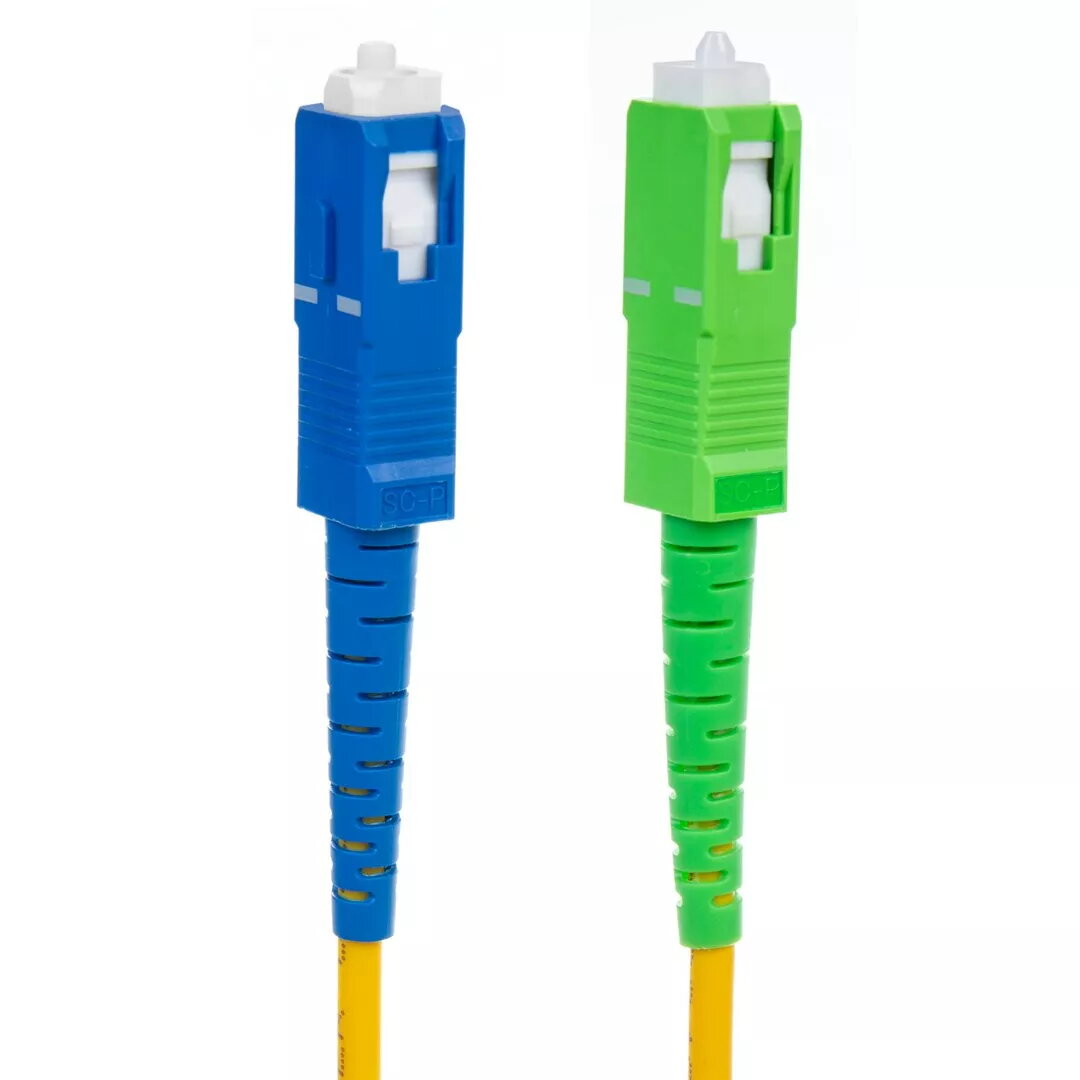

Fiber optic patch cord MACLEAN MCTV-403 SC/APC to SC/UPC Single‑Mode 9/125 G657A2 LSZH Simplex 5m

MACLEAN MCTV-403 is a single-mode fiber optic patch cord with SC/APC to SC/UPC connectors, designed for low-loss point-to-point connections in telecom, FTTH and data centre environments. The cable uses 9/125 µm core/cladding single-mode G.657.A2 bend-insensitive fiber, housed in a LSZH (low smoke zero halogen) jacket and terminated in a simplex configuration at 5 m length. This combination delivers predictable optical performance, improved handling in tight bends and reduced risk from smoke and toxic gases in enclosed spaces.

Advantages

The SC/APC to SC/UPC connector pair provides stable mating with low back reflection and insertion loss suitable for single-mode networks. G.657.A2 bend-insensitive fiber minimises attenuation in tight-radius installations, allowing flexible routing through cabinets, conduit and trunking. The LSZH outer jacket reduces harmful emissions in case of fire and is compliant with installations where halogen-free materials are required. Simplex construction keeps individual link runs compact and easy to identify.

Suitable for

• FTTH drop and subscriber connections
• Interconnections between patch panels and active equipment in data centres
• Telecom backbone and horizontal cabling in premises
• Optical link testing and temporary fibre runs

Key specifications

• Fiber type: single-mode, 9/125 µm
• Optical fibre category: G.657.A2 (bend-insensitive)
• Connector A: SC/APC
• Connector B: SC/UPC
• Configuration: simplex
• Jacket material: LSZH (low smoke zero halogen)
• Length: 5 m

How to use

Inspect connector endfaces for cleanliness before connecting and clean with appropriate fibre cleaning tools if necessary. Align and insert the SC/APC and SC/UPC connectors into their respective gendered adapters or ports until a secure click is felt; avoid twisting the connectors during mating. Route the 5 m simplex cable through trays or conduits ensuring bend radii comply with G.657.A2 recommendations to preserve optical performance. When disconnecting, grip the connector body and pull straight out to avoid stress on the fibre.

Usage recommendations

Use dust caps on unused connectors to prevent contamination, perform endface inspection regularly in critical links, and avoid repeated sharp bends or crushing. For installations in risers, enclosures or public buildings where low smoke emissions are required, select LSZH-laid routes and secure the cable with appropriate fasteners to prevent movement and stress.
