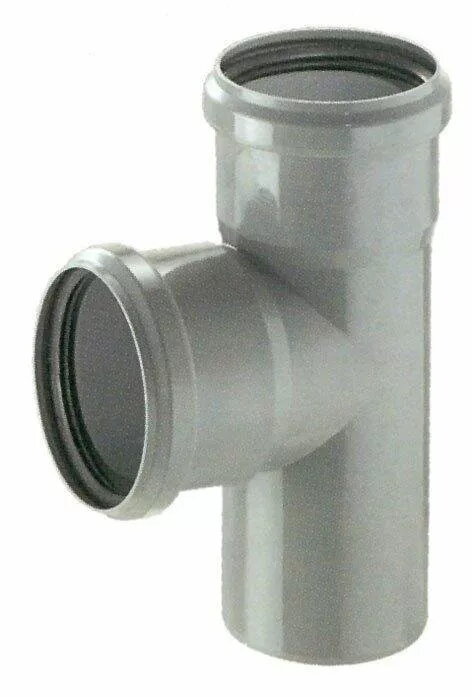

Internal drainage fitting MAGNAPLAST HETA 50 mm 87°

MAGNAPLAST HETA 50 mm 87° internal drainage fitting is a compact 50 mm diameter connector designed to change the direction of wastewater flow by 87 degrees inside drainage systems. Manufactured for internal plumbing use, the fitting enables tight routing and efficient redirection of drain lines where a near-right-angle turn is required. The component is intended for residential and light commercial drainage installations and integrates with compatible 50 mm drainage pipe systems.

Advantages

The MAGNAPLAST HETA 50 mm 87° offers a space-saving design that facilitates installations in constrained areas while maintaining stable flow characteristics at an 87° angle. Its construction promotes reliable jointing with standard 50 mm drainage pipes and reduces the need for additional adapters when adjusting pipe direction. The smooth internal surface helps minimise flow resistance and accumulation, supporting routine cleaning and maintenance.

Suitable for

• Redirecting internal drainage runs in residential buildings
• Compact pipe routing in bathrooms, kitchens, and utility rooms
• Light commercial drainage systems requiring near-right-angle turns
• Retrofit or renovation projects where space is limited

Key specifications

• Nominal diameter: 50 mm
• Angle of deflection: 87°
• Application: internal drainage and wastewater systems
• Compatible connection: 50 mm drainage pipe systems
• Design: compact, near-right-angle connector for tight routing

How to use

Prepare the mating pipe ends by ensuring they are cut square and free of debris. Apply the manufacturer-recommended sealing method for the chosen pipe system (push-fit socket, solvent weld, or rubber seal) and insert the pipe into the fitting to the required engagement depth. Verify correct alignment to achieve the intended 87° change in direction and secure the joint following standard plumbing practice. After installation, perform a water-tightness test of the drainage run and inspect joints for any leaks.

Usage recommendations

Use compatible 50 mm drainage pipes and fittings, confirm the sealing method matches the pipe material, and avoid excessive mechanical stress on joints. When routing through confined spaces, check clearances and support the pipe run to prevent sagging. Follow local plumbing codes and recommended installation practices for internal drainage systems.
