header-product Managed L2+ Gigabit Ethernet Switch PLANET IGS-5225-4T2S
297.49 €

Managed L2+ Gigabit Ethernet Switch PLANET IGS-5225-4T2S

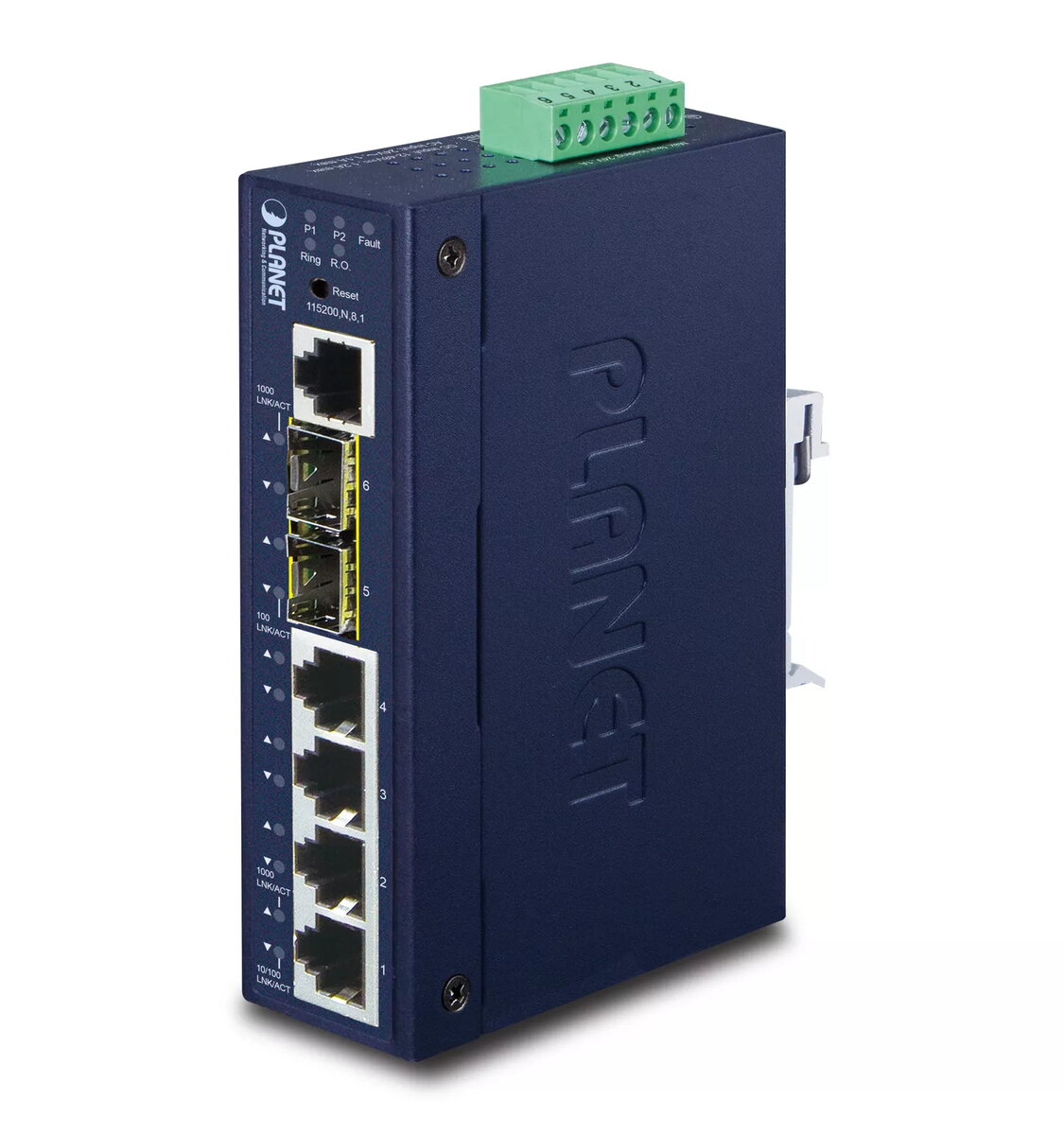

Managed L2+ Switch PLANET IGS-5225-4T2S Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L2+ Gigabit Ethernet Switch PLANET IGS-5225-4T2S

{{email}}
You keep track of price changes

Managed L2+ Gigabit Ethernet Switch PLANET IGS-5225-4T2S

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-5225-4T2S is a managed L2+ Gigabit Ethernet switch with 4 RJ-45 ports, supporting full duplex and a switching capacity of 12 Gbit/s. It features a MAC address table with 8000 entries and complies with various networking standards including IEEE 802.1Q and IEEE 1588v2. Designed for wall mounting, it operates on a 24V DC input, making it a reliable choice for network management.
Available at price 297.49 €: 114 pcs.
Total available for order: 118 pcs.
Warranty: 2 Years
SKU: 689992
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.08.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
18.08.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.71 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
18.08.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 99.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 8.26 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET IGS-5225-4T2S is a compact, fully managed L2+ Gigabit Ethernet switch designed for harsh and space‑limited environments. The unit provides four 10/100/1000 Mbps RJ-45 ports, two dual-speed SFP slots (100/1000X), a redundant power input and an IP30 rugged enclosure. It supports operation from -40 °C to 75 °C, DIN-rail or wall mounting, IPv4/IPv6 management, Layer 3 static routing and a switching capacity suitable for small industrial or enterprise edge deployments.

Advantages

The switch combines industrial-grade thermal tolerance and a compact form factor with managed switching features such as extensive Layer 2 functions, IPv4/IPv6 VLAN routing, and enhanced cybersecurity (SSH/TLS/SSL kernel upgrades, DHCP snooping, IP Source Guard, ARP inspection, 802.1X, RADIUS/TACACS+, SNMPv3). Redundant ring support (G.8032 ERPS), MSTP and redundant power increase network reliability, while SFP flexibility and SFP-DDM diagnostics simplify fiber extension and monitoring.

Suitable for

  • Industrial automation networks and factory floors
  • Small enterprise edge or branch office installations in harsh environments
  • Carrier/telecom edge using IEEE 1588v2 timing
  • Data center access or distribution requiring fiber extension

Key specifications

  • Ports: 4 × 10/100/1000 RJ-45, 2 × 100/1000X SFP
  • Switching capacity: 12 Gbit/s
  • MAC table: 8,000 entries
  • Mounting: DIN-rail or wall
  • Operating temperature: -40 °C to 75 °C
  • Power input: 24 V DC (redundant input supported)
  • Standards: IEEE 802.1Q, 802.1X, 802.1s (MSTP), IEEE 1588v2 and others
  • Weight: 0.456 kg

How to use

Install the IGS-5225-4T2S on a DIN-rail or mount it on a wall in a suitable enclosure. Connect the 24 V DC power sources (use redundant inputs if available) and attach copper or SFP fiber transceivers according to required distance and speed. Configure the switch via the web GUI, console, Telnet/SSH or SNMPv3 to set VLANs, static routes, ring protection (ERPS), ACLs, 802.1X authentication and other management features. Use SFP-DDM readings to verify fiber transceiver status and monitor events via SMTP or SNMP traps for alarms.

Usage recommendations

For reliable operation in critical networks, enable redundant power and ERPS ring protection, configure DHCP Snooping/ARP Inspection and 802.1X for edge authentication, and use SNMPv3 or SSH/TLS for secure remote management. Choose appropriate SFP modules (100BASE-FX or 1000BASE-SX/LX/WDM) to match distance and bandwidth requirements.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
No
Switching capacity: The data transfer capacity of the switch per second.
12 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
4
Switch type: What switch device has, managed or unmanaged.
Managed
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ah, IEEE 1588v2, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u
All features

Logistics data

Harmonized System (HS) code:
85176990

Certificates

Certification:
FCC Part 15 Class A, CE

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.456 kg
Height: The measurement of the product from head to foot or from base to top.
135 mm
Depth: The distance from the front to the back of something.
87 mm
Width: The measurement or extent of something from side to side.
32 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.
29.2 BTU/h
Storage relative humidity (H-H):
5 - 95
Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
No

Power

Power consumption (max): The maximum amount of power used by the device.
8.5 W
DC input voltage:
24
Redundant power supply (RPS) support: Additional power supply which can run a computer if the main power supply fails.
Yes

Design

Wall mountable: The product can be mounted on (attached to ) a wall.
Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP30
DIN rail mounting:
Yes
LED indicators:
Yes
Reset button:
Yes
Housing material: What the casing of the product is made of.
Metal
Product colour: The colour e.g. red, blue, green, black, white.
Blue

Multicast features

Multicast support:
Yes

Security

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
SSL/TLS, SSH, SNMPv3
SSH/SSL support:
Yes
BPDU filtering/protection:
Yes
IP-MAC-Port binding:
Yes
Authentication:
Port-based authentication, MAC-based authentication
IGMP snooping:
Yes
Access Control List (ACL):
Yes

Data transmission

Jumbo frames:
9000
Jumbo frames support:
Yes
Number of queues:
8
Store-and-forward:
Yes
Throughput:
8.9 Mpps
Switching capacity: The data transfer capacity of the switch per second.
12 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries

Network

Number of VLANs:
4094
Virtual LAN features:
Protocol-based VLAN, Tagged VLAN, Private VLAN
VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Yes
Flow control support:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
Spanning tree protocol:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
Port mirroring:
Yes
Copper ethernet cabling technology:
1000BASE-T, 100BASE-T, 10BASE-T
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ah, IEEE 1588v2, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u

Ports & interfaces

Console port:
RJ-45
SFP module slots quantity:
2
Gigabit Ethernet (copper) ports quantity:
4
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
4

Management features

Traffic classification:
Yes
Web-based management: Using a website/web application to manage something.
Yes
Quality of Service (QoS) support:
Yes
Switch layer: A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2+
Switch type: What switch device has, managed or unmanaged.
Managed
