header-product Managed L2+ Gigabit Ethernet Switch PLANET MGSW-24160F
571.99 €

Managed L2+ Gigabit Ethernet Switch PLANET MGSW-24160F

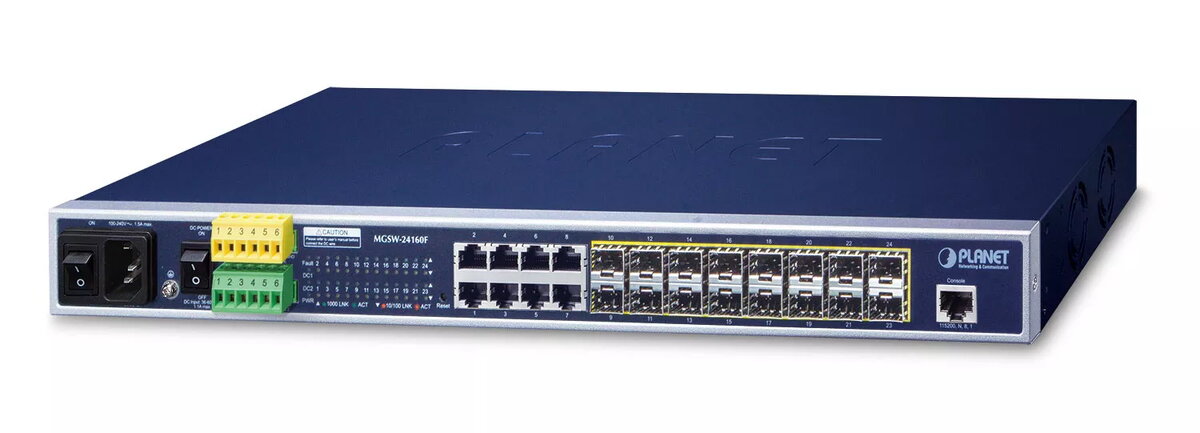

Managed L2+ Gigabit Ethernet Switch PLANET MGSW-24160F Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed L2+ Gigabit Ethernet Switch PLANET MGSW-24160F

{{email}}
You keep track of price changes

Managed L2+ Gigabit Ethernet Switch PLANET MGSW-24160F

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET MGSW-24160F is a managed L2+ Gigabit Ethernet switch with 8 RJ-45 ports supporting Power over Ethernet (PoE). It features a full duplex capability, a MAC address table with 16,000 entries, and a switching capacity of 48 Gbit/s. Compliant with various IEEE networking standards, it is ideal for efficient network management and expansion. The 1U rack-mountable design ensures easy installation in server rooms.
Available at price 571.99 €: 12 pcs.
Total available for order: 51 pcs.
Warranty: 2 Years
SKU: 362892
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
27.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
30.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.70 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
30.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 602.99 €: 9 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET MGSW-24160F is a managed L2+ Gigabit Ethernet switch designed for long-reach networks in enterprises, telecoms, campuses and service providers. It provides 16 dual-speed 100/1000 Mbps SFP fiber ports and 8 10/100/1000 Mbps RJ-45 ports in a rugged 1U rack-mountable case, delivering a non-blocking switch fabric with up to 48 Gbps wire‑speed throughput and operating reliably between 0 and 60 °C. Front access design simplifies wiring and maintenance in cabinet installations.

Advantages

The switch supports flexible fiber extension via 16 mini-GBIC slots that accept 100BASE-FX and 1000BASE-SX/LX SFP modules, covering multimode distances from 550 m to 2 km and single-mode/WDM distances up to 120 km. It includes SFP DDM for real-time transceiver monitoring, AC (100–240 V) and DC (36–60 V) redundant power inputs for continuous operation, digital input/output for external alarm integration, and a fault alarm feature for faster troubleshooting. The MGSW-24160F supports IPv4/IPv6 dual stack and offers Layer 3 IPv4/IPv6 VLAN routing, extensive Layer 2 features, and comprehensive Layer 2–4 ACLs for edge security.

Suitable for

  • Enterprise core and distribution switching
  • Telecom and ISP long‑reach links
  • Campus networks and data center edge
  • FTTx and metro fiber deployments

Key specifications

  • Ports: 16 SFP (100/1000 Mbps dual-speed), 8 RJ-45 (10/100/1000 Mbps)
  • Switching capacity: 48 Gbps
  • MAC address table: 16,000 entries
  • Power: 1× AC 100–240 V, 1× DC 36–60 V (redundant)
  • Environment: 0 °C to 60 °C operating temperature
  • Management: Web, Console, SNMP (supports SNMPv3), SSH, SSL, Telnet
  • Layer 2/Layer 3 features: VLAN, Q-in-Q, private VLAN, MSTP, link aggregation, IPv4/IPv6 VLAN routing
  • Security: ACL (L2–L4), 802.1X, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection

How to use

Install the MGSW-24160F in a standard 1U rack using the front-access orientation for convenient cable routing. Populate the SFP slots with appropriate SFP transceivers selected for required distance and fiber type (multimode or single-mode/WDM). Connect RJ-45 devices to the Gigabit ports and configure management settings via Web GUI, console or SNMP management software. Configure VLANs, link aggregation, QoS and security policies according to network design, and enable redundant power by connecting both AC and DC supplies if required.

Usage recommendations

Use SFP modules that support DDM to allow real-time monitoring of optical parameters. For critical installations enable redundant power and configure the fault alarm plus digital I/O to integrate external alarm systems. Apply IPv6/IPv4 dual-stack and Layer 3 VLAN routing when migrating to IPv6 to avoid replacing existing infrastructure.

Specifications

Basic switching RJ-45 Ethernet ports quantity:
8
Weight:
3 kg
10G support:
No
Switch type:
Managed
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:
Blue
All features

Ports & interfaces

Compatible memory cards:
Not supported
Console port:
RS-232
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8
SFP module slots quantity:
16

Optical fiber

Fiber type:
Multi-mode
Fiber ethernet cabling technology:
1000Base-X
Transmission distance (max):
120 km

Data transmission

MAC address table:
16000 entries
Switching capacity:
48 Gbit/s
Jumbo frames support:
Yes
Number of trunks:
24
Number of queues:
8
Store-and-forward:
Yes
Throughput:
35.6 Mpps
Jumbo frames:
10000

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
255

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Stackable:
Yes
Reset button:
Yes
Number of fans:
2 fan(s)
On/off switch:
Yes

Power

AC input frequency:
50 - 60
AC input voltage:
100 - 240
Power consumption (max):
38 W
Power supply included:
No

Power over Ethernet (PoE)

Power over Ethernet (PoE):
Yes
Power over Ethernet (PoE) ports quantity:
8
Power over Ethernet plus (PoE+) ports quantity:
8

Weight & dimensions

Weight:
3 kg
Height:
44.5 mm
Width:
440 mm
Depth:
200 mm

Management features

MIB support:
RFC 1213 MIB-II, RFC 1493 Bridge MIB, RFC 1643 Ethernet MIB, RFC 2863 Interface MIB, RFC 2665 Ether-Like MIB, RFC 2819 RMON MIB (Group 1, 2, 3 and 9), RFC 2737 Entity MIB, RFC 2618 RADIUS Client MIB, RFC 2863 IF-MIB, RFC 2933 IGMP-STD-MIB, RFC 3411 SNMP-Frameworks-MIB, RFC 4292 IP Forward MIB, RFC 4293 IP MIB, RFC 4836 MAU-MIB, IEEE 802.1X PAE, LLDP
Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
Traffic shaping:
Yes
ARP inspection:
Yes

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
IP routing:
Yes
Auto MDI/MDI-X:
Yes
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
Private VLAN, Protocol-based VLAN, Port-based VLAN

Security

Security algorithms:
SNMP, SSH, SSL/TLS
MAC address filtering:
Yes
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Auto-edge port:
Yes
Admin-edge port:
Yes
IP-MAC-Port binding:
Yes
DHCP features:
DHCP server, DHCP client

Packaging content

Cables included:
RS-232
Quick start guide:
Yes
Rack mount kit:
Yes

Packaging data

AC adapter included:
Yes
Rubber feet:
Yes
Terminal block included:
Yes

Other features

Terminal block port:
Yes

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-10 - 70
Operating temperature (T-T):
0 - 60
Storage relative humidity (H-H):
5 - 95

Logistics data

Harmonized System (HS) code:
85176990
