header-product Managed Switch PLANET IGS-12040MT
500.49 €

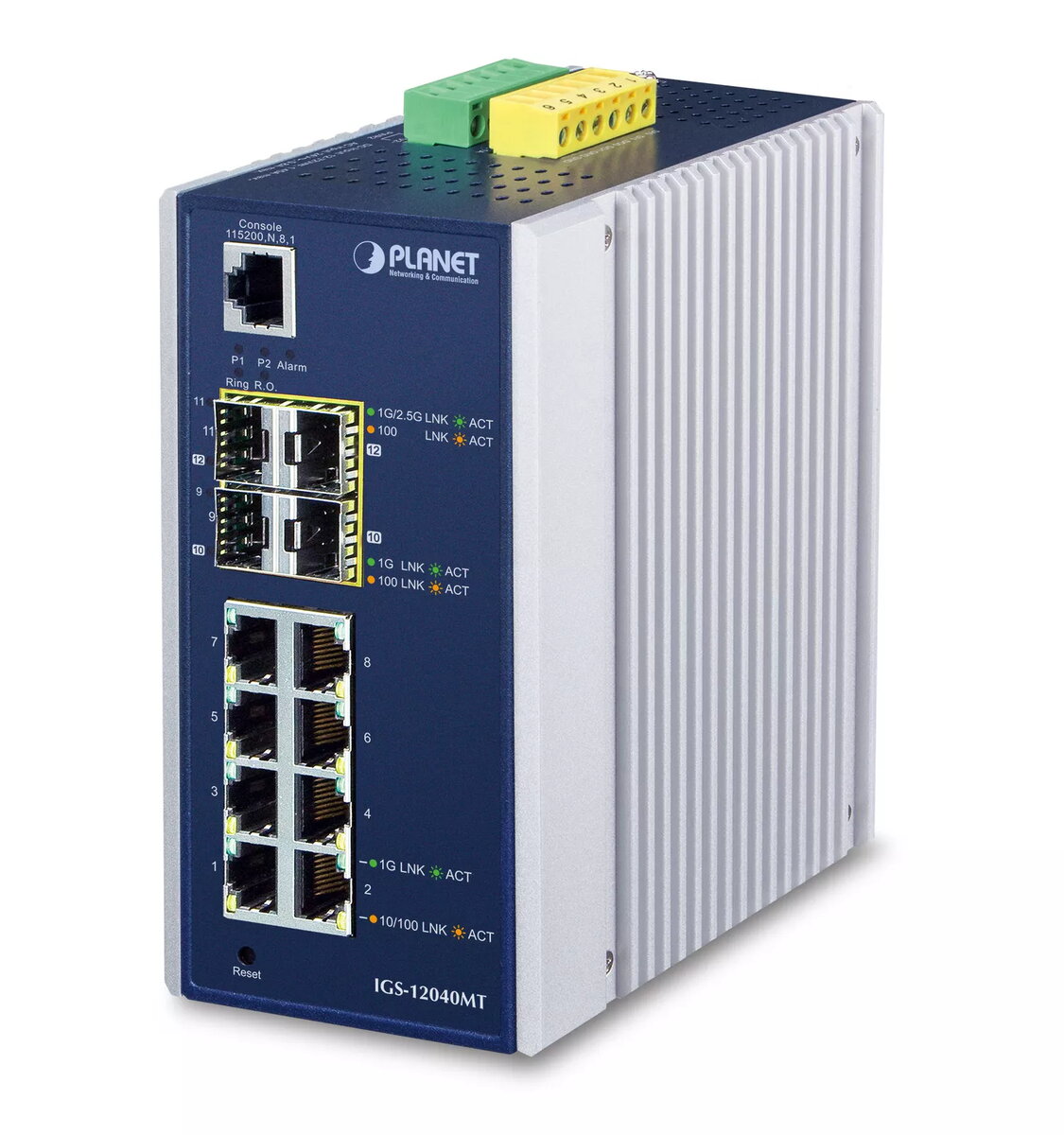

Managed Switch PLANET IGS-12040MT

Managed Switch PLANET IGS-12040MT Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET IGS-12040MT

{{email}}
You keep track of price changes

Managed Switch PLANET IGS-12040MT

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-12040MT is a Managed L2+ Gigabit Ethernet switch featuring 8 Gigabit Ethernet ports (10/100/1000) and a console port. It supports full duplex operation with a switching capacity of 24 Gbit/s and a MAC address table of 8000 entries. Compliant with various networking standards including IEEE 1588v2 and IEEE 802.1Q, it is wall mountable for easy installation. Ideal for enhancing network performance and reliability.
Available at price 500.49 €: 1 pcs.
Total available for order: 8 pcs.
Warranty: 2 Years
SKU: 3107317
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.37 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 166.83 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 13.90 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET IGS-12040MT is a fully-managed L2+ Gigabit Ethernet switch designed for industrial networks. It provides 8 10/100/1000BASE-T copper ports, 4 dual-speed 100/1000BASE-X SFP slots, a console port and redundant power inputs in an IP30 aluminum case. The switch supports IPv4/IPv6 management, Layer 3 static routing, advanced L2/L4 features and operates in harsh environments from -40 to 75 °C. It can be mounted on DIN-rail or wall and is suitable for extending fiber connections and for deployment in surveillance, automation and carrier networks.

Advantages

The IGS-12040MT combines industrial-grade hardware with comprehensive software functions: hardened IP30 casing and wide input voltage support (12–72 V DC or 24 V AC) for reliable operation; enhanced cybersecurity including SSHv2, TLS and SSL; rapid redundant-ring recovery (ITU-T G.8032 ERPS) and MSTP for high availability; Modbus TCP for integration with SCADA/HMI systems; and IEEE 1588 support for precise timing. Additional features include SFP-DDM for transceiver diagnostics, SMTP/SNMP trap alerts, digital input/output for external alarms and multiple management interfaces (Web, CLI/console, SNMPv3).

Suitable for

  • Industrial automation and factory floor networks
  • IP surveillance systems requiring fast ring recovery
  • SCADA/HMI and Modbus TCP integration
  • Carrier and telecom timing applications (IEEE 1588, synchronous Ethernet)
  • Enterprise edge and distribution with fiber extension needs

Key specifications

  • Ports: 8 x 10/100/1000BASE-T, 4 x 100/1000BASE-X SFP
  • Switching capacity: 24 Gbit/s
  • MAC table: 8,000 entries
  • Layer 3: static IPv4/IPv6 VLAN routing
  • Management: Web GUI, console/Telnet, SNMPv3
  • Redundancy: ERPS (G.8032), MSTP (802.1s), redundant power input
  • Environment: IP30 case, operating temperature -40 to 75 °C
  • Power: 12–72 V DC or 24 V AC dual/backup inputs
  • Diagnostics: SFP-DDM, SMTP/SNMP trap, DI/DO alarm

How to use

Install the IGS-12040MT on a DIN-rail or wall mount in a suitable cabinet or enclosure. Insert appropriate SFP transceivers into the 100/1000BASE-X slots for required fiber distance and connect copper links to the Gigabit RJ-45 ports. Configure network settings via the built-in Web GUI for platform-independent setup, or use the console/Telnet CLI for scriptable configuration. For secure remote management, enable SNMPv3 and configure SSH/TLS access. Use Modbus TCP to integrate with SCADA/HMI systems and set up VLANs and static routes to segment traffic among different network zones.

Usage recommendations

For reliable operation in industrial environments, use proper grounding, install redundant power supplies, and choose SFP modules rated for the target fiber distance and temperature range. Configure ERPS or MSTP for ring topologies, enable DHCP snooping, IP Source Guard and Dynamic ARP Inspection for IP-layer protection, and use SNMPv3 or encrypted management protocols to secure switch access.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
10G support:
No
Weight:
1.01 kg
Basic switching RJ-45 Ethernet ports quantity:
8
Networking standards:
IEEE 802.1ag, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 1588v2
Product colour:
Blue, White
All features

Ports & interfaces

Console port:
RJ-45
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8
SFP module slots quantity:
4

Management features

Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
ARP inspection:
Yes

Other features

Terminal block port:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 85
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
22.18 BTU/h

Protocols

Management protocols:
Telnet, SNMP
Supported network protocols:
IPv4 / IPv6

Design

Rack mounting:
No
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Blue, White
Reset button:
Yes
Housing material:
Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
6.5 W
Redundant power supply (RPS) support:
Yes
Power consumption (max):
12 W

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1ag, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ah, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D, IEEE 1588v2
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4095
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 1000BASE-T, 100BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
Protocol-based VLAN, Tagged VLAN, Private VLAN, Stacked VLAN
Half duplex:
Yes

Weight & dimensions

Weight:
1.01 kg
Height:
152 mm
Width:
76 mm
Depth:
107 mm

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
255

Data transmission

MAC address table:
8000 entries
Switching capacity:
24 Gbit/s
Jumbo frames support:
Yes
Number of queues:
8
Throughput:
17.85 Mpps
Number of IP interfaces:
8
Jumbo frames:
9000

Security

Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes

Optical fiber

Fiber ethernet cabling technology:
1000BASE-SX, 1000BASE-LX, 1000BASE‑BX, 100BASE-FX
