header-product Managed Switch PLANET IGS-801M
200.49 €

Managed Switch PLANET IGS-801M

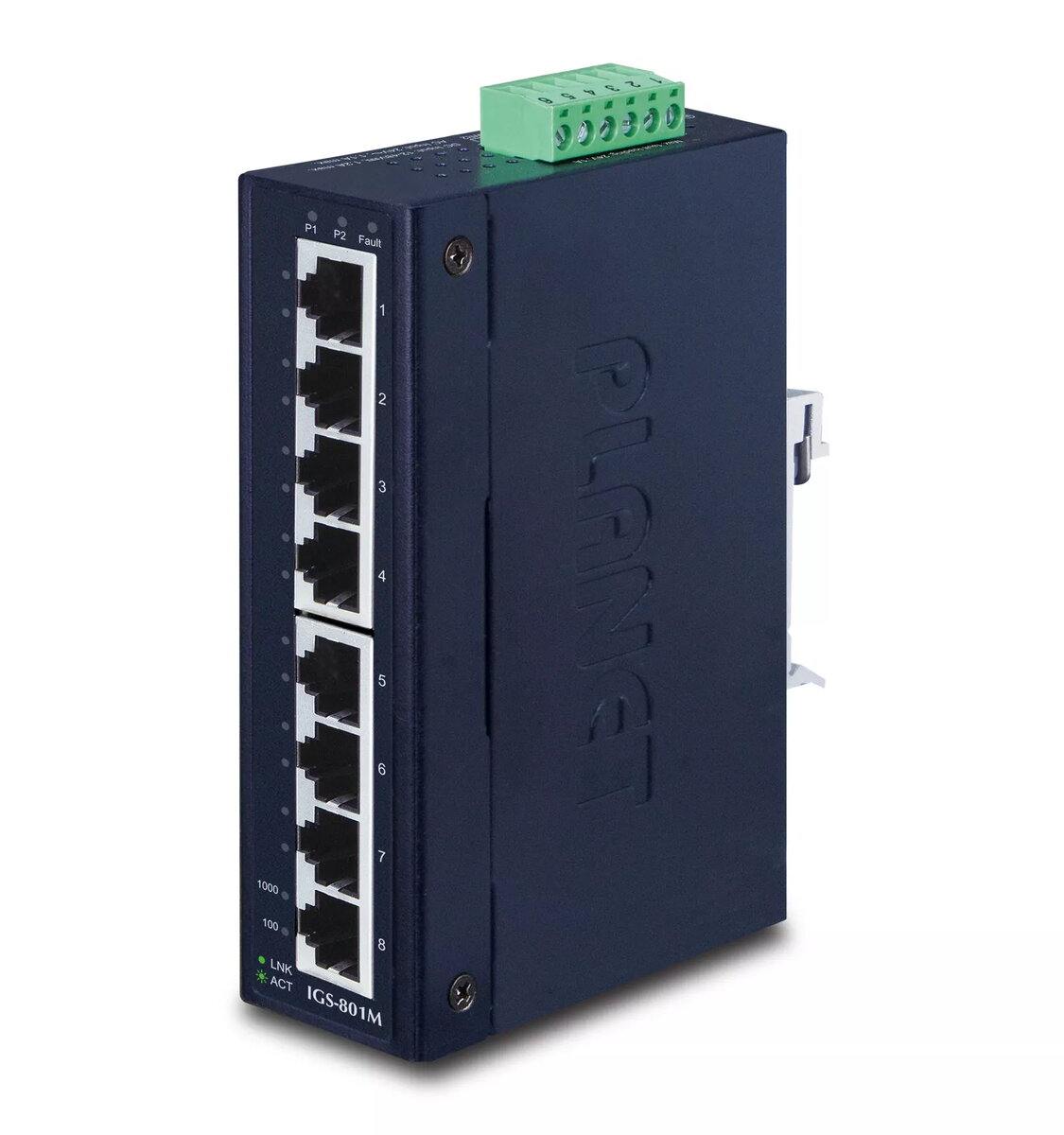

Managed Switch PLANET IGS-801M Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET IGS-801M

{{email}}
You keep track of price changes

Managed Switch PLANET IGS-801M

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-801M is a managed L2/L4 Gigabit Ethernet switch with 8 RJ-45 ports, supporting full duplex and a switching capacity of 16 Gbit/s. It features a MAC address table with 8000 entries and complies with various IEEE networking standards. This 1U rack-mountable switch is ideal for efficient network management and scalability.
Available at price 200.49 €: 7 pcs.
Total available for order: 101 pcs.
Warranty: 2 Years
SKU: 125157
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.64 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 219.99 €: 10 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET IGS-801M is a compact managed L2/L4 Gigabit Ethernet switch with eight 10/100/1000BASE-T RJ-45 ports, 16 Gbit/s switching capacity and an IP30 metal housing. Designed for industrial and harsh environments, the switch supports full-duplex operation, a MAC address table of 8,000 entries and redundant power inputs for reliable continuous operation.

Advantages

The IGS-801M offers robust Layer 2 features including link aggregation, 802.1Q and Q-in-Q VLAN, MSTP, LLDP, IGMP and MLD snooping, together with comprehensive QoS and traffic control (per-port bandwidth control, DSCP remarking and storm control). It also delivers advanced security capabilities such as IPv4/IPv6 ACLs, 802.1X authentication, port security, DHCP snooping, IP source guard and dynamic ARP inspection. Management options include web GUI, Telnet, SNMP, SSH, SSL and SNMPv3 for secure remote administration.

Suitable for

  • Industrial automation and factory floor networking
  • Traffic control cabinets and roadside equipment
  • Small to medium enterprise access layer deployments
  • VoIP and IP video streaming applications

Key specifications

  • Ports: 8 x Gigabit Ethernet (10/100/1000BASE-T) RJ-45
  • Switching capacity: 16 Gbit/s
  • MAC table: 8,000 entries
  • Standards: IEEE 802.1Q, 802.1p, 802.1X, 802.3ad, 802.3ab and others
  • Power input: wide-range DC 12–48 V or AC 24 V (redundant input support)
  • Operating temperature: -40 to 75 °C
  • Protection class: IP30 metal case
  • Weight: 0.472 kg
  • Color: Blue

How to use

Install the IGS-801M in a suitable enclosure or rack space and connect the DC or AC power sources to the redundant power inputs. Use the RJ-45 ports to connect end devices, switches or uplinks. Configure VLANs, link aggregation, QoS and security policies via the built-in web interface, SNMP management software or Telnet/SSH command line according to your network design. Save and apply the configuration before placing the switch into production.

Usage recommendations

For reliable operation in industrial environments, use filtered and surge-protected power lines, enable port security and DHCP snooping on edge ports, and configure redundant trunks for critical uplinks. Regularly update firmware and back up configuration files to maintain security and availability.

Specifications

Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Switch type:
Managed
10G support:
No
Weight:
0.472 kg
Basic switching RJ-45 Ethernet ports quantity:
8
Networking standards:
IEEE 802.1s, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q
Product colour:
Blue
All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:
8
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8

Management features

Switch layer:
L2/L4
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
ARP inspection:
Yes

Other features

Terminal block port:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Performance

Firmware upgradeable:
Yes

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Wall mountable:
Yes
Product colour:
Blue
Reset button:
Yes
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 75
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
15 BTU/h

Certificates

Certification:
FCC, CE

Protocols

Management protocols:
Telnet/SNMP
Supported network protocols:
IPv4 / IPv6

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1s, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1w, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Copper ethernet cabling technology:
100BASE-TX, 10BASE-T, 1000BASE-T
Virtual LAN features:
Protocol-based VLAN, Tagged VLAN, Private VLAN, Stacked VLAN
Half duplex:
Yes

Weight & dimensions

Weight:
0.472 kg
Height:
135 mm
Width:
32 mm
Depth:
87 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
4.5 W
Power consumption (max):
10 W

Multicast features

Multicast support:
Yes
Number of multicast groups filtered:
256

Data transmission

MAC address table:
8000 entries
Switching capacity:
16 Gbit/s
Jumbo frames support:
Yes
Number of queues:
8
Store-and-forward:
Yes
Throughput:
11.9 Mpps
Jumbo frames:
10000

Security

Security algorithms:
SSL/TLS, SSH
MAC address filtering:
Yes
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication
