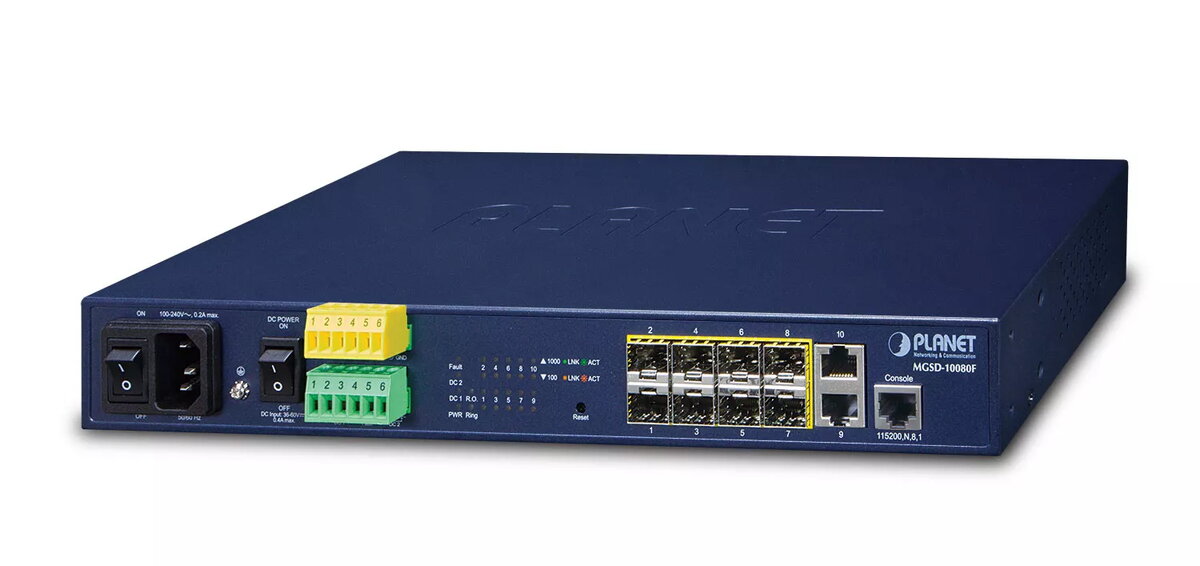

Managed Switch PLANET MGSD-10080F Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Managed Switch PLANET MGSD-10080F

{{email}}
You keep track of price changes

Managed Switch PLANET MGSD-10080F

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET MGSD-10080F is a Managed L2+ network switch with a 1U form factor, featuring a full duplex RJ-45 console port. It supports a MAC address table of 8000 entries and offers a switching capacity of 20 Gbit/s. Compliant with various IEEE networking standards, it ensures reliable and efficient network performance, making it ideal for rack mounting in data centers and enterprise environments.
Available at price 338.49 €: 3 pcs.
Total available for order: 10 pcs.
Warranty: 2 Years
SKU: 362894
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.33 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 361.49 €: 2 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET MGSD-10080F is a managed Metro Ethernet switch in a rugged 1U rack-mountable case designed for long-reach networking in enterprises, telecoms and campuses. It provides eight dual-speed SFP fiber ports (100/1000 Mbps), two 10/100/1000 Mbps TP ports, a non-blocking switch fabric and up to 20 Gbit/s wire-speed throughput. The switch operates in industrial temperature ranges (-10 to 60 °C), supports front access for easy cabinet wiring and maintenance, and includes AC and DC redundant power inputs for high availability.

Advantages

The MGSD-10080F supports flexible SFP transceivers (100Base-FX and 1000Base-SX/LX) and SFP-DDM for real-time monitoring of optical parameters. It offers comprehensive Layer 2 to Layer 4 management features, IPv4/IPv6 management support, advanced Quality of Service, VLAN and security functions, and digital input/output for external alarm integration. The device is designed for reliable continuous operation with both AC (100–240 V) and DC (36–72 V) power options and provides port-based 802.1x and MAC-based authentication plus ACL and port-security to protect edge networks.

Suitable for

  • Long-distance Ethernet links for ISPs and service providers
  • FTTx edge and metro Ethernet deployment
  • Rack-mounted enterprise LAN and campus network uplinks
  • Industrial and factory automation networks and data centers

Key specifications

  • Ports: 8 dual-speed SFP ports (100/1000 Mbps) and 2 TP ports (10/100/1000 Mbps)
  • Switching capacity: 20 Gbit/s
  • MAC address table: 8,000 entries
  • Power: 1 × AC (100–240 V) and 2 × DC inputs (36–72 V) for redundancy
  • Temperature range: -10 to 60 °C
  • Form factor: 1U rack-mountable, front access design
  • Standards: IEEE 802.1w, 802.3z, 802.3x, 802.3u, 802.3ab, 802.3, 802.1x, 802.1s, 802.1p, 802.1ab, 802.1Q, 802.1D
  • Weight: 1.661 kg
  • Color: Blue

How to use

Install the MGSD-10080F in a standard 19-inch rack using the provided mounting kit and connect AC and/or DC power according to site requirements to enable redundancy. Insert compatible SFP transceivers into the mini-GBIC slots based on required distance and speed, then connect fiber or copper links to the appropriate ports. Use the console port or web/CLI management interfaces to configure VLANs, QoS, security policies, IPv4/IPv6 settings and monitoring. Configure digital input/output to integrate external alarms and alerts with network events.

Usage recommendations

For reliable long-distance links, choose SFP modules (SX/LX) specified for the required fiber type and distance and enable SFP-DDM to monitor optical parameters. Configure redundant power inputs where continuous operation is critical and apply port-security and ACLs to limit unauthorized access.

Specifications

Switch type:
Managed
10G support:
No
Weight:
1.661 kg
Networking standards:
IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Product colour:
Blue
All features

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:
2
Console port:
RJ-45
SFP module slots quantity:
8

Management features

Switch layer:
L2+
Quality of Service (QoS) support:
Yes
Web-based management:
Yes
System event log:
Yes
Switch type:
Managed
Traffic classification:
Yes
ARP inspection:
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Power

Redundant power supply (RPS) support:
Yes
Input current:
0.15
AC input frequency:
50 - 60
AC input voltage:
100 - 240
Power consumption (max):
11.2 W
Power supply included:
No

Protocols

Management protocols:
web, telnet, SNMP
Supported network protocols:
IPv4 / IPv6

Logistics data

Harmonized System (HS) code:
85176990

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-10 - 70
Operating temperature (T-T):
-10 - 60
Storage relative humidity (H-H):
5 - 95

Certificates

Certification:
FCC, CE

Design

Rack mounting:
Yes
Form factor:
1U
LED indicators:
Y
Product colour:
Blue
Stackable:
Yes
Reset button:
Yes
DIN rail mounting:
No

Weight & dimensions

Weight:
1.661 kg
Height:
43.5 mm
Width:
330 mm
Depth:
155 mm

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1w, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1s, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1D
Flow control support:
Yes
Port mirroring:
Yes
Link aggregation:
Yes
Broadcast storm control:
Yes
Rate limiting:
Yes
Auto MDI/MDI-X:
Yes
Number of VLANs:
4094
Spanning tree protocol:
Yes
VLAN support:
Yes
10G support:
No
Copper ethernet cabling technology:
100BASE-TX, 10BASE-T
Auto-negotiation:
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Virtual LAN features:
Private VLAN, Stacked VLAN, Tagged VLAN, Protocol-based VLAN

Data transmission

MAC address table:
8000 entries
Switching capacity:
20 Gbit/s
Jumbo frames support:
Yes
Number of queues:
8
Store-and-forward:
Yes
Throughput:
14.8 Mpps
Jumbo frames:
9216

Security

Security algorithms:
SSL/TLS, SSH, SNMP
Access Control List (ACL):
Yes
SSH/SSL support:
Yes
IGMP snooping:
Yes
Loop protection:
Yes
BPDU filtering/protection:
Yes
Authentication:
Port-based authentication

Performance

Firmware upgradeable:
Yes

Multicast features

Multicast support:
Yes

Optical fiber

Fiber ethernet cabling technology:
1000BASE-SX, 1000BASE-LX
