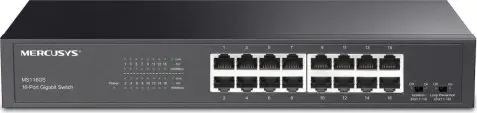

Network switch MERCUSYS MS116GS — 16-port Gigabit Ethernet (10/100/1000), rack-mount, black

MERCUSYS MS116GS is a 16-port unmanaged network switch providing sixteen Gigabit Ethernet RJ-45 ports (10/100/1000) for expanding wired LAN capacity in small offices and rack-mounted environments. The switch offers a non-blocking switching design, a MAC address table that stores up to 8,000 entries and a switching capacity of 32 Gbit/s. Built to industry standards including IEEE 802.3ab/802.3u/802.3i/802.3x and IEEE 802.1p, the MS116GS supports reliable packet forwarding, flow control for Full Duplex and backpressure for Half Duplex operation. Its metal housing enables rack-mount installation or desktop placement while providing heat dissipation and reduced electromagnetic interference.

Advantages

The MS116GS delivers full Gigabit connectivity across 16 ports with Auto-MDI/MDIX support for flexible cabling and immediate plug-and-play deployment without configuration. Isolation Mode lets you separate traffic on ports 1–14 with one click to reduce snooping and limit broadcast impact. Loop prevention automatically detects and blocks looping ports while signaling the event via LED indicators. Energy-efficient design adapts power consumption to traffic conditions to reduce power draw. The metal enclosure supports stable operation and long service life, and the switch is suitable for rack mounting to integrate into existing network cabinets.

Suitable for

• Small offices expanding wired Ethernet connectivity
• Rack-mounted network installations and server closets
• Connecting computers, printers, IP cameras and networked AV equipment
• Edge switch deployment for additional user or device ports

Key specifications

• Ports: 16 × Gigabit Ethernet RJ-45 (10/100/1000 Mbps) with Auto-Negotiation and Auto-MDI/MDIX
• Switching capacity: 32 Gbit/s
• MAC address table size: 8,000 entries
• Supported standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x, IEEE 802.1p
• Traffic features: Isolation Mode for ports 1–14, loop detection and prevention, IEEE 802.3x flow control
• Construction: Metal casing with rack-mount capability and desktop placement option
• Power: AC powered with energy-efficient operation
• Color: Black

How to use

Install the MERCUSYS MS116GS on a desktop or mount it in a standard equipment rack using the supplied brackets. Connect each device to the switch using Cat5e or higher Ethernet cables; the ports auto-negotiate speed and duplex. For most deployments no configuration is required—simply apply power and connect endpoints to the RJ-45 ports. Use Isolation Mode when you need to separate traffic among connected clients on ports 1–14. Monitor the front-panel LEDs to check link status, activity and to identify loop events if they occur.

Usage recommendations

Use Cat5e or Cat6 cables to ensure full Gigabit throughput and place the switch in a ventilated area to maintain proper cooling. When integrating into a rack, mount the device securely and route power and network cables to avoid interference. Enable Isolation Mode for port groups where client-to-client traffic should be restricted, and rely on loop prevention indicators to quickly locate and isolate wiring faults. For mixed full- and half-duplex devices, allow the switch’s flow control mechanisms to manage traffic congestion.
