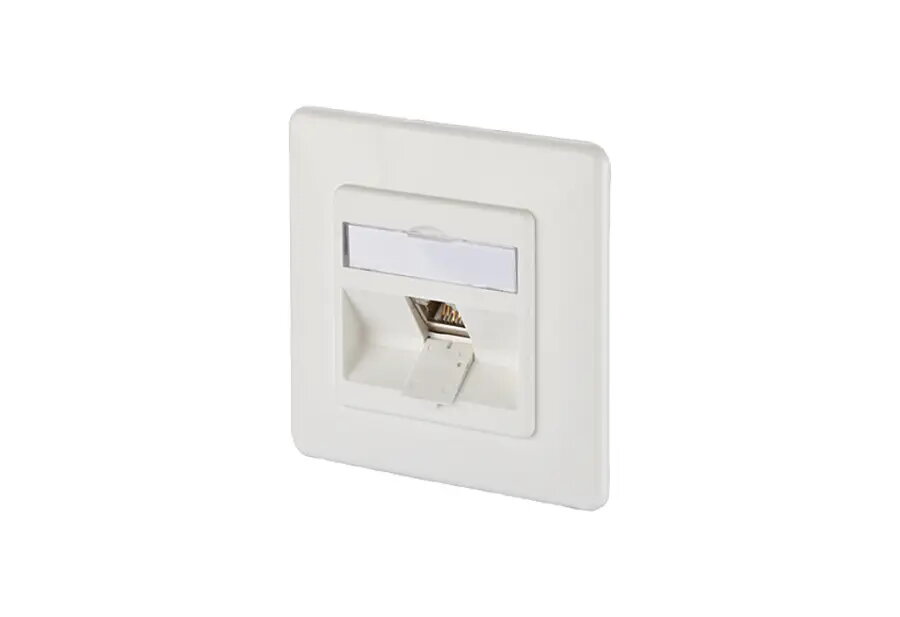

Socket-outlet RJ-45 MetzConnect 1309111002-E Cat6a, white, 80.5×80.5×40.9 mm

The MetzConnect 1309111002-E Cat6a RJ-45 socket-outlet in white is a compact flush-mounted termination unit designed for structured cabling that requires Cat6a performance. Measuring 80.5 × 80.5 × 40.9 mm, it provides a single RJ-45 port certified for Class EA and component-tested to industry standards. The outlet supports high-speed Ethernet up to 10 GBit and is suitable for professional installations in offices, server rooms and residential environments where reliable 10 GBit connectivity, PoE and HDBaseT compatibility are required.

Advantages

This socket-outlet is component-tested to ISO/IEC 11801 (Ed.2.2), DIN EN 50173-1 and TIA/EIA-568-C.2 and certified to GHMT, ensuring performance up to 500 MHz. The unit supports 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE+ and UPoE) and HDBaseT applications. Installation is simplified by 8-fold insulation displacement connectors (IDC) that accept 2- to 4-pair solid conductors AWG 26/1–22/1 and stranded wires AWG 26/7–22/7, with conductor assignment marked for T568A or T568B. The module plug is oriented 45° downwards and includes strain relief with a cable tie point as well as integrated dust protection covers and a label window (labels included).

Suitable for

• 10 GBit Ethernet connections in office networks and data centers
• PoE, PoE+ and UPoE powered devices such as IP phones, access points and cameras
• HDBaseT installations for audio/video distribution
• Structured cabling in residential and commercial premises requiring Cat6a performance

Key specifications

• Cable standard: Cat6a, component-tested to ISO/IEC 11801 Ed.2.2 and DIN EN 50173-1
• Frequency range: tested up to 500 MHz
• Ethernet: supports 10 GBit (IEEE 802.3an)
• Power-over-Ethernet: compatible with PoE, PoE+ and UPoE
• Termination: 8-fold IDC for 2–4 pair solid AWG 26/1–22/1 and stranded AWG 26/7–22/7
• Conductor assignment: clearly marked for T568A or T568B
• Module orientation: 45° downward plug direction
• Housing dimensions: 80.5 × 80.5 × 40.9 mm
• Finish: pearl white RAL 1013 or pure white RAL 9010 with matt structured surface
• Features: integrated dust protection covers, strain relief with cable tie, label window (labels included)

How to use

Mount the MetzConnect Cat6a socket-outlet in a compatible flush-mounted central unit as specified by the manufacturer; note that it is not suitable for standard flush-mounted or cavity wall casings. Prepare the data cable according to the chosen wiring scheme (T568A or T568B), insert conductors into the 8-fold IDC and terminate using the recommended tooling. Secure the module with the provided strain relief and attach the dust cover. Insert identification labels into the label window if required. After termination, test the link to verify compliance and performance up to 500 MHz.

Usage recommendations

For reliable 10 GBit performance, use certified Cat6a cable and test links after installation. Ensure the outlet is installed in compatible central units and avoid mounting in unsuitable wall casings. When deploying PoE or HDBaseT services, confirm cable quality and terminations meet the power and bandwidth requirements.
