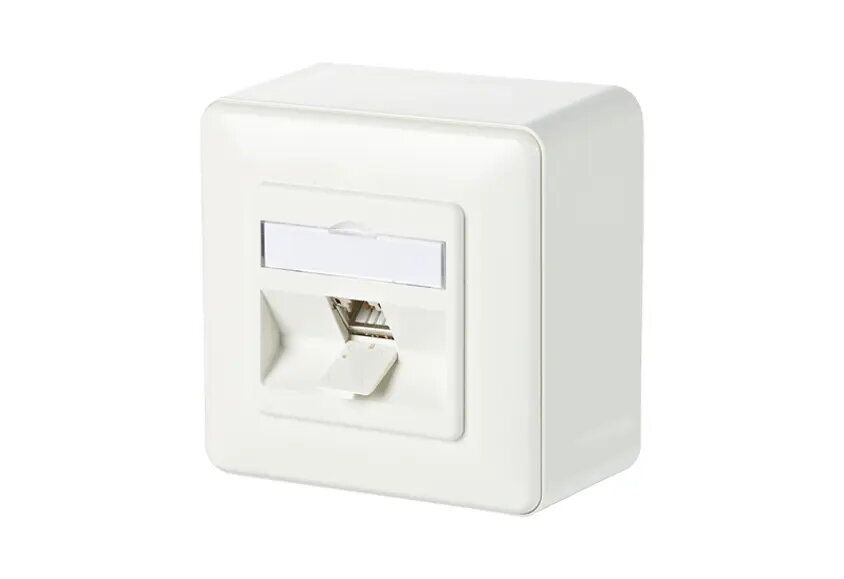

Socket-outlet RJ-45 MetzConnect 130B11D10002-E Category 6a, White, 85.6×85.6×51 mm

MetzConnect 130B11D10002-E is a single‑port surface‑mount RJ‑45 socket outlet designed for Category 6a structured copper cabling. The white module, sized 85.6 × 85.6 × 51 mm, provides a fixed network termination point for high‑speed Ethernet and supports Power over Ethernet (PoE). Its compact 180° angled housing is intended for visible surface installations in offices, homes and light industrial environments where a neat single‑port outlet with Cat6A capability is required.

Advantages

This MetzConnect wall outlet delivers Cat6A signal performance in a compact single‑port form factor, supporting data rates up to 10 Gbps when used with compatible cabling and active equipment. The 180° orientation facilitates cable routing in shallow or surface applications and reduces bend stress on the incoming cable. Finished in RAL9010 (pure white), the module integrates with standard white fittings and interior decor. The front RJ‑45 jack accepts standard patch cords and the unit supports PoE, enabling powered devices without separate mains outlets.

Suitable for

• Office desktop or wall‑mounted network points requiring a single RJ‑45 outlet
• Residential surface installations for Ethernet and PoE devices such as IP cameras, access points and VoIP phones
• Light industrial or workshop areas needing a durable surface outlet with Cat6A performance

Key specifications

• Connector type: single RJ‑45 port with Category 6a performance
• Mounting style: surface‑mount module with 180° cable orientation
• Color and finish: RAL9010 (pure white)
• Supported network speeds: 10/100/1000/10G Ethernet
• PoE support: compatible with Power over Ethernet delivery
• Dimensions: approximately 85.6 × 85.6 × 51 mm (module external size)

How to use

Mount the MetzConnect Cat6A single‑port module to a compatible surface mounting box or directly onto a flat surface following local installation regulations. Terminate the incoming twisted‑pair cable onto the module's termination points according to the applicable wiring standard (for example TIA/EIA or your local standard). After termination, verify pair continuity and wiring order with an appropriate network tester. Connect a standard RJ‑45 patch cord to the front port to link the outlet to network equipment or end devices. Confirm PoE compatibility and power budgets before connecting powered equipment.

Usage recommendations

Use certified Cat6A cabling and quality connectors to achieve full 10G performance and reliable PoE operation; test each installed link with a certified tester for bandwidth, continuity and PoE power levels. For dusty, humid or harsh environments, consider additional protective boxes or covers and observe grounding and safety requirements during installation.
