METZ CONNECT 40G RJ45 field plug pro 360

Name: METZ CONNECT 40G RJ45 field 130H405042-E
Brand: MetzConnect
SKU: 11143850
Price: 25.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

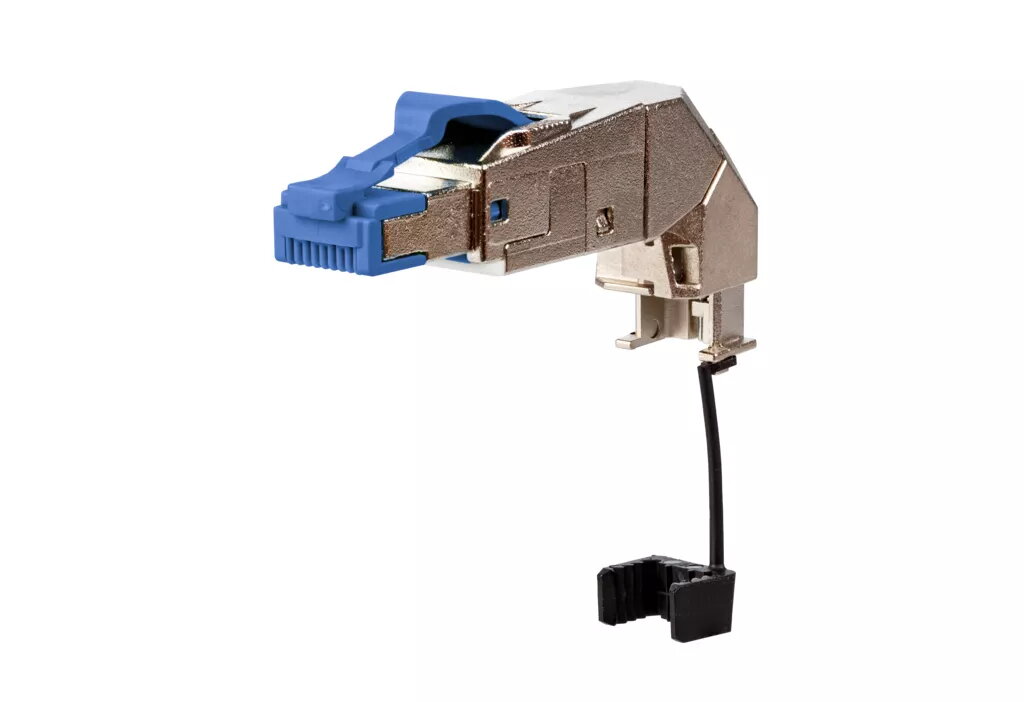

METZ CONNECT 40G RJ45 field plug pro 360 Blue Male Connector

METZ CONNECT 40G RJ45 field plug pro 360 Photo 1

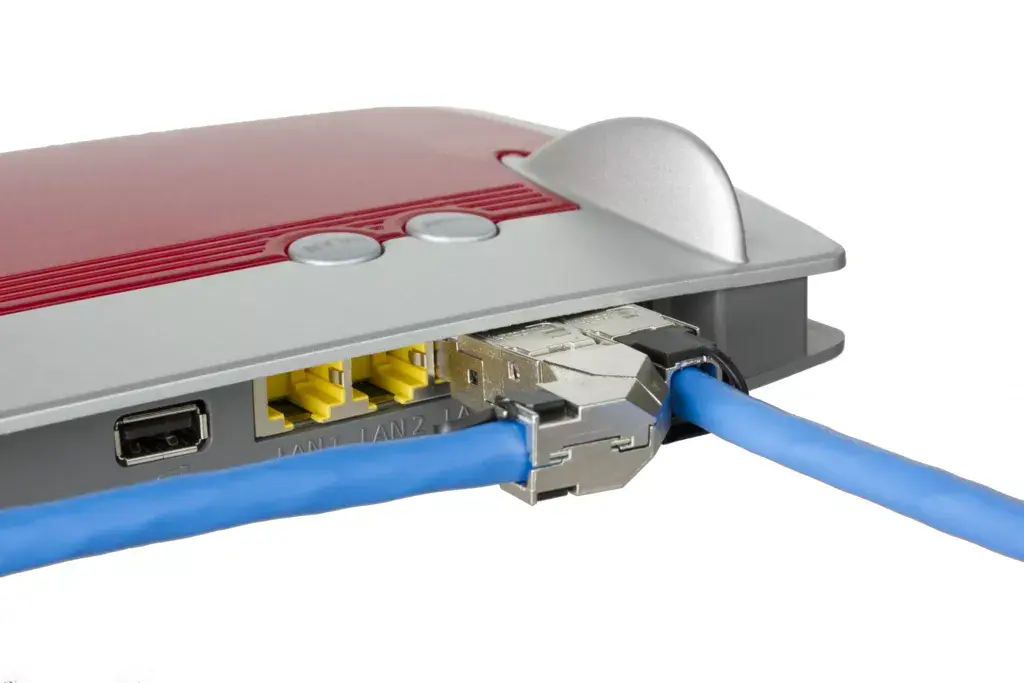

METZ CONNECT 40G RJ45 field plug pro 360 Photo 2

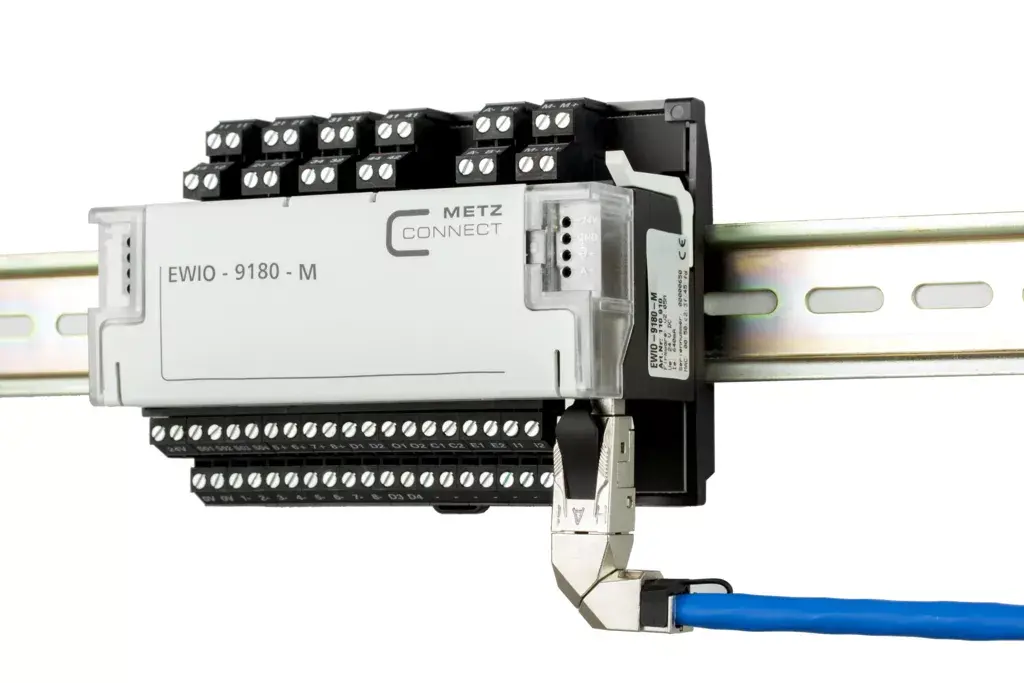

METZ CONNECT 40G RJ45 field plug pro 360 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The METZ CONNECT 40G RJ45 field plug pro 360 in blue features a male RJ45 connector. It measures 13.8 mm in width, 49.8 mm in depth, and 16.5 mm in height. Each pack contains 10 pieces. Made in Germany, this product is designed for high-speed networking applications.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 11143850

Manufacturer: MetzConnect

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

16.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

21.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.00 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

21.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The METZ CONNECT 40G RJ45 field plug pro 360 Blue Male Connector is a compact, field-installable RJ45 plug designed for high-speed networking applications. With a slim profile and durable housing, this blue male connector supports 40G data transmission requirements where space is limited and reliable performance is required. The plug is produced in Germany and supplied in packs of ten, suitable for technicians and installers working on data center and enterprise cabling projects.

Advantages

The field plug offers a compact design with precise mechanical dimensions—13.8 mm width, 49.8 mm depth and 16.5 mm height—allowing easy access in confined patchpanel and cabling environments. Its construction supports high-speed 40G connections while maintaining stable contact performance and repeatability. The blue colour provides clear visual identification for specific cable runs or network segments. Delivery in multi-piece packs streamlines bulk installation and reduces handling time on site.

Suitable for

High-speed Ethernet links up to 40G in data centres
Field termination of stranded or solid cables in enterprise networks
Cabling projects requiring compact RJ45 connectors for patchpanels and outlets
Site installations where component colour-coding improves organisation

Key specifications

Connector type: Male RJ45 field plug
Rated performance: Designed for 40G network applications
Dimensions (W × D × H): 13.8 mm × 49.8 mm × 16.5 mm
Colour: Blue
Packaging: Pack of 10 pieces
Country of manufacture: Germany

How to use

Prepare the cable according to the applicable installation standard, strip the jacket and arrange conductors to match the target wiring scheme. Insert the conductors into the field plug contacts following the manufacturer’s mechanical guidance, then secure the assembled plug to the cable using the recommended termination method. After assembly, perform a visual inspection of contact seating and verify continuity and performance with appropriate network test equipment before placing the connector into service.

Usage recommendations

Use appropriate cable types and tools compatible with 40G installations, and carry out post-termination testing (continuity and return loss) to confirm link performance. Avoid excessive bending at the connector entry and follow local installation standards for grounding and cable management.

Specifications

Product colour:: Blue

All features

Cable diameter:: 10.5 mm
Voltage:: 50
Insulation resistance:: 500 MΩ
Current:: 1 A
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP20
Cable standard:: Cat8.1
Connector gender:: Male
Dielectric strength:: 1000 V
Shell plating:: Nickel
Lifetime (cycles):: 750
Insertion force:: 20 N
Withdrawal force:: 20 N
Contact resistance:: 20 mΩ
Connector form factor:: Angled
Cable protector:: Yes

Packaging data

Package weight:: 413 g
Package depth:: 258 mm
Package height:: 51 mm
Package width:: 164 mm
Package type:: Box

Operational conditions

Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 85

Network

Connector(s):: RJ45
Connector contacts plating:: Nickel/Gold

Weight & dimensions

Height:: 16.5 mm
Width:: 13.8 mm
Depth:: 49.8 mm

Logistics data

Country of origin:: Germany
Quantity per pack:: 10 pc(s)

Design

Material:: Zinc, Plastic
Product colour:: Blue

Sustainability

Doesn't contain:: Halogen

Hide Show all

Instructions
