header-product RJ-45 Socket Outlet METZ CONNECT 1401110012KE Black IP67
64.49 €

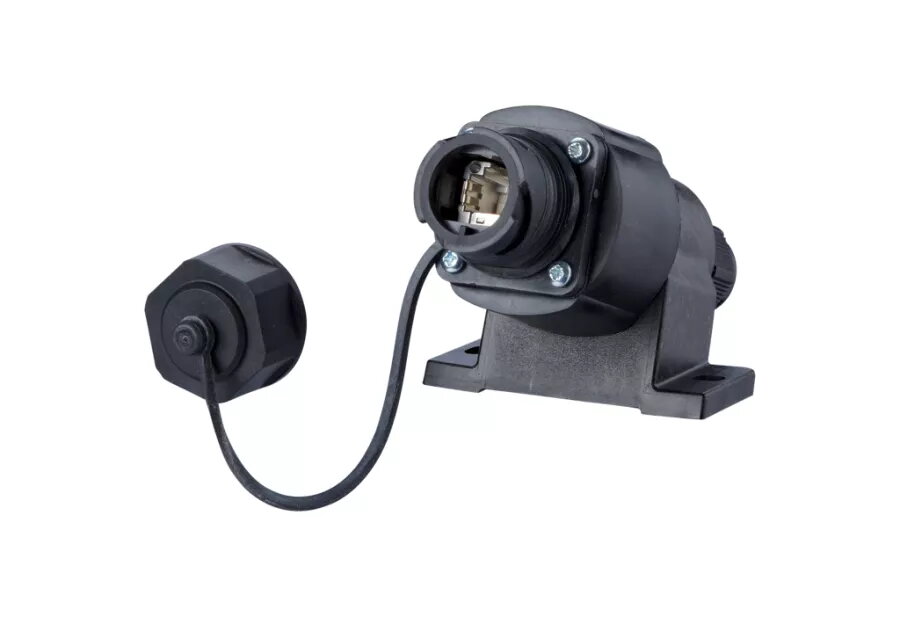

RJ-45 Socket Outlet METZ CONNECT 1401110012KE Black IP67

RJ-45 Socket METZ CONNECT 1401110012KE Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

RJ-45 Socket Outlet METZ CONNECT 1401110012KE Black IP67

{{email}}
You keep track of price changes

RJ-45 Socket Outlet METZ CONNECT 1401110012KE Black IP67

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The METZ CONNECT 1401110012KE is a black RJ-45 socket outlet with IP67 protection, measuring 64 mm in width, 81 mm in depth, and 65 mm in height. It weighs 108 g and is designed for reliable connectivity in harsh environments.
Available for order: 11 pcs.
Warranty: 2 Years
SKU: 4827222
Manufacturer: MetzConnect
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.10 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The METZ CONNECT 1401110012KE is a black, IP67-protected RJ45 wall outlet designed for surface mounting. It accepts a Cat.6 Class EA RJ45 field jack insert with T568A pin assignment and provides a robust connection point for 10 GBit Ethernet, PoE variants and HDBaseT in harsh or industrial environments. The flange housing uses a bayonet lock per ISO/IEC 24702 and IEC 61076-3-106 and includes features that simplify installation and increase mechanical resilience.

Advantages

The outlet meets Class EA performance according to ISO/IEC 11801 Ed.2.2 and DIN EN 50173-1 standards and supports IEEE 802.3an 10 GBit Ethernet plus Remote Powering (PoE, PoE+ and UPoE). Its IP67-protected housing and reinforced shield connection with four springs offer increased resistance to vibrations and shocks. The unit allows termination of AWG 26/7 to 22/7 (and AWG 26/1 to 22/1) conductors, requires no special tools for installation, and permits series surface-mounting for flexible deployment.

Suitable for

  • Industrial and outdoor network sockets where IP67 protection is required
  • 10 GBit Ethernet links and high-speed Cat.6 Class EA installations
  • Power over Ethernet deployments (PoE, PoE+, UPoE)
  • Audio/video transmission systems using HDBaseT
  • Environments with vibration or mechanical stress

Key specifications

  • Manufacturer: MetzConnect
  • MPN: 1401110012KE
  • EAN: 4250184119722
  • Product type: RJ45 socket outlet, flange housing, surface mounting
  • Protection: IP67
  • Rated category: Cat.6 Class EA (compliant to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1)
  • Pin assignment: T568A (variant available)
  • Standards: ISO/IEC 24702, IEC 61076-3-106
  • Ethernet: supports 10 GBit (IEEE 802.3an)
  • PoE: supports PoE, PoE+ and UPoE
  • Wire gauge: AWG 26/7 - 22/7 (AWG 26/1 - 22/1 possible)
  • Dimensions (W×D×H): 64 × 81 × 65 mm
  • Weight: 108 g

How to use

Mount the flange housing on a suitable flat surface using the provided fixing points, then terminate the Cat.6 Class EA RJ45 field jack insert following the T568A wiring scheme. Insert the terminated module into the bayonet-lock housing until it engages according to ISO/IEC 24702. Connect external RJ45 plugs as needed (note that connection of standard RJ45 plugs does not retain IP67 protection). Ensure cable preparation matches the supported AWG conductor sizes and that the shield is secured using the built-in springs for reliable mechanical and EMI performance.

Usage recommendations

For sustained IP67 protection, verify that the housing is properly closed after insertion and avoid mating unsealed RJ45 plugs outdoors; use appropriate cable glands and strain reliefs. Choose the T568A pinout if consistency with existing installations is required, or select the T568B variant where applicable.

Specifications

Product colour:
Black
All features
Sockets quantity:
1
Protection:
Yes
Socket type:
RJ-45
Networking cable category:
6

Weight & dimensions

Height:
65 mm
Width:
64 mm
Depth:
81 mm

Packaging data

Package weight:
108 g

Features

Product colour:
Black
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP67

Operational conditions

Operating temperature (T-T):
-40 - 70

Sustainability

Doesn't contain:
Halogen

Certificates

Compliance certificates:
RoHS
