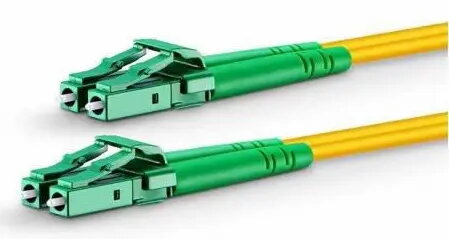

Fibre optic cable MicroConnect FIB6330010 — OS2, LC‑to‑LC, 10 m, full duplex, yellow

Single mode fiber optic cable suitable for enterprise networks, telecom rooms, server farms and cloud storage networks. The LC‑to‑LC single mode patch cord supports 1G/10G/40G/100G Ethernet links and is made with LSZH jacket for reduced smoke and halogen content. It provides optical transmission up to 10 km at 1310 nm or up to 40 km at 1550 nm and conforms to common industry standards (IEC, EIA/TIA, Telcordia).

Advantages

The cable uses OS2 single‑mode fiber with APC polished LC connectors for low back reflection and stable optical performance. LSZH jacket offers flame retardant and low smoke properties suitable for data centers and indoor telecom installations. The full‑duplex LC–LC configuration and standard lengths make it compatible with a wide range of networking equipment.

Key specifications

• Fiber type: OS2 single‑mode
• Length: 10 m
• Connectors: LC male — LC male (APC polish)
• Polish type: APC
• Jacket: LSZH (Low Smoke Zero Halogen), flame retardant
• Duplex: Full duplex single‑mode
• Colour: Yellow
• Standards: IEC, EIA/TIA, Telcordia compliant
• Optical reach: up to 10 km @ 1310 nm, up to 40 km @ 1550 nm
• RoHS: compliant

How to use

Inspect connectors and ports for dust before installation. Insert LC connectors into corresponding LC ports until they click, observing correct orientation for duplex links. Route the cable without sharp bends and avoid tensile stress; maintain the manufacturer’s minimum bend radius. For optimal performance, keep APC connector endfaces clean and use dust caps when not connected.

Рекомендации

Use in indoor data center and telecom environments where LSZH materials are required. Verify length and connector polish (APC) match your transceiver and patch panel requirements before purchase. For long runs, choose appropriate transceivers to match the specified optical reach at 1310 nm or 1550 nm.
