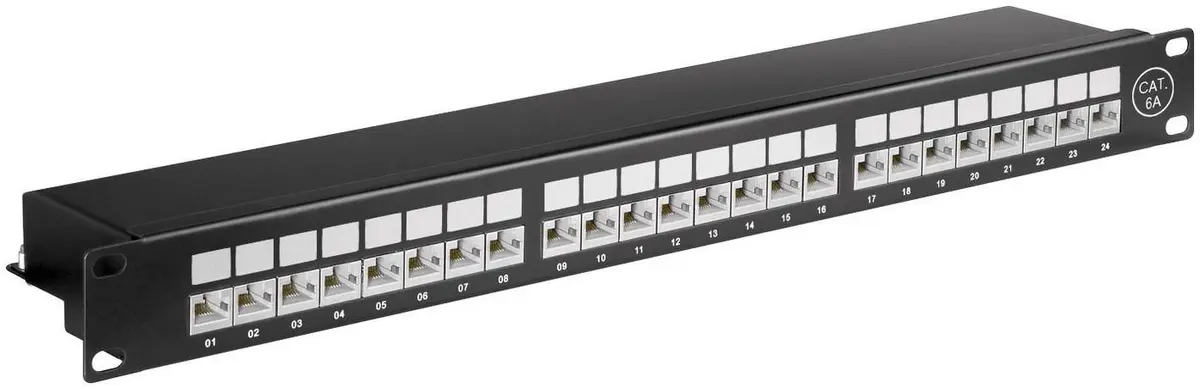

MicroConnect PP-022 Patch Panel 1U Cat6a 24-Port RJ-45 Rack Mounting Black

The MicroConnect PP-022 Patch Panel 1U Cat6a 24-Port RJ-45 Rack Mounting Black is an essential hardware component designed for efficient network cable organization and management within standard 19-inch racks. Built to accommodate professional networking demands, this patch panel features 24 RJ-45 ports supporting Cat6a cables, ensuring high-speed data transmission and reliable connectivity for modern server rooms and data center infrastructures. Its sturdy construction and standard 1U rack capacity allow for seamless integration into existing rack setups while maintaining an organized and accessible cable layout.

Advantages

This patch panel provides a structured approach to cable management, significantly reducing clutter and minimizing the risk of accidental disconnections in busy network environments. The integration of 24 ports allows for high-density installations, making it easier to scale network infrastructure as organizational needs grow. Support for Cat6a cabling ensures that the panel is fully equipped to handle high-bandwidth applications with minimal signal interference. Additionally, the standard rack mounting design and LSA insulation displacement terminal technology facilitate straightforward installation and cable termination for network technicians.

Suitable for

• Organizing network cables in server rooms and data centers
• High-density office network installations requiring Cat6a connectivity
• Upgrading existing 19-inch rack systems for improved cable management
• Professional structured cabling environments

This patch panel may not be suitable for small home networks that do not utilize 19-inch rack enclosures or for environments where cable management infrastructure is entirely absent. It is also not designed for non-rackmounted desktop setups or applications requiring fewer connection points where a smaller wall-mount box would be more appropriate.

Key specifications

• 24 RJ-45 ports
• Cat6a cable support
• 1U rack capacity
• Rack mounting design
• Color: Black
• Width: 483 mm
• Height: 44 mm
• Depth: 107 mm
• Internal connection technology for LSA insulation displacement terminals

To install the patch panel, mount it securely into a standard 19-inch server rack using appropriate mounting hardware, occupying 1U of rack space. Route incoming network cables neatly to the rear of the panel and terminate them using the LSA insulation displacement terminals according to the required wiring standard. Connect patch cables from the front RJ-45 ports to active network equipment such as switches or routers to establish reliable data links.

What to consider before purchase

• Ensure your setup utilizes a standard 19-inch rack enclosure with 1U of available space
• Verify that your network infrastructure uses Cat6a cabling to fully utilize the panel specifications
• Check whether you have the necessary LSA termination tools for cable installation
• Assess your current and future port density requirements to confirm that 24 ports are sufficient

Always ensure proper cable slack management and adherence to correct wiring standards during termination to maintain signal integrity and prevent long-term network performance issues.
