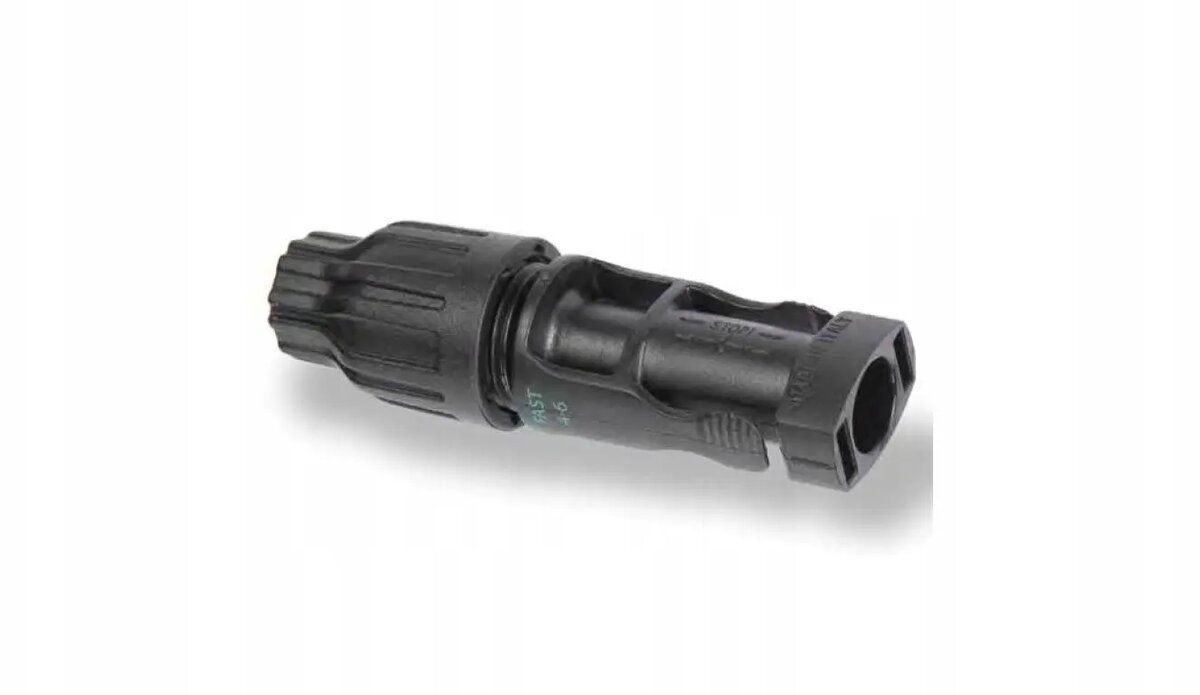

MOREK MAP1006Q40 MC4 Male Photovoltaic Connector for 4-6mm2 Cables, 1500VDC, Tool-Free QUICK Connection, IP68

The MOREK MAP1006Q40 is a high-quality male MC4 photovoltaic connector engineered for reliable integration in solar power systems. Designed specifically for solar cables with a cross-section of 4-6mm2, this connector facilitates efficient electrical connections between solar panels and infrastructure. It features a robust construction capable of handling up to 1500VDC, ensuring safety and performance in demanding energy applications.

Advantages

The primary benefit of this connector is its innovative tool-free QUICK connection system, which significantly reduces installation time and simplifies the assembly process for solar technicians. Its IP68 ingress protection rating guarantees complete resistance to dust and water, allowing for long-term operation in harsh outdoor environments without the risk of corrosion or electrical failure. The durable design ensures a stable and secure contact, minimizing energy losses and maintaining the integrity of the photovoltaic circuit over many years of service.

Suitable for

• Connecting solar panels in residential and commercial PV installations
• Extending solar cable runs in outdoor environments
• Professional solar infrastructure wiring
• Systems requiring high-voltage compatibility up to 1500VDC

This connector may not be suitable for applications involving cables outside the 4-6mm2 range, as improper sizing can lead to loose connections or overheating. It is also not intended for use in environments where the voltage exceeds the 1500VDC rating or where the connector will be submerged in water for extended periods beyond its IP68 certification.

Key specifications

• Connector type: Male MC4
• Compatible cable cross-section: 4-6mm2
• Maximum voltage: 1500VDC
• Ingress protection: IP68
• Connection method: Tool-free QUICK system

How to use

To install the connector, ensure the solar cable is stripped to the appropriate length according to standard electrical practices. Insert the prepared cable end into the connector housing until it locks securely into place using the integrated QUICK connection mechanism. Verify that the seal is properly seated to maintain the IP68 rating. No specialized crimping tools are required for the assembly, making it ideal for rapid field deployment.

What to consider before purchase

• Verify the cross-section of your solar cables matches the 4-6mm2 specification
• Ensure your system voltage does not exceed 1500VDC
• Confirm compatibility with existing female MC4 connectors in your array

For optimal performance and safety, always ensure that all connections are fully engaged and that the cable is properly secured to prevent mechanical strain on the connector.
