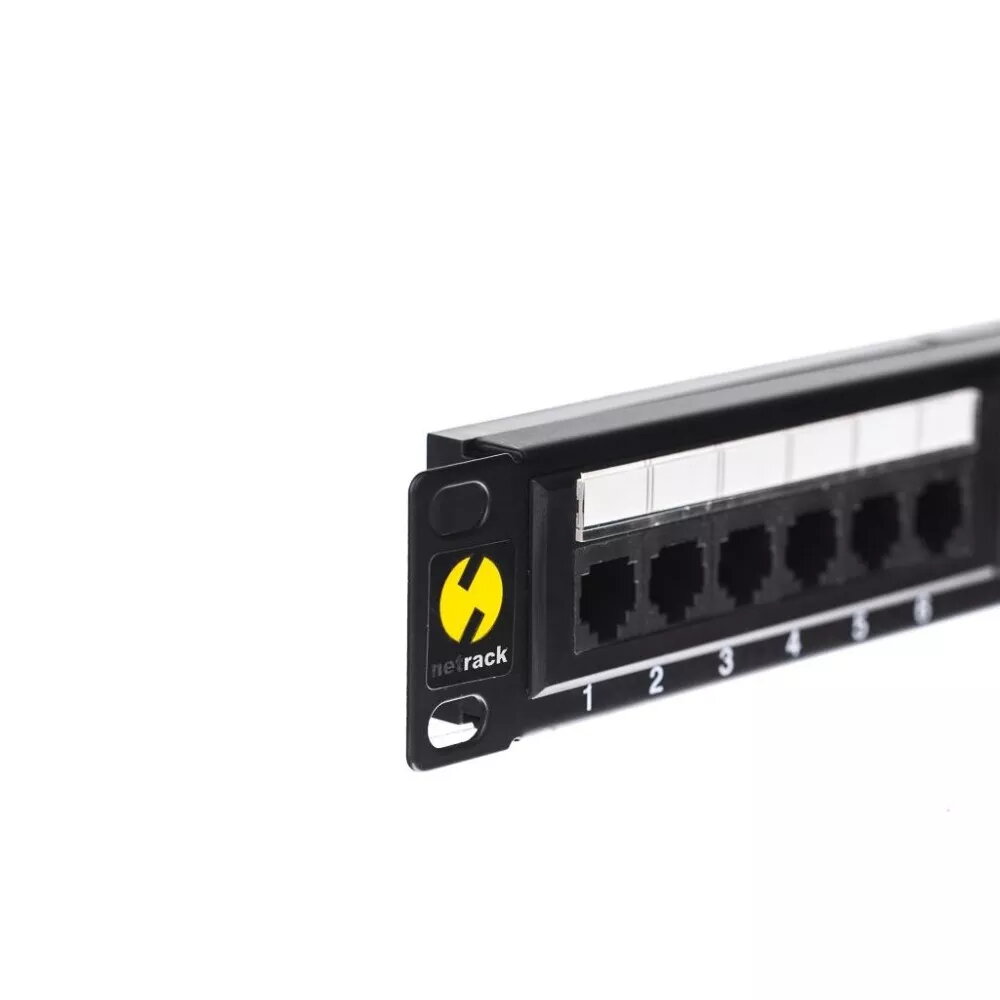

Patch panel NETRACK 104-05, 1U, 24x RJ-45 ports, Cat5e, U/UTP, black, 82 mm depth

NETRACK 104-05 is a 1U rack-mount patch panel designed for structured Cat5e cabling. The panel provides 24 front-facing RJ-45 ports in a slim 1U height and 82 mm mounting depth, offering a compact solution for organizing horizontal network terminations in server rooms, wiring closets and small data centers. The U/UTP (unshielded) design is suitable for standard copper twisted-pair Ethernet installations and provides consistent termination points between horizontal cabling and active network equipment.

Advantages

The patch panel delivers a high-density 24-port layout in a 1U form factor that saves rack space while keeping cable terminations accessible at the front. Its Cat5e-rated RJ-45 ports ensure compatibility with Fast Ethernet and Gigabit Ethernet over Cat5e cabling. The black metal housing provides a durable front plate for labeling and repeated patching, and the shallow 82 mm depth allows installation in racks and enclosures with limited rear clearance.

Suitable for

• Small and medium server rooms and network cabinets
• Office horizontal cabling and workstation connections
• Patch and cross-connect panels for managed switches
• Upgrading or organizing existing Cat5e U/UTP infrastructures

Key specifications

• Rack height: 1U
• Number of ports: 24 RJ-45 ports
• Cabling standard: Cat5e
• Shielding: U/UTP (unshielded)
• Mounting depth: 82 mm
• Panel color and finish: black metal front

How to use

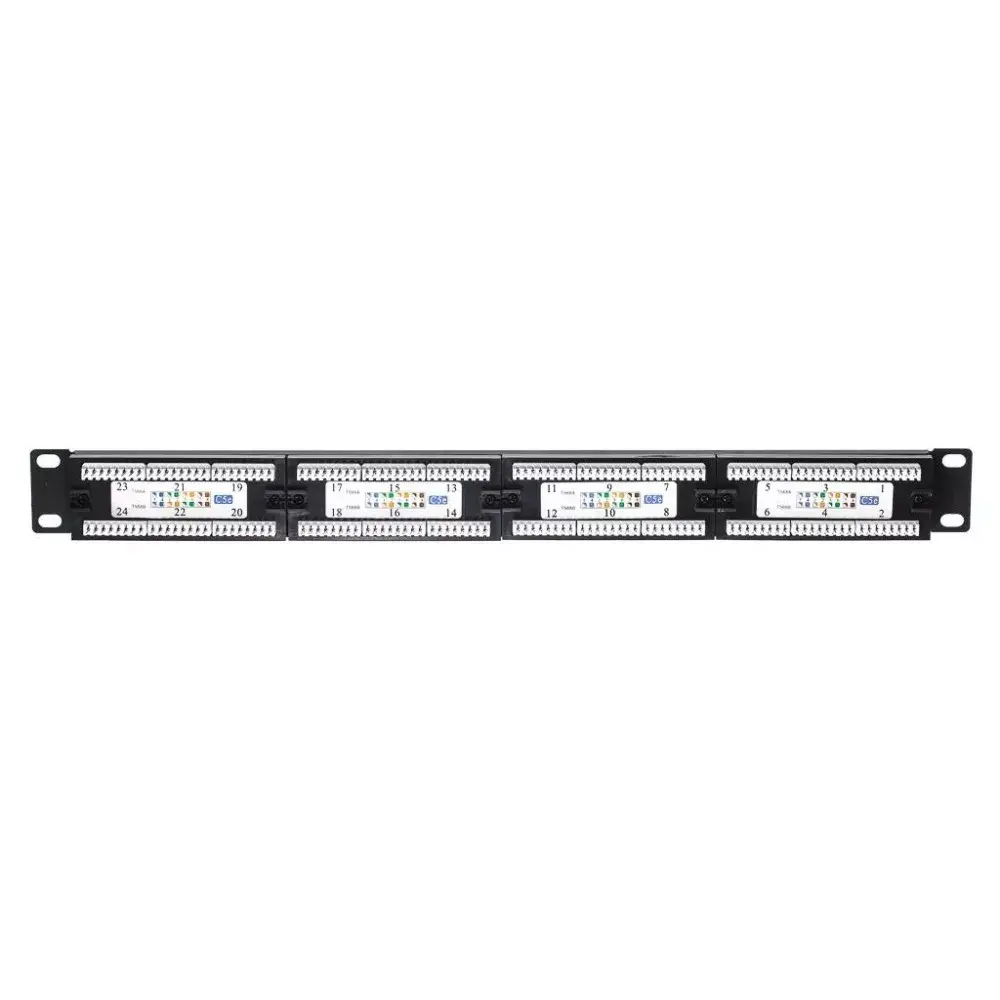

Install the patch panel into a standard 19-inch rack occupying a single 1U space. Terminate horizontal Cat5e U/UTP cables to the rear IDC or punch-down points according to T568A or T568B wiring scheme, ensuring correct pair alignment for Ethernet performance. Route and secure cables to prevent strain on terminations and use front-facing RJ-45 ports to connect patch cords between network switches, routers or other active devices. Label ports on the front plate to reflect the connected endpoints for easier management.

Usage recommendations

For reliable performance, use Cat5e-rated patch cords and maintain proper cable bend radius and separation from electromagnetic interference sources. When deploying Gigabit links, verify consistent T568 wiring across both ends and test each link after termination using appropriate cable testers.
