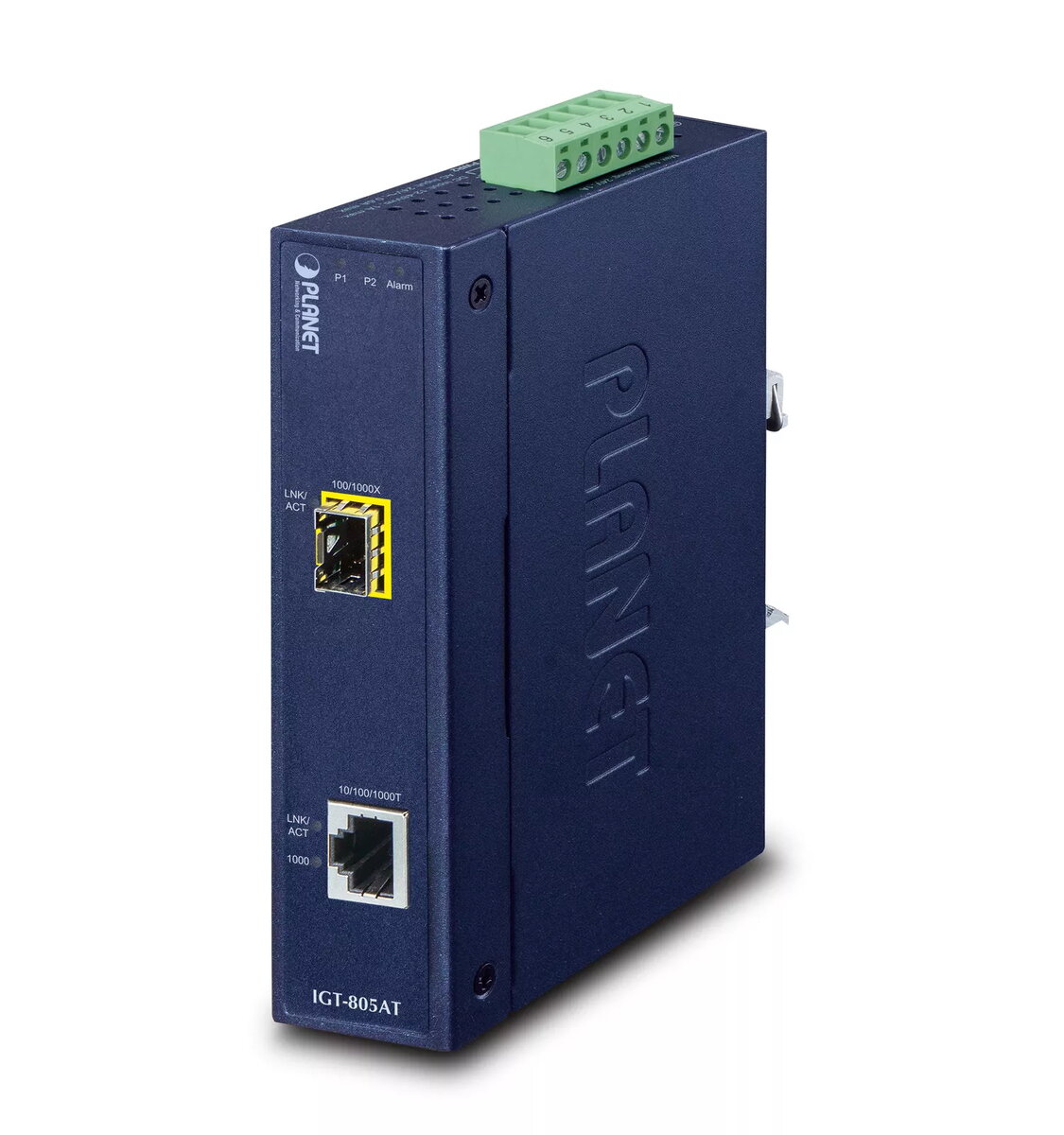

Network Media Converter PLANET IGT-805AT

Name: Network Media Converter PLANET IGT-805AT
Brand: PLANET
SKU: 125490
Price: 94.49 EUR
Availability: InStock

JBL – powerful sound always with you

JBL speakers and headphones for pure and deep sound!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET IGT-805AT is a high-performance network media converter with a maximum data transfer rate of 1000 Mbit/s. It supports various output interfaces including 1000Base-BX, 1000Base-LX, and 1000Base-SX, making it versatile for different networking needs. With a fiber optic connector (SFP) and wired connectivity technology, it ensures reliable connections over long distances up to 120,000 meters. The device operates on an input voltage of 12-48 V and has a typical power consumption of just 3.3 W. Its robust metal housing provides IP30 protection, ensuring durability in various environments.

Available at price 94.49 €: 286 pcs.

Total available for order: 980 pcs.

Warranty: 2 Years

SKU: 125490

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

10.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

13.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.57 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

13.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 98.99 €: 286 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGT-805AT is an industrial Gigabit media converter designed to extend Ethernet networks over copper and fiber in harsh environments. It features one 10/100/1000BASE-T RJ45 port and one 100/1000BASE-X SFP slot housed in an IP30 metal case with redundant power inputs and support for extended operating temperatures from -40 to 75 °C. The device supports jumbo frames up to 9K and provides wire-speed, non-blocking performance for connecting surveillance systems, control equipment or backbone links to high-capacity servers.

Advantages

The IGT-805AT combines industrial-grade durability with flexible fiber options through its dual-speed SFP slot, allowing selection of 100BASE-FX or 1000BASE-SX/LX transceivers. Its compact IP30 metal enclosure offers electromagnetic immunity and resistance to electrical surges, while the redundant DC power inputs and wide input voltage range (12–48 V DC or 24 V AC) improve reliability. Built-in link fault pass-through (LLCF and LLR) and auto MDI/MDI-X simplify management and speed up fault detection.

Suitable for

Extending Gigabit Ethernet and connecting copper to fiber links
Industrial surveillance and video transmission
Connecting control systems and wireless access equipment in outdoor cabinets or plant floors
Linking to backbone or high-power servers where long-distance fiber is required

Key specifications

Model: PLANET IGT-805AT
Ports: 1 × 10/100/1000BASE-T (RJ45), 1 × 100/1000BASE-X (SFP)
Maximum data rate: 1000 Mbit/s
Supported SFP types: 100BASE-FX, 1000BASE-SX/LX (user-selectable)
Maximum fiber distance: up to 120 km (depending on SFP transceiver and fiber type)
Jumbo frame support: up to 9K
Power input: 12–48 V DC or 24 V AC; dual redundant DC inputs
Operating temperature: -40 to 75 °C
Protection: IP30 metal case
Weight: 0.395 kg

How to use

Install the IGT-805AT on a DIN rail or mount it on a wall inside an appropriate cabinet. Insert the desired SFP transceiver (100BASE-FX or 1000BASE-SX/LX) into the SFP slot, then connect the fiber cable and the copper RJ45 cable to the corresponding ports. Provide power using the DC inputs (connect redundant supplies if required) or the supported AC input. The device supports auto MDI/MDI-X, so standard patch or straight-through cables can be used. Monitor link status and faults through the link fault pass-through behavior to quickly identify media failures.

Usage recommendations

Use SFP transceivers that match required distance and fiber type (multi-mode or single-mode). For critical installations, employ redundant power sources and enable link fault pass-through monitoring to ensure fast detection of link failures. Place the unit in a protected cabinet when possible to reduce exposure to extreme mechanical stress.

Specifications

Internal: The product is built in.: No
Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 120000 m
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.: SFP

All features

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC Part 15 Class A, CE

Operational conditions

Storage relative humidity (H-H):: 5 - 95
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -40 - 75
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -40 - 75

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.395 kg
Height: The measurement of the product from head to foot or from base to top.: 135 mm
Depth: The distance from the front to the back of something.: 87 mm
Width: The measurement or extent of something from side to side.: 32 mm

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 3.3 W
Input voltage: The voltage (V) which is required to power the product.: 12 - 48

Ports & interfaces

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.: SFP
Fiber ports quantity: The number of sockets (ports) for fibers (cables).: 1
Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.: 1
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.: Wired

Features

LED indicators:: Yes
Product colour: The colour e.g. red, blue, green, black, white.: Blue
Housing material: What the casing of the product is made of.: Metal
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP30
DIN rail mounting:: Yes
Internal: The product is built in.: No

Performance

Maximum transfer distance: The greatest distance over which the data/signal can be transferred.: 120000 m

Network

Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Ethernet LAN data rates: The different speed levels of the Ethernet LAN connection.: 10, 100, 1000
Converter output interface:: 1000Base-SX, 1000Base-LX, 1000Base-BX
Maximum data transfer rate: The maximum speed with which data can be transmitted from one device to another.: 1000 Mbit/s
