dbx DBXDI1 Active Direct Box, 10-70000 Hz, 9V Battery or DC Powered

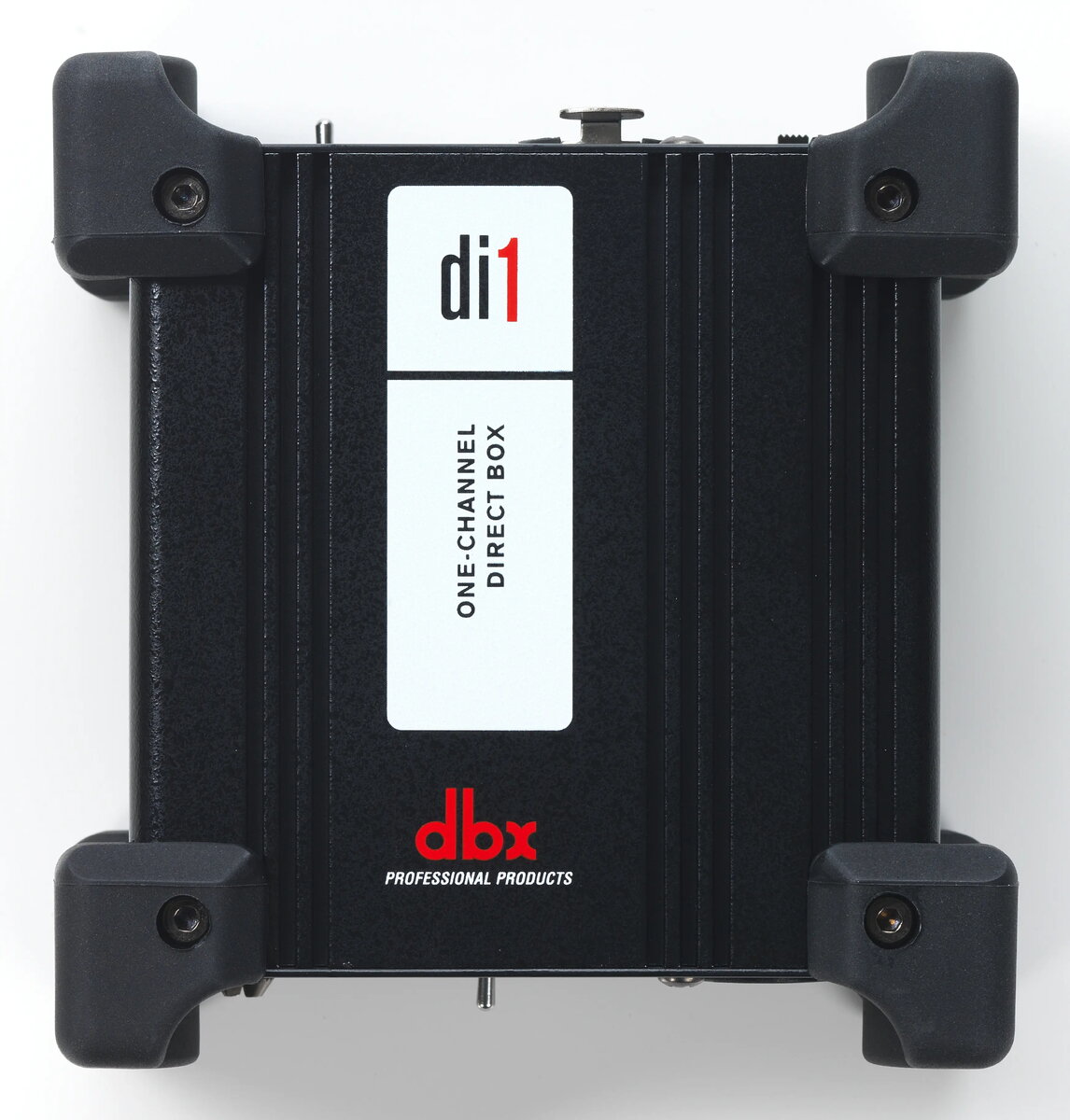

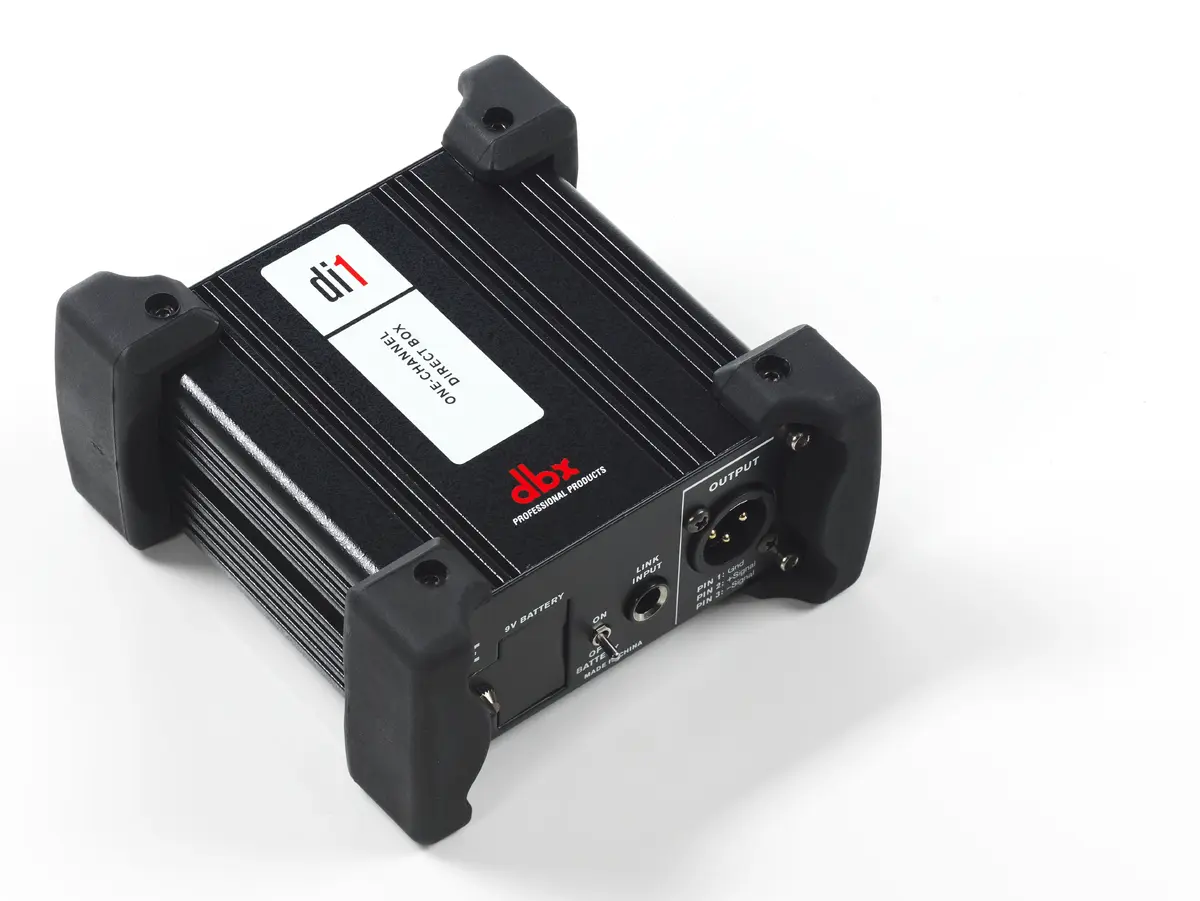

The dbx DBXDI1 is a professional active direct box engineered to convert high-impedance instrument signals into balanced low-impedance signals suitable for mixing consoles. This device ensures high-fidelity audio transmission across a wide frequency range, making it an essential tool for maintaining signal integrity in both live sound and studio recording environments. Housed in a robust metal chassis, it is built to withstand the rigors of professional use while providing consistent performance.

Advantages

The primary advantage of the dbx DBXDI1 is its ability to provide clean, noise-free signal conversion, which is critical for professional audio setups. By utilizing active circuitry, it maintains the harmonic richness of instruments like electric guitars, basses, and keyboards even over long cable runs. The inclusion of a ground lift switch helps eliminate unwanted hums and ground loops, while the attenuation control allows for flexible gain staging. Furthermore, the integration of HARMAN ioSYS technology simplifies the setup process by allowing the device to be recognized by compatible systems, ensuring a streamlined workflow for musicians and sound engineers.

Suitable for

• Connecting electric guitars and basses directly to mixing consoles
• Integrating electronic keyboards and synthesizers into professional audio systems
• Live stage performances requiring reliable signal transmission
• Studio recording sessions where high-fidelity signal path is required
• Reducing noise and interference in complex audio setups

When it may not be suitable

This active direct box may not be the optimal choice for passive signal routing scenarios where phantom power or battery power is unavailable and the user prefers a passive design. Additionally, users who do not require the specific impedance matching or the advanced integration features of the ioSYS technology might find simpler, more basic direct boxes sufficient for their needs.

Key specifications

• Frequency range: 10 Hz to 70000 Hz
• Input impedance: 250,000 Ohms
• Output impedance: 600 Ohms
• Power options: 9V battery or DC power

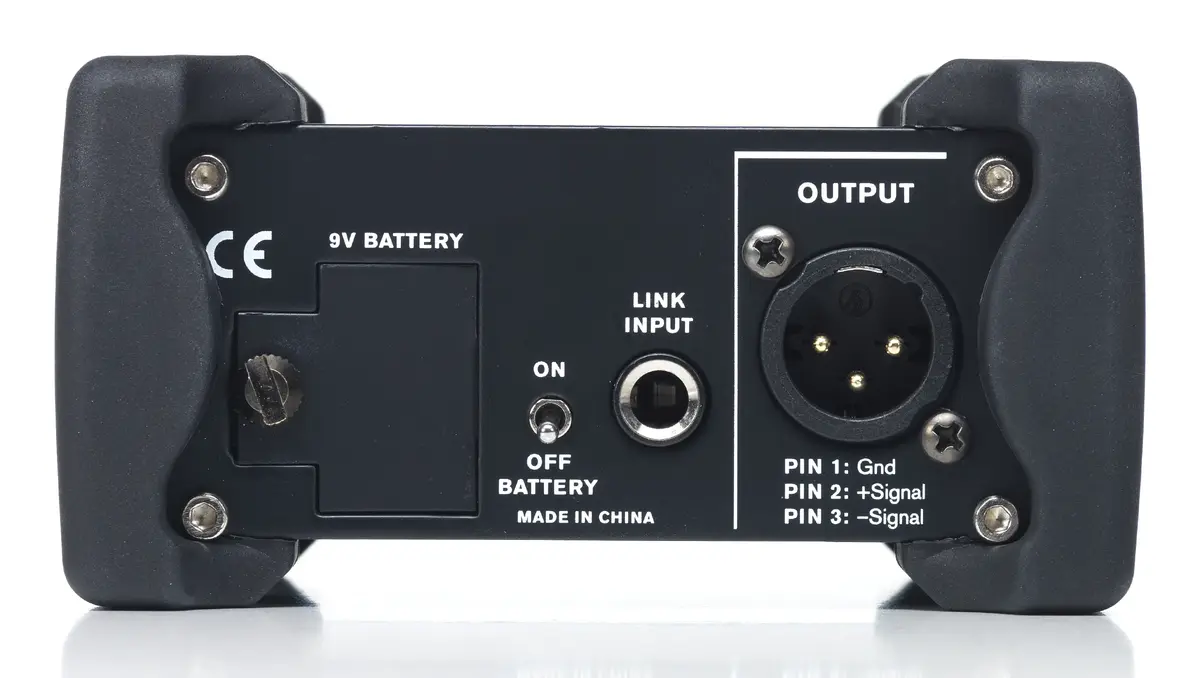

• Connectors: TS and XLR inputs and outputs
• Chassis material: Metal
• Dimensions: 100 mm x 102 mm x 45 mm

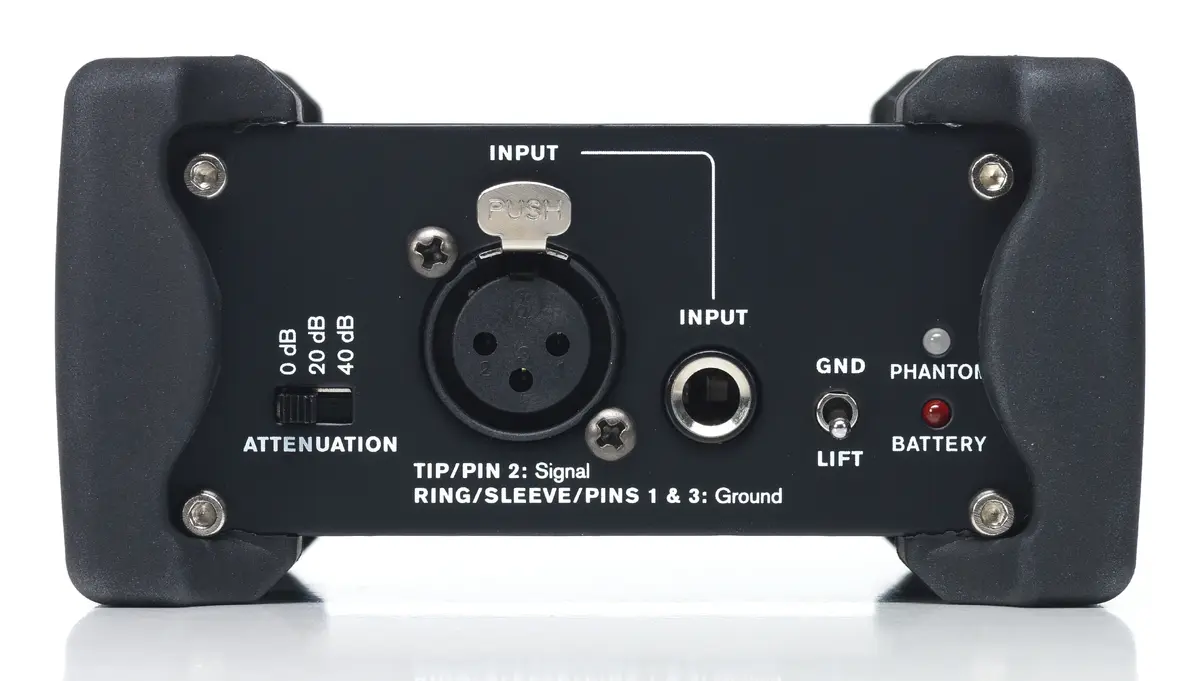

• Features: Ground lift switch, attenuation control, LED indicators for battery and phantom power

How to use

To use the dbx DBXDI1, connect your instrument output to the TS input jack on the unit. Connect the balanced XLR output to your mixing console or audio interface using a standard microphone cable. If you are using a passive instrument, ensure the unit is powered via a 9V battery or an external DC power source. Use the ground lift switch if you encounter audible hum or noise in your signal path. The attenuation control can be adjusted to prevent clipping if the input signal level is too high.

What to consider before purchase

• Ensure your audio setup supports either 9V battery power or external DC power
• Verify that your mixing console or interface has the necessary XLR inputs
• Consider if you require the advanced ioSYS compatibility for your specific ecosystem
• Check if the physical dimensions fit within your existing pedalboard or rack setup

Usage recommendations

For the best audio performance, always use high-quality shielded cables to connect your instruments to the direct box. If you are performing in a venue with complex electrical wiring, keep the ground lift switch engaged to minimize potential interference. Regularly check the battery LED indicator to ensure the unit remains powered during long sessions.
