header-product Electrical distribution board No name 32654 — 63 A, 230–400 V, 50 Hz, 595 mm width
226.49 €

Electrical distribution board No name 32654 — 63 A, 230–400 V, 50 Hz, 595 mm width

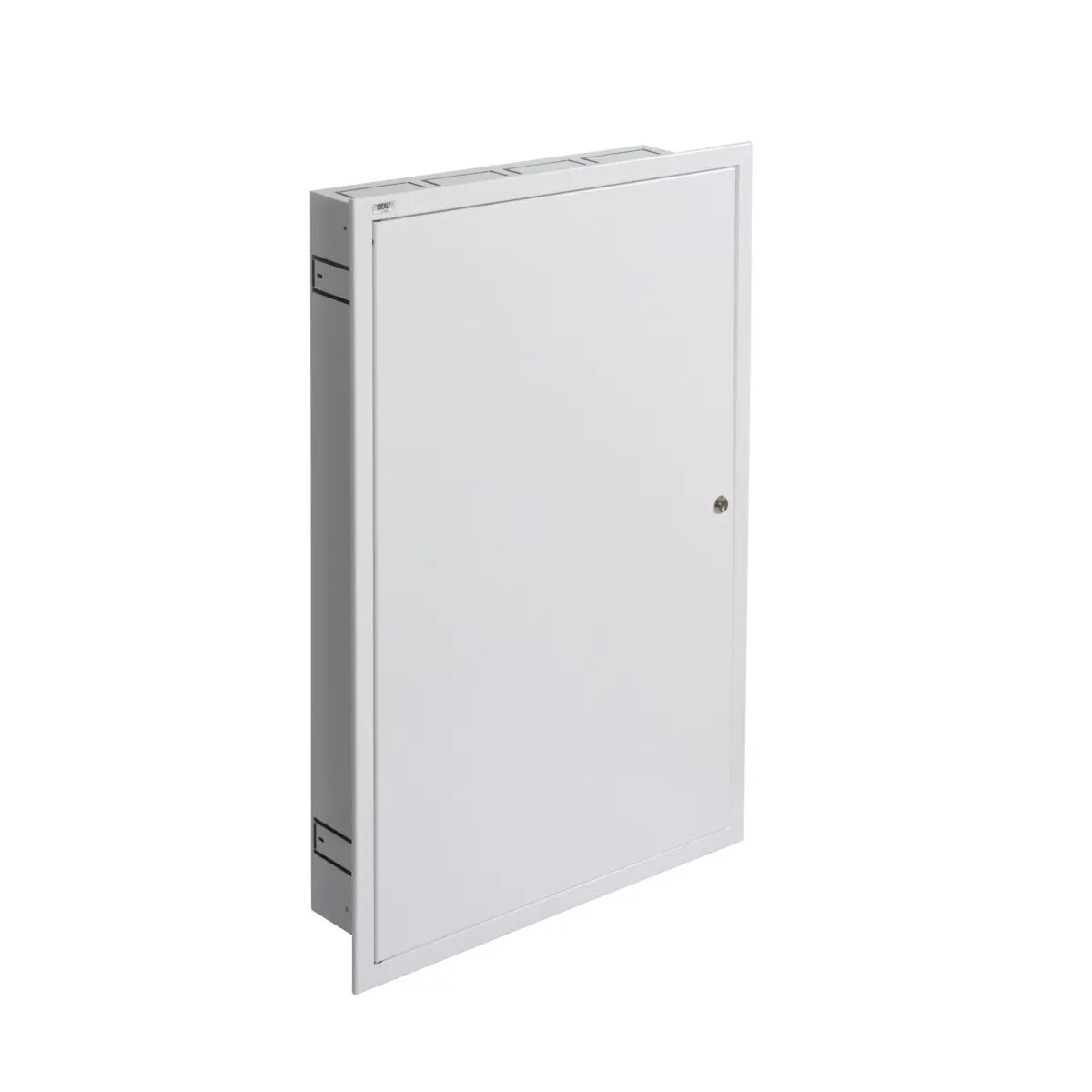

Distribution board No name 32654 — 63 A, 230–400 V Photo 1

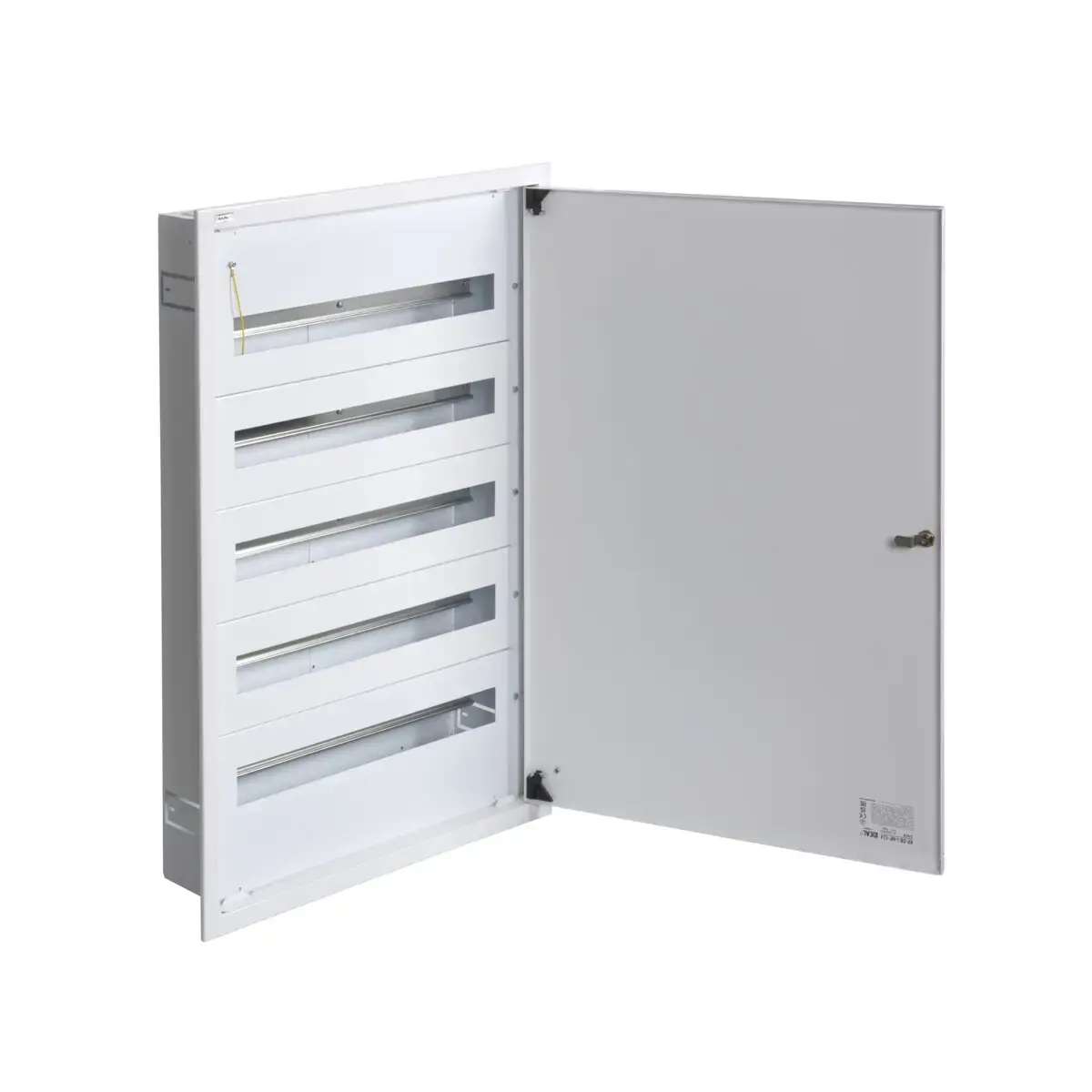

Distribution board No name 32654 — 63 A, 230–400 V Photo 2

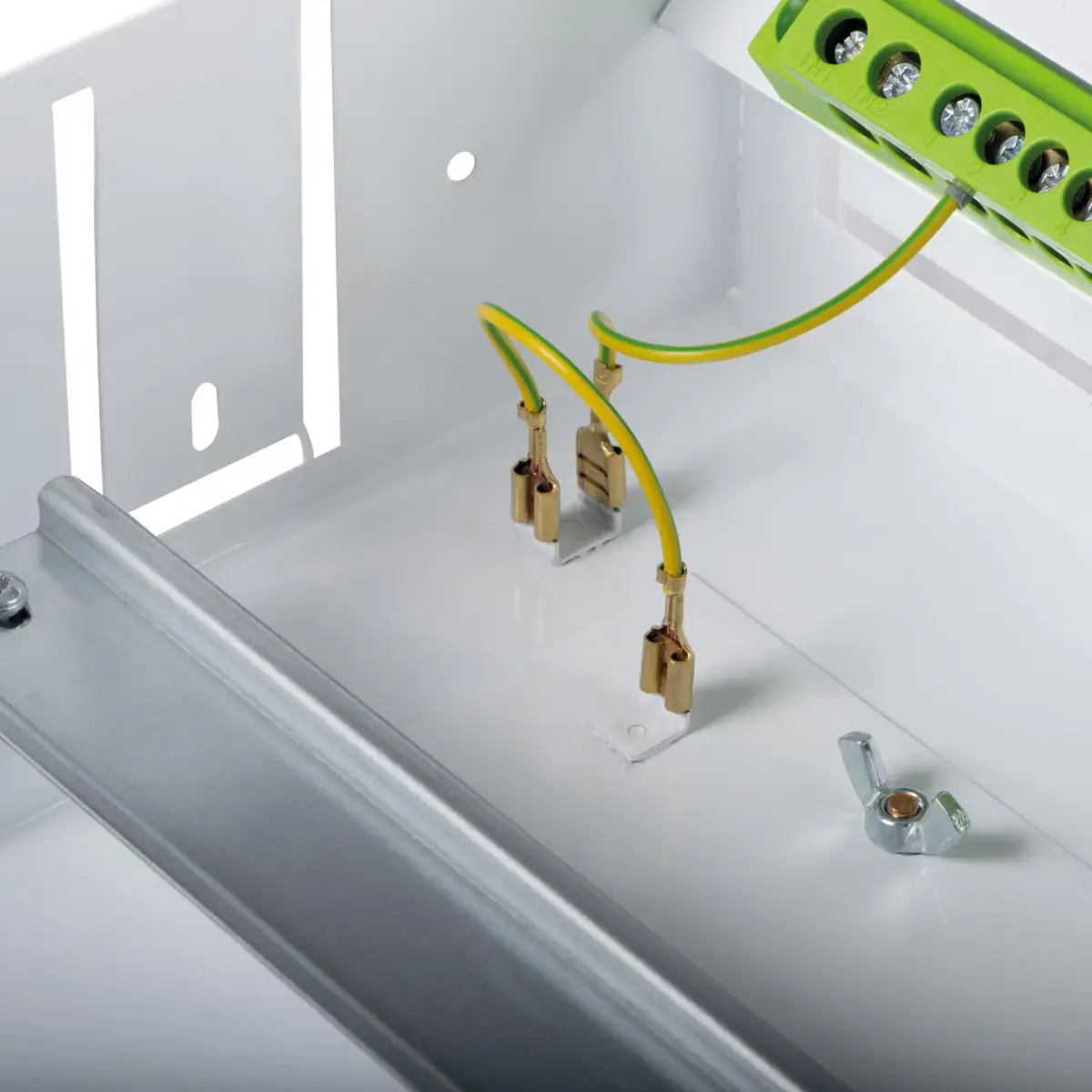

Distribution board No name 32654 — 63 A, 230–400 V Photo 3

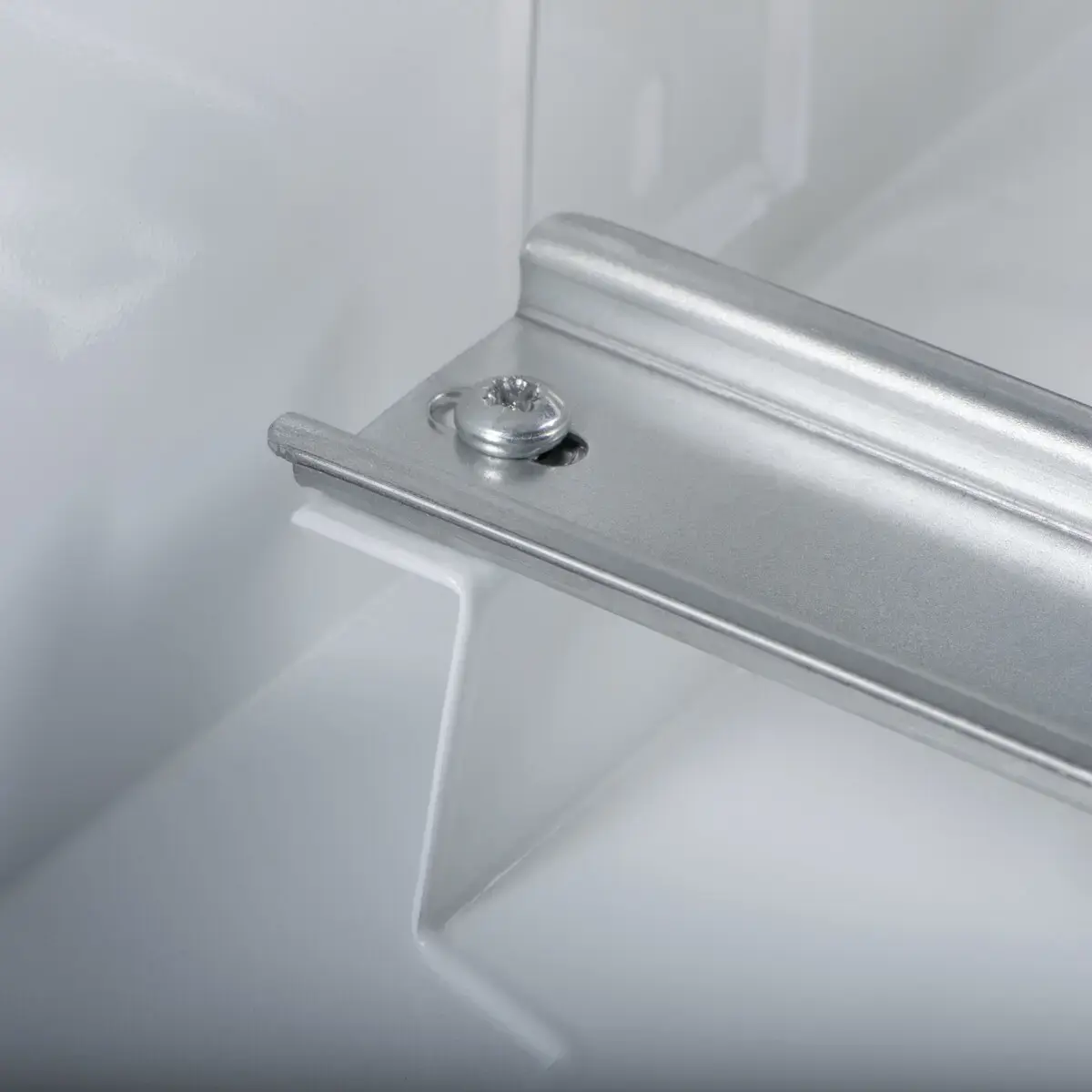

Distribution board No name 32654 — 63 A, 230–400 V Photo 4

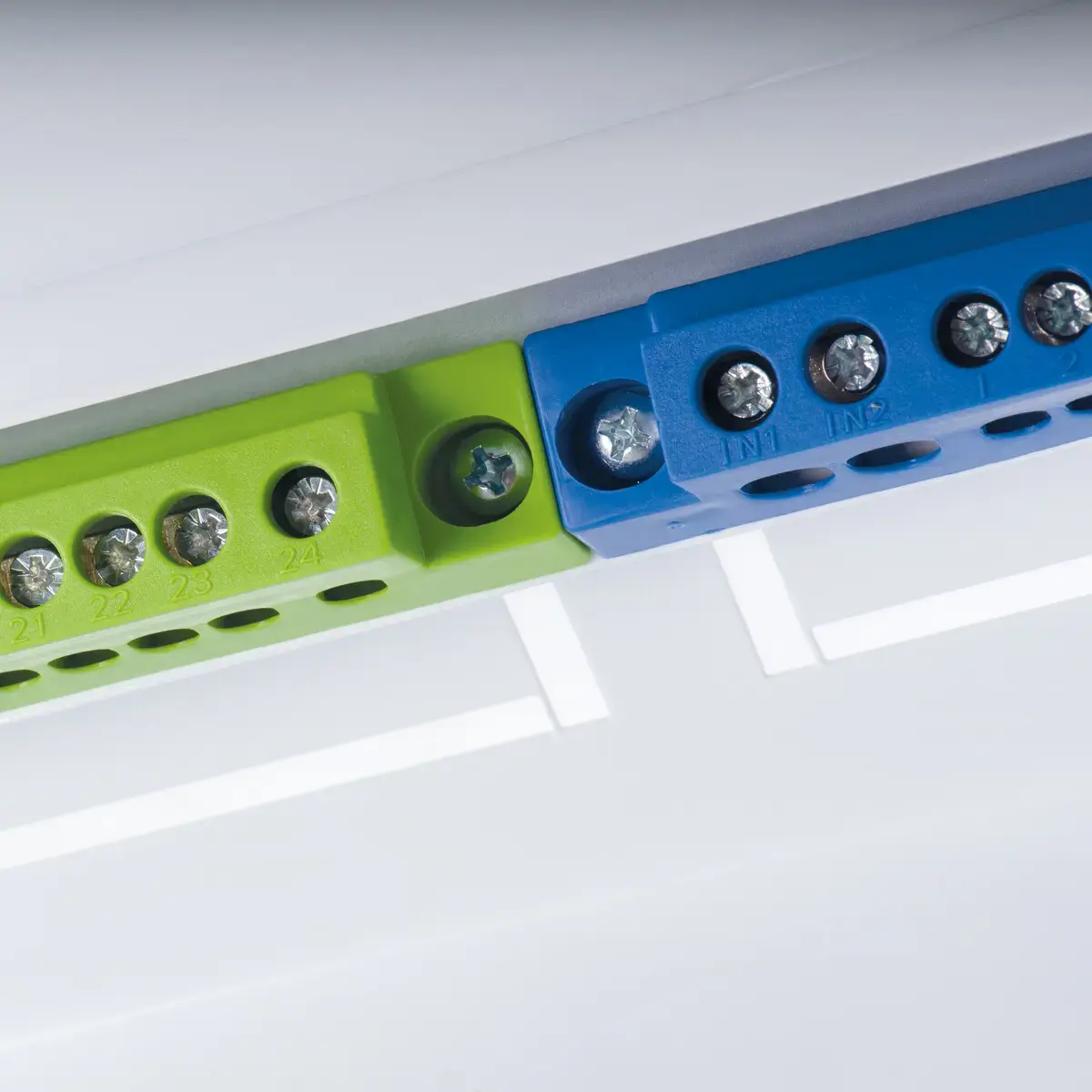

Distribution board No name 32654 — 63 A, 230–400 V Photo 5
Distribution board No name 32654 — 63 A, 230–400 V Photo 6

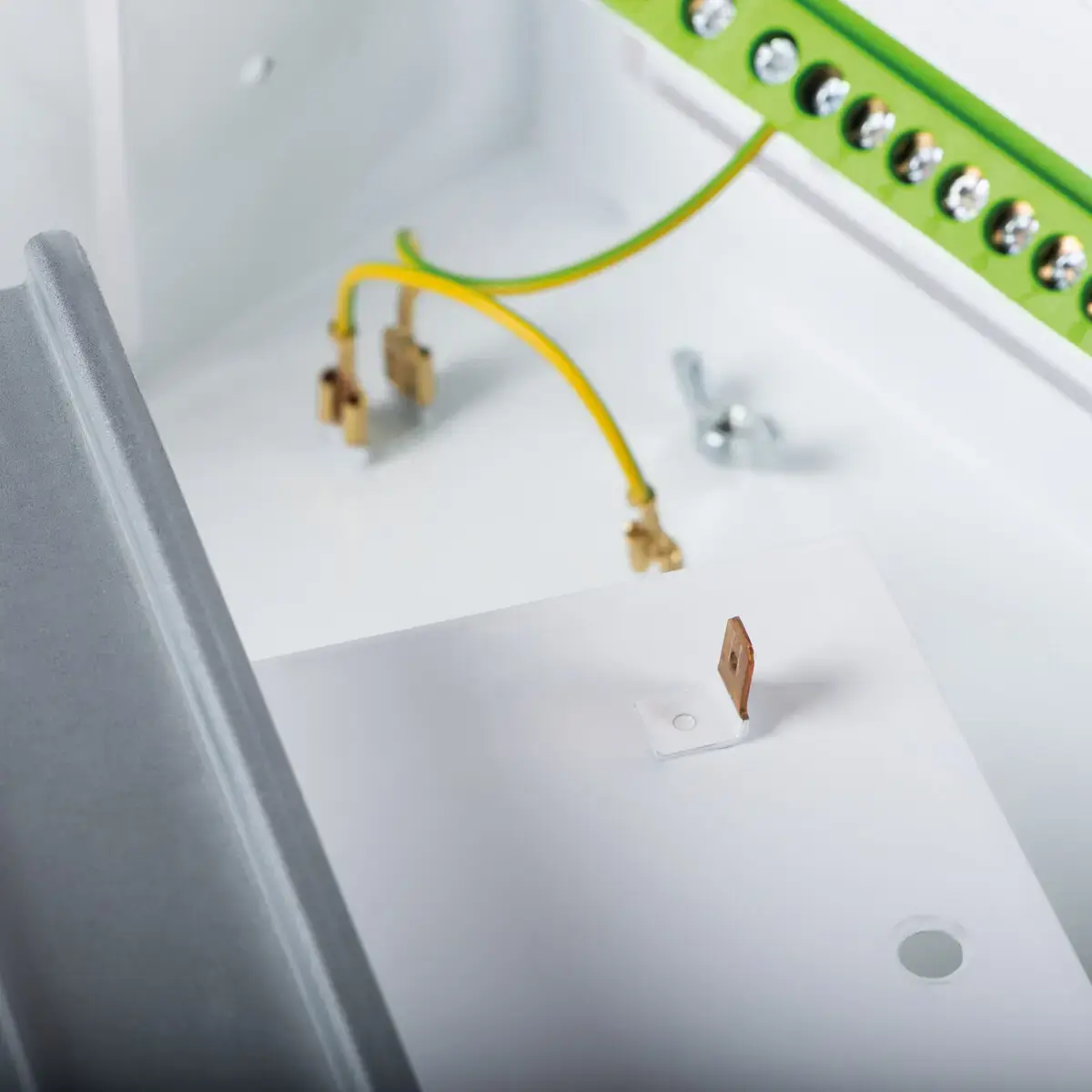

Distribution board No name 32654 — 63 A, 230–400 V Photo 7
Distribution board No name 32654 — 63 A, 230–400 V Photo 8
Distribution board No name 32654 — 63 A, 230–400 V Photo 9
Distribution board No name 32654 — 63 A, 230–400 V Photo 10
Distribution board No name 32654 — 63 A, 230–400 V Photo 1
Distribution board No name 32654 — 63 A, 230–400 V Photo 2
Distribution board No name 32654 — 63 A, 230–400 V Photo 3
Distribution board No name 32654 — 63 A, 230–400 V Photo 4
Distribution board No name 32654 — 63 A, 230–400 V Photo 5
Distribution board No name 32654 — 63 A, 230–400 V Photo 6
Distribution board No name 32654 — 63 A, 230–400 V Photo 7
Distribution board No name 32654 — 63 A, 230–400 V Photo 8
Distribution board No name 32654 — 63 A, 230–400 V Photo 9
Distribution board No name 32654 — 63 A, 230–400 V Photo 10
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Electrical distribution board No name 32654 — 63 A, 230–400 V, 50 Hz, 595 mm width

{{email}}
You keep track of price changes

Electrical distribution board No name 32654 — 63 A, 230–400 V, 50 Hz, 595 mm width

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Electrical distribution board No name model 32654, designed for AC systems with input voltage 230–400 V and input current up to 63 A at 50 Hz. Compact enclosure with 595 mm width and protection class I, weight 12.5 kg. Suitable for residential and light commercial power distribution, breaker and busbar installation, and circuit segregation.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 12107929
Manufacturer: No name
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 10.27 € (Weight: 12.54 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 75.5 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 6.29 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Electrical distribution board No name model 32654 is a modular metal flush-mounted enclosure designed for AC systems with input voltage 230–400 V and nominal input current up to 63 A at 50 Hz. The compact cabinet has a 595 mm width, protection class I and a mass of 12.5 kg. It provides five rows with 24 modular positions per row for standard DIN-rail devices such as miniature circuit breakers (MCBs), residual current devices (RCDs) and other DIN-mounted components, enabling tidy wiring, secure device mounting and mechanical plus electromagnetic protection for residential and light commercial installations.

Advantages

The metal construction increases mechanical durability and provides effective electromagnetic screening compared with non-metallic enclosures while enabling a reliable earth connection to meet protection class I requirements. Flush mounting yields a low-profile, space-saving installation in finished walls and contributes to a tidy interior appearance. The internal layout supports standard DIN-rail modular devices, simplifying mounting, wiring and future expansion. Removable front covers and configurable knockouts permit easy cable entry and maintenance while maintaining structural integrity.

Suitable for

  • New residential electrical installations requiring multiple modular devices
  • Light commercial or small office electrical distribution panels
  • Electrical upgrades or renovations where additional module capacity is needed
  • Installations that require a flush-mounted, low-profile metal enclosure with EMI shielding

Key specifications

  • Voltage range: 230–400 V AC, 50 Hz
  • Nominal input current: up to 63 A
  • Enclosure width: 595 mm
  • Protection class: Class I (requires earthing)
  • Weight: 12.5 kg
  • Module capacity: 5 rows × 24 modules per row (total modular positions)
  • Mounting: Flush-mounted (recessed) installation
  • Material: Metal housing providing mechanical protection and EMI shielding
  • Device accommodation: Standard DIN-rail mounted modular components (MCBs, RCDs, contactors, terminal blocks)
  • Access: Removable front cover/panel for device installation and maintenance
  • Cable entry: Side and/or rear knockouts or designated entry points (manufacturer-configurable)

How to use

Recess the distribution box into the prepared wall opening sized to the manufacturer's cut-out and secure it to the building structure. Install DIN rails and mount required modular devices following the electrical project diagrams and separation requirements between incoming mains and branch circuits. Route incoming and outgoing conductors through the designated knockouts or entry points, terminate conductors on breakers, RCDs and busbars, and perform insulation and continuity checks before restoring the front cover. Ensure all wiring and protective device selection complies with applicable wiring regulations and is carried out by a qualified electrician.

Usage recommendations

Plan device layout and allow spare module positions for future expansion. Ensure correct earthing of the metal enclosure and use appropriate cable glands, grommets or seals at entry points to maintain mechanical protection and fire safety. Adhere to local electrical codes and have installation and testing performed by certified personnel.

Specifications

Weight:
12.54 kg
All features
Input current:
63
AC input voltage:
230 - 400

Weight & dimensions

Weight:
12.54 kg
Width:
595 mm

Design

Certification:
PN-EN 62208
Housing material:
Steel
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30

Features

Protection class:
I

Power

Input frequency:
50

Description

Machine translation. Load original
