12U Wall-mount Rack Enclosure SRW12USDPG

Name: Wall-mount 12U Rack Enclosure SRW12USDPG SRW12USDPG
Brand: No name
SKU: 11923926
Price: 984.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

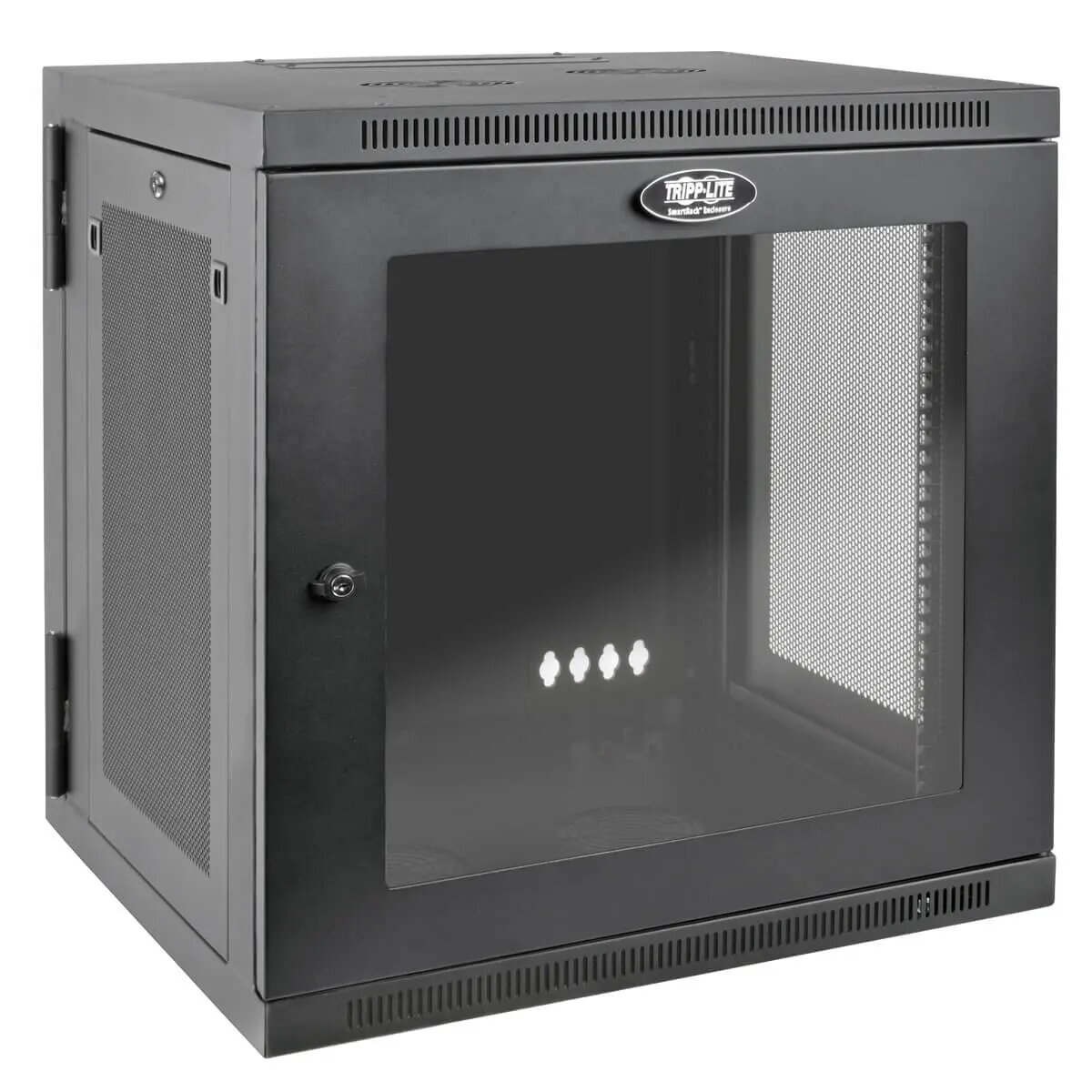

Wall-mount 12U Rack Enclosure SRW12USDPG — 12U, 600.2×647.7×636.5 mm, IP20, acrylic window

12U Wall-mount Rack Enclosure SRW12USDPG Photo 1

12U Wall-mount Rack Enclosure SRW12USDPG Photo 2

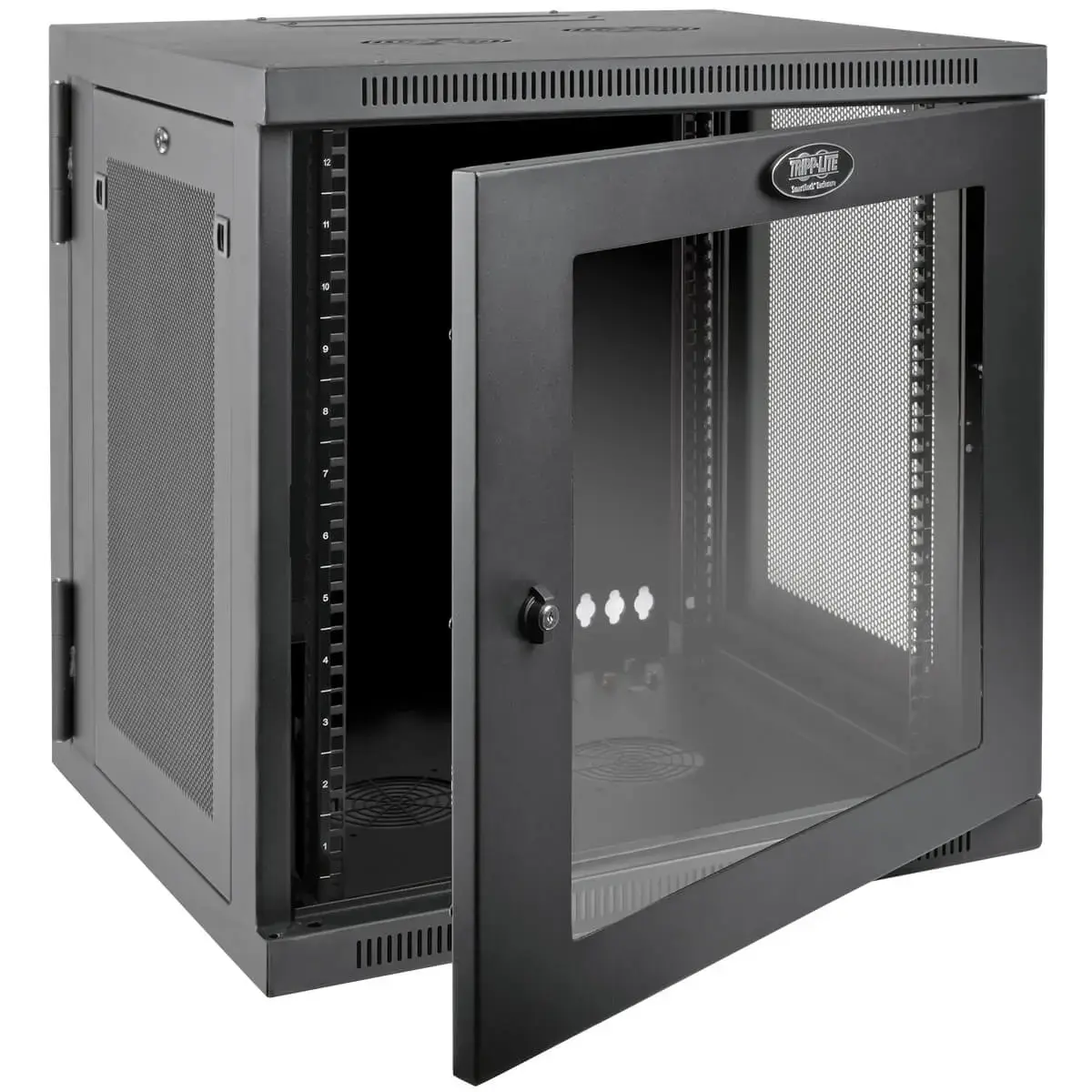

12U Wall-mount Rack Enclosure SRW12USDPG Photo 3

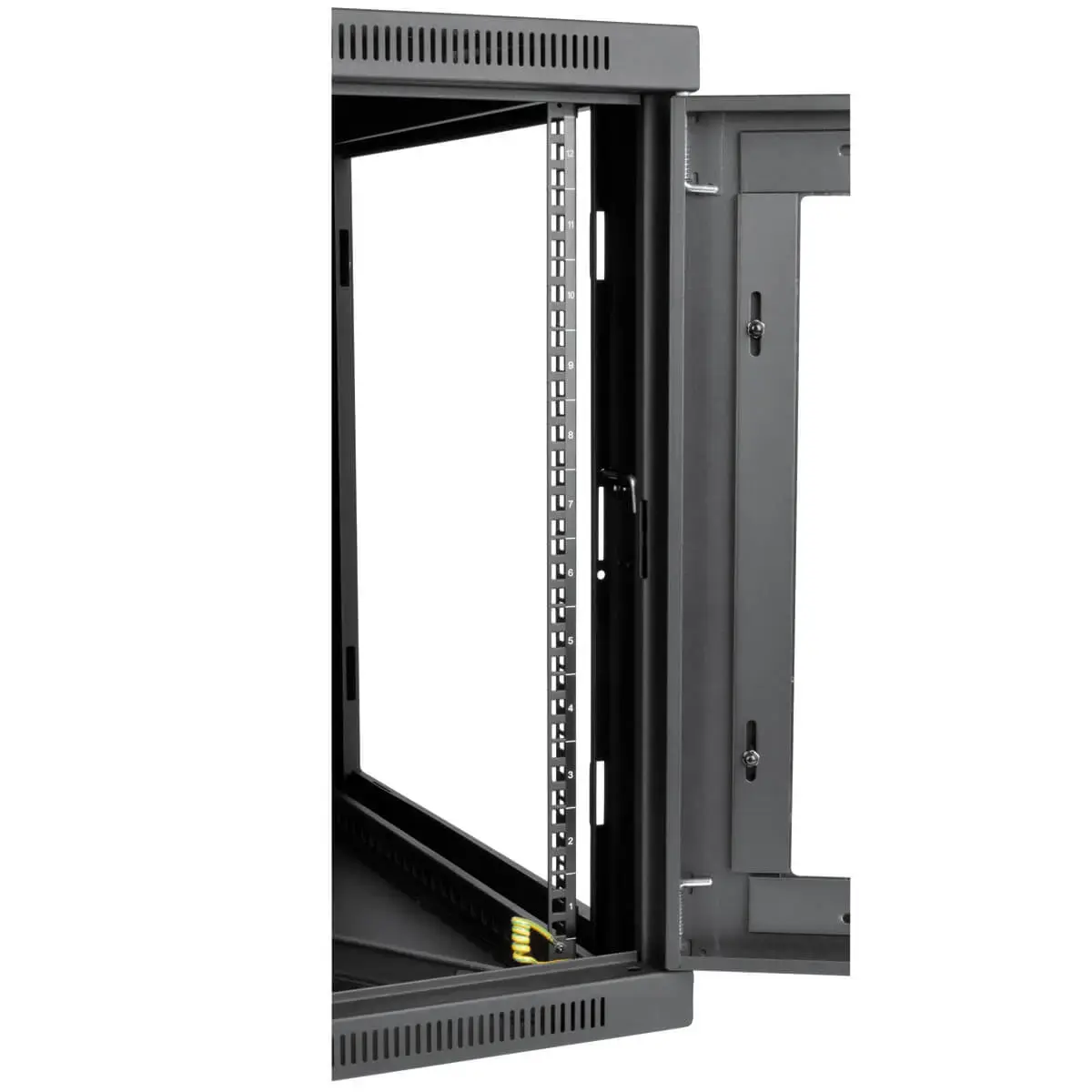

12U Wall-mount Rack Enclosure SRW12USDPG Photo 4

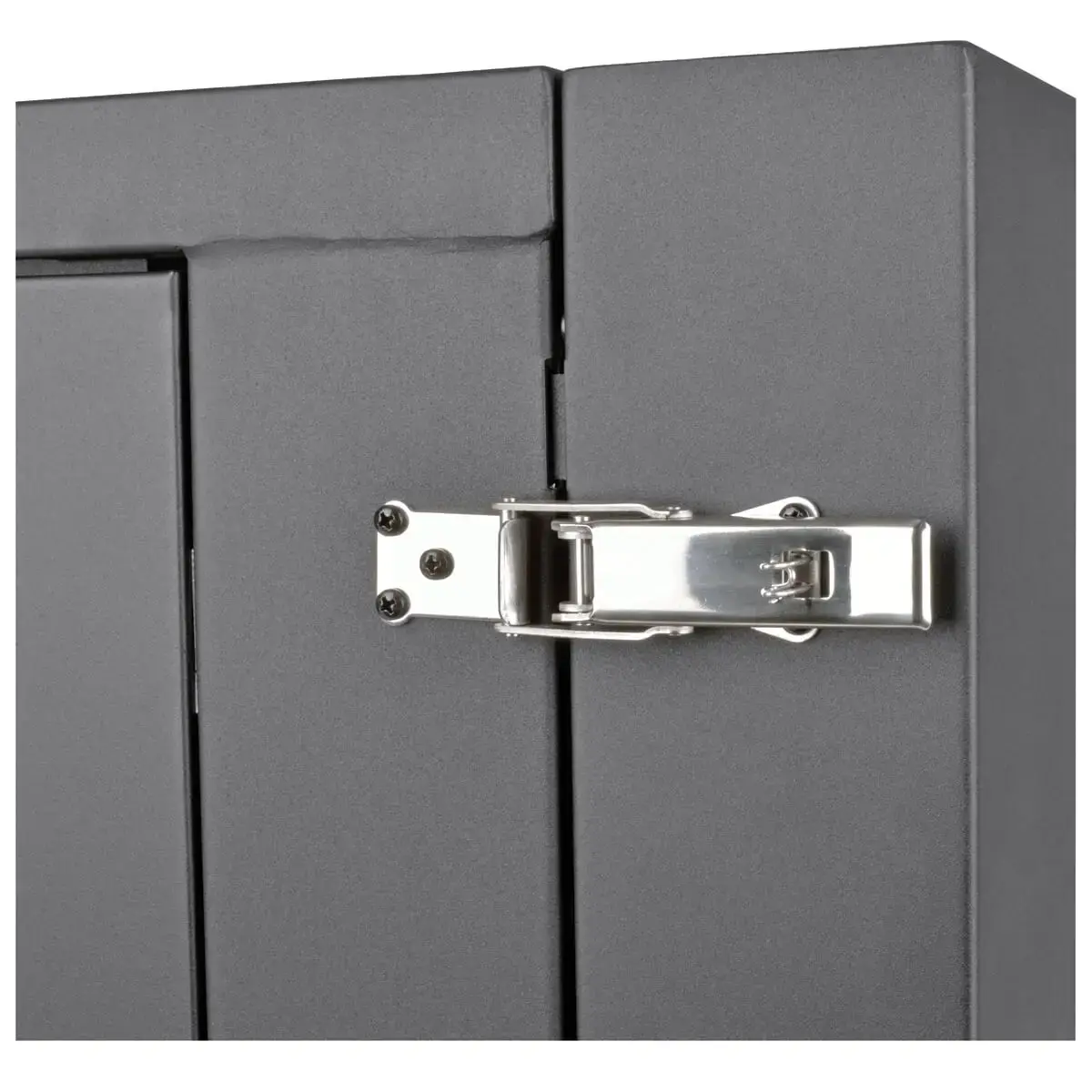

12U Wall-mount Rack Enclosure SRW12USDPG Photo 5

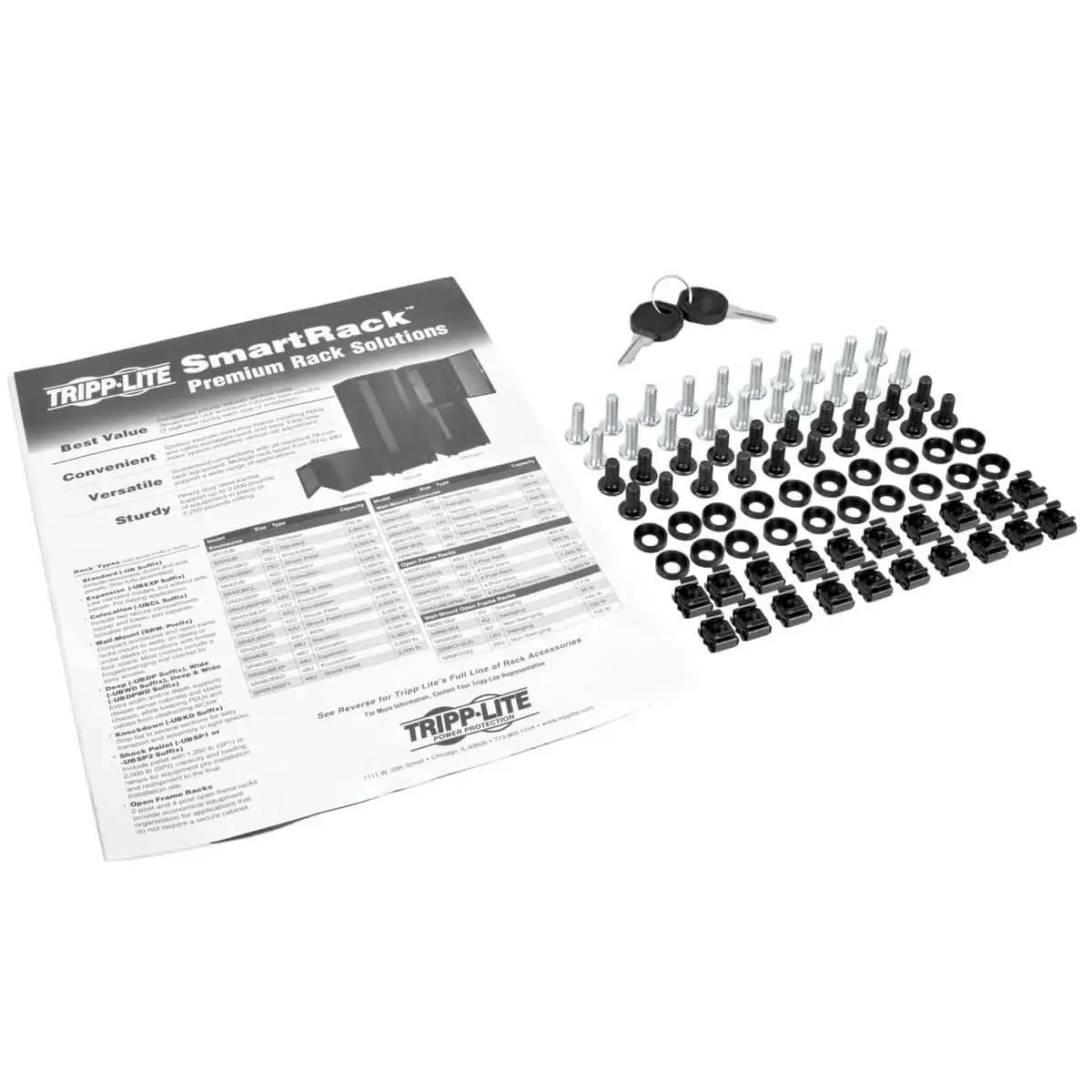

12U Wall-mount Rack Enclosure SRW12USDPG Photo 6

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

SRW12USDPG wall-mount small rack enclosure designed for UPS-depth equipment and network devices. 12U rack capacity with external dimensions 600.2 mm (W) × 647.7 mm (D) × 636.5 mm (H), IP20 protection and clear acrylic front window. Hinged rear for service access, black finish and 37.01 kg weight. Suited for server, UPS and network patch installations in tight spaces.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 11923926

Manufacturer: No name

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

17.08.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 37.01 kg)

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 328.33 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 27.36 euros per month

Leasing for legal entities: from 34.28 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The SRW12USDPG wall-mount 12U rack enclosure is a compact cabinet for EIA-standard 19-inch equipment, designed for installations where floor space is limited. With external dimensions of 600.2 × 647.7 × 636.5 mm and IP20 protection, this steel enclosure supports UPS-depth devices, network switches, patch panels and small servers while keeping equipment organized and secure. The front door features a clear shatter-resistant acrylic window for visual monitoring, and the unit ships fully assembled for immediate wall mounting.

Advantages

The cabinet is constructed from heavy-duty steel with a black powder-coated finish and provides a maximum load capacity of 90.7 kg. A hinged design allows the cabinet to swing away from the wall for straightforward rear access during installation and maintenance. Lockable doors and removable vented side panels improve physical security and airflow, while reversible doors and pre‑punched top and bottom cable ports simplify routing and placement in varied environments.

Suitable for

Network switches and patch panels in wiring closets
UPS units and battery packs with UPS-depth profiles
Small rack servers and appliances in offices or retail locations
Edge IT equipment in classrooms, branch offices and telecom rooms

Key specifications

Rack capacity: 12U for 19-inch EIA-standard equipment
External dimensions (W×D×H): 600.2 × 647.7 × 636.5 mm
Maximum supported equipment depth: up to 24.5 inches (adjustable rails)
Protection rating: IP20
Material and finish: heavy-duty steel with black powder coat
Load capacity: up to 90.7 kg
Front door: lockable with shatter-resistant clear acrylic window
Ventilation: vented top, bottom and removable side panels for airflow
Mounting: wall-mountable with hinged rear access; reversible door orientation

How to use

Mount the fully assembled SRW12USDPG to a suitable load-bearing wall following local mounting regulations and using appropriate fixings. Adjust the vertical mounting rails in 7/8-inch increments to match equipment depth (supports devices up to approximately 24.5 inches deep). Install 19-inch rack equipment using the numbered rack spaces and compatible fasteners, route cabling through the top or bottom ports, and secure the front and rear doors. For service access, swing the cabinet away from the wall on its hinge and open the rear door; side panels can be removed for additional access during installation or maintenance.

Usage recommendations

Place the enclosure in a dry, ventilated area and allow clearance for the door to open and for heat dissipation. Use compatible mounting hardware and observe the 90.7 kg maximum load limit. When installing UPS units or high-heat equipment, ensure adequate ventilation or supplementary cooling and verify that cable routing does not obstruct airflow or access to the front acrylic window for monitoring.

Specifications

Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 90 kg
Rack capacity: The spase that device fill in rack.: 12U

All features

Mounting type: Type of mounting e.g. wall mounting.: Wall
Locking:: Yes

Other features

Package dimensions (WxDxH):: 715 x 760 x 745

Logistics data

Products per master (outer) case:: 1 pc(s)
Master (outer) case gross weight:: 41730 g
Master (outer) case height:: 745 mm
Master (outer) case length:: 760 mm
Master (outer) case width:: 715 mm
Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Packaging data

Package weight: Weight of the packaged product.: 41730 g
Package height: The distance from the top to the bottom of the packaging.: 745 mm
Package depth: The distance from the front to the back of the packaging.: 760 mm
Package width: The distance from one side of the packaging to the other.: 715 mm
Manual:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 37.01 kg
Height: The measurement of the product from head to foot or from base to top.: 636.5 mm
Depth: The distance from the front to the back of something.: 647.7 mm
Width: The measurement or extent of something from side to side.: 600.2 mm

Features

Cable entry location:: Rear
Reversible doors: The doors on the device can be moved so they can open from the right hand side (hinged on the left) or the left hand side (hinged on the right).: Yes
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".: IP20
Side panels included: Indicates if the side panels are included or not: Yes
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Product colour: The colour e.g. red, blue, green, black, white.: Black
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 90 kg
Rack capacity: The spase that device fill in rack.: 12U

Hide Show all
