LevelOne 2.5Gbps Single-mode SFP Transceiver

Name: LevelOne 2.5Gbps Single-mode SFP Transceiver, 520223
Brand: OEM
SKU: 12417724
Price: 45.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

LevelOne 2.5Gbps Single-mode SFP Transceiver, 1310nm, 2km

LevelOne 2.5Gbps Single-mode SFP Transceiver Photo 1

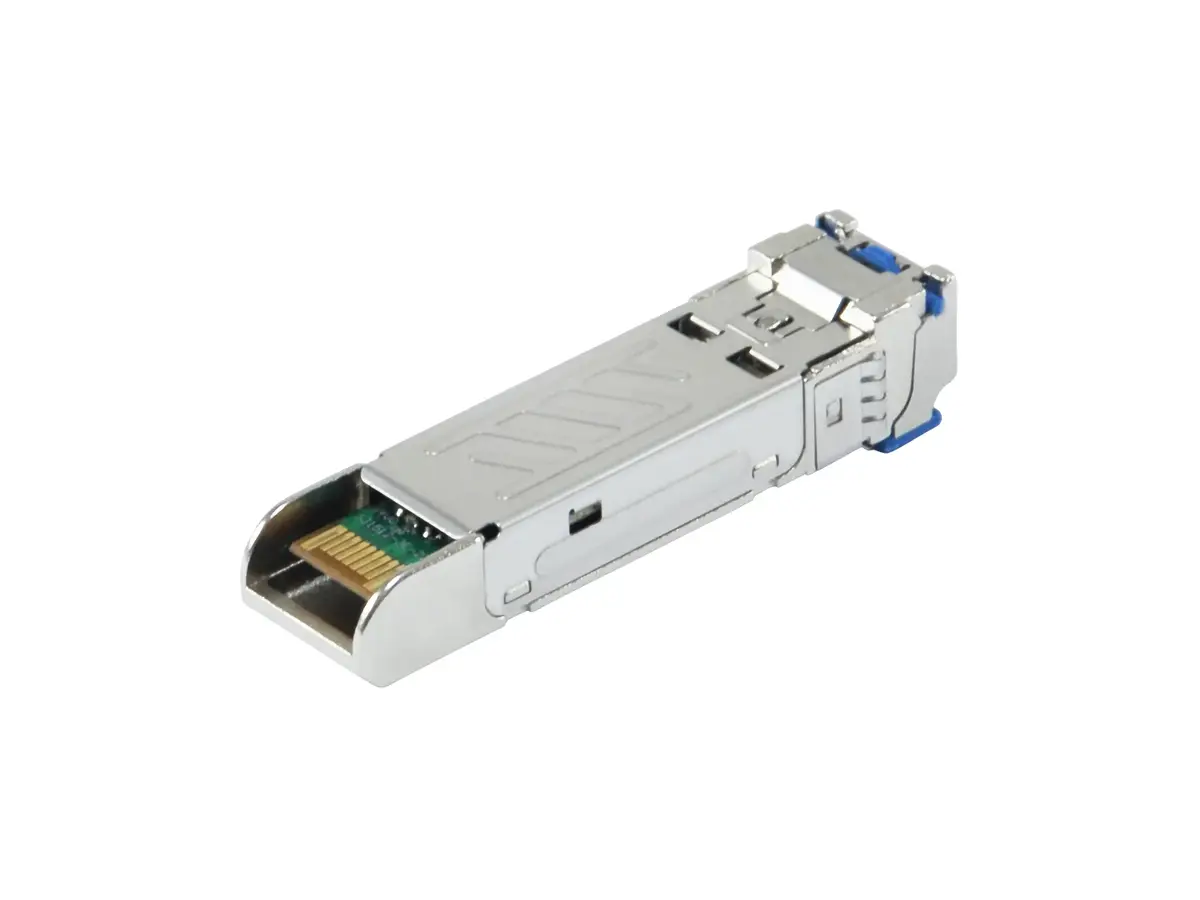

LevelOne 2.5Gbps Single-mode SFP Transceiver Photo 2

LevelOne 2.5Gbps Single-mode SFP Transceiver Photo 3

LevelOne 2.5Gbps Single-mode SFP Transceiver Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne 2.5Gbps Single-mode SFP Transceiver is a high-performance fiber optic module designed for reliable data transmission. It supports a maximum data rate of 2500 Mbit/s and operates at a 1310nm wavelength over a distance of up to 2km. Featuring a standard SFP interface and low power consumption of 1W, this module is ideal for network infrastructure upgrades, ensuring stable connectivity and compliance with international standards like CE, FCC, and RoHS.

Available for order: 8 pcs.

Warranty: 2 Years

SKU: 12417724

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.31 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne 2.5Gbps Single-mode SFP Transceiver is a high-performance fiber optic module designed for reliable data transmission in network environments. It supports a maximum data rate of 2500 Mbit/s and operates at a 1310nm wavelength over single-mode fiber, reaching distances of up to 2km. Featuring a standard SFP interface and low power consumption of 1W, this module is built for efficiency and stable connectivity in professional networking setups.

Advantages

This transceiver offers a robust solution for high-speed data transfer, utilizing a Fabry-Perot laser diode and a PIN-TIA photo-detector to ensure signal integrity. Its hot-swappable design allows for easy installation or replacement without interrupting network operations. Furthermore, the inclusion of Digital Diagnostics Monitoring (DDM) provides administrators with real-time status updates, while its compliance with international standards ensures broad compatibility and operational safety.

Suitable for

High-speed Gigabit Ethernet network infrastructure
Long-distance data transmission up to 2km
Enterprise-level network upgrades
Fiber optic communication systems requiring 2.5Gbps throughput

This module may not be suitable for multi-mode fiber installations, as it is specifically engineered for single-mode fiber optic cabling. It is also not intended for environments exceeding the commercial operating temperature range of 0°C to 70°C.

Key specifications

Data transfer rate: 2500 Mbit/s
Wavelength: 1310 nm
Maximum distance: 2 km
Connector type: Duplex LC
Power consumption: 1 W
Operating temperature: 0°C to 70°C
Form factor: SFP

How to use

To install the transceiver, ensure your networking device is powered on or supports hot-swapping. Insert the SFP module into the designated SFP port on your switch or router until it clicks into place. Connect your single-mode duplex LC fiber optic cable to the module ports. The device should be automatically detected by your network hardware, allowing for immediate data transmission. Use the DDM interface through your network management software to monitor the link status and signal quality.

What to consider before purchase

Verify that your network switch or router supports 2.5Gbps SFP modules.
Ensure you are using compatible single-mode fiber optic cabling.
Check that the operating environment remains within the specified temperature range.

Usage recommendations: Always handle the fiber optic connectors with care to prevent dust or debris from affecting signal quality, and ensure the module is fully seated in the SFP slot for a secure connection.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Weight:: 0.0155 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Copper ethernet cabling technology:: 2.5GBASE
Wavelength:: 1310 nm
Fiber optic connector:: LC
Maximum transfer distance:: 2000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: -3 dBmW
Tx power (min):: -9 dBmW
Digital Diagnostics Monitoring (DDM):: Yes
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Form factor:: SFP
Plug and Play:: Yes
Product colour:: Silver
Hot-swap:: Yes

Logistics data

Master (outer) cases per pallet:: 34 pc(s)
Country of origin:: Taiwan
Master (outer) case height:: 250 mm
Master (outer) case width:: 365 mm
Master (outer) case gross weight:: 5500 g
Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Pallet gross height:: 1644 mm
Master (outer) case length:: 343 mm
Products per master (outer) case:: 100 pc(s)
Customs product code (TARIC):: 8517620000

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70
Storage relative humidity (H-H):: 5 - 85

Packaging data

Package weight:: 41.66 g
Package depth:: 67 mm
Package height:: 25 mm
Package width:: 110 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W

Weight & dimensions

Weight:: 0.0155 kg
Height:: 13 mm
Width:: 55.9 mm
Depth:: 13.4 mm

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: CE, CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UL
