LevelOne 2.5Gbps Single-mode SFP Transceiver | 20km, 1310nm

Name: LevelOne 2.5Gbps Single-mode SFP Transceiver, 520228
Brand: OEM
SKU: 12417718
Price: 54.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

LevelOne 2.5Gbps Single-mode SFP Transceiver, 20km, 1310nm

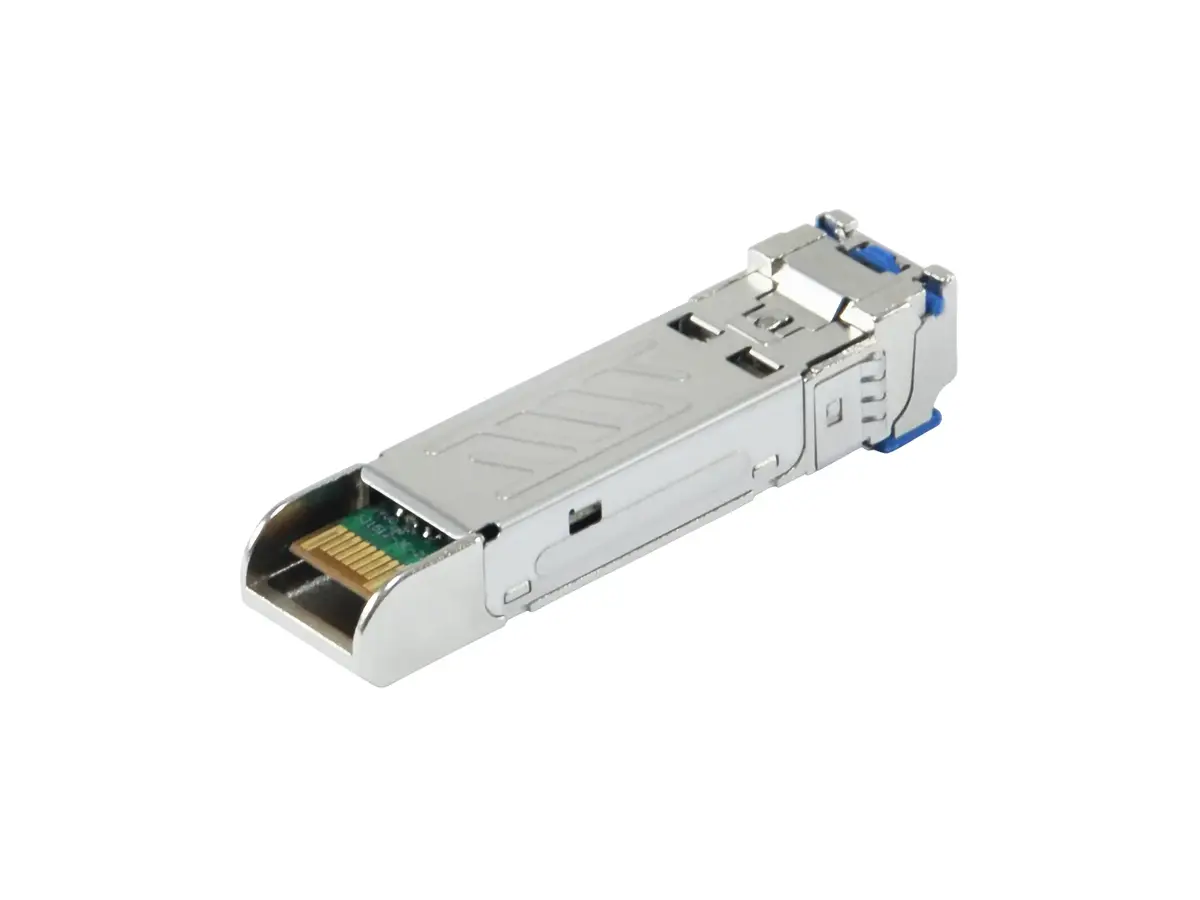

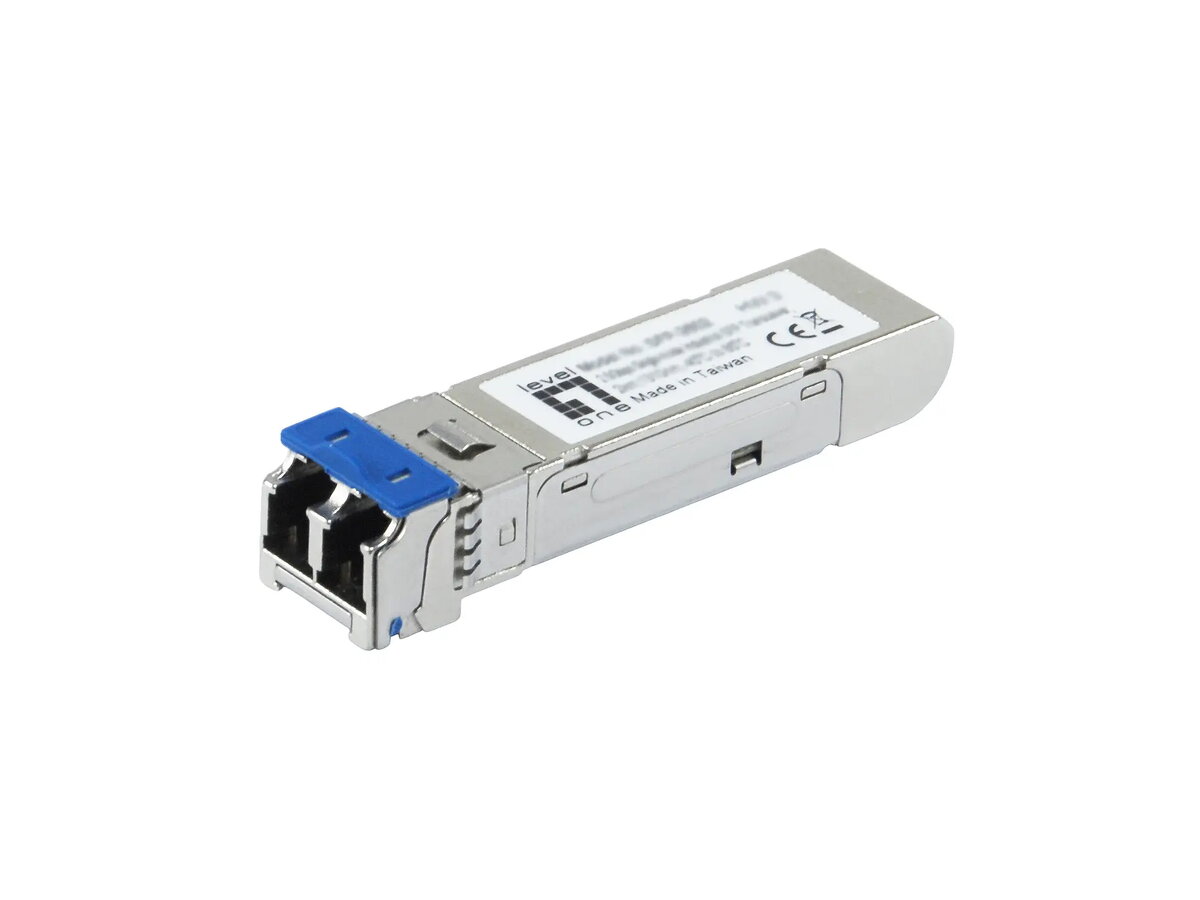

LevelOne 2.5Gbps Single-mode SFP Transceiver | 20km, 1310nm Photo 3

LevelOne 2.5Gbps Single-mode SFP Transceiver | 20km, 1310nm Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne 2.5Gbps Single-mode SFP Transceiver is a high-performance fiber optic module designed for reliable data transmission over distances up to 20km. Operating at a 1310nm wavelength with a 2500 Mbit/s data rate, this SFP module features a standard LC interface. It is compliant with international safety and quality standards, including CE, FCC, and RoHS, making it an ideal solution for professional networking infrastructure.

Available for order: 10 pcs.

Warranty: 2 Years

SKU: 12417718

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

02.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

07.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.31 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

07.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne 2.5Gbps Single-mode SFP Transceiver is a high-performance fiber optic module designed for reliable data transmission over distances up to 20km. Operating at a 1310nm wavelength with a 2500 Mbit/s data rate, this SFP module features a standard LC interface and is built for professional networking environments requiring stable, long-range connectivity.

Advantages

This transceiver offers exceptional reliability for high-speed network infrastructures by supporting data rates of up to 2.5Gbps over single-mode fiber. Its hot-swappable design allows for easy installation or replacement without interrupting network operations, while the integrated Digital Diagnostics Monitoring (DDM) provides real-time status updates to ensure optimal performance. The module is fully compliant with SFP Multi-Sourcing Agreement standards, ensuring broad compatibility with various networking hardware.

Suitable for

High-speed Gigabit Ethernet network links
Long-distance data transmission up to 20km
Professional enterprise networking infrastructure
Systems requiring hot-swappable fiber optic components

This module is not suitable for multi-mode fiber optic cabling, as it is specifically engineered for single-mode fiber applications. Additionally, it is designed for commercial operating temperatures between 0°C and 70°C and may not perform reliably in extreme industrial environments outside of this range.

Key specifications

Data transfer rate: 2500 Mbit/s
Wavelength: 1310 nm
Maximum distance: 20 km
Connector type: Duplex LC
Power consumption: 1 W
Operating temperature: 0°C to 70°C
Form factor: SFP

How to use

To install the transceiver, ensure your networking device is powered on or off according to the manufacturer's guidelines, as the module supports hot-swapping. Insert the SFP module into the designated SFP slot on your switch or router until it clicks into place. Connect your single-mode fiber optic cable with a duplex LC connector into the module's port. Once connected, the device should automatically detect the module, and you can monitor the link status through your network management software using the DDM feature.

What to consider before purchase

Verify that your networking hardware supports SFP modules with 2.5Gbps data rates.
Ensure you are using single-mode fiber optic cabling.
Check that your network environment remains within the 0°C to 70°C temperature range.

For optimal performance and longevity, ensure the fiber optic connectors are clean and free of dust before insertion, and always handle the transceiver by its edges to avoid electrostatic discharge.

Specifications

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Weight:: 0.0155 kg
Product colour:: Silver

All features

Performance

Interface type:: SFP
Maximum data transfer rate:: 2500 Mbit/s
Copper ethernet cabling technology:: 2.5GBASE
Wavelength:: 1310 nm
Fiber optic connector:: LC
Maximum transfer distance:: 20000 m
Fiber cable diameters supported (core/cladding):: 9/125
Tx power (max):: 0 dBmW
Tx power (min):: -5 dBmW
Digital Diagnostics Monitoring (DDM):: Yes
Single-mode fiber (SMF) supported:: Yes

Network

SFP transceiver type:: Fiber optic

Features

Form factor:: SFP
Plug and Play:: Yes
Product colour:: Silver
Hot-swap:: Yes

Logistics data

Master (outer) cases per pallet:: 34 pc(s)
Country of origin:: Taiwan
Master (outer) case height:: 250 mm
Master (outer) case width:: 365 mm
Master (outer) case gross weight:: 5500 g
Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Pallet gross height:: 1644 mm
Master (outer) case length:: 343 mm
Products per master (outer) case:: 100 pc(s)
Customs product code (TARIC):: 8517620000

Operational conditions

Operating relative humidity (H-H):: 5 - 85
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: 0 - 70
Storage relative humidity (H-H):: 5 - 85

Packaging data

Package weight:: 41.66 g
Package depth:: 67 mm
Package height:: 25 mm
Package width:: 110 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.: 1 W

Weight & dimensions

Weight:: 0.0155 kg
Height:: 13 mm
Width:: 55.9 mm
Depth:: 13.4 mm

Packaging content

Quantity per pack:: 1 pc(s)

Certificates

Compliance certificates:: CE, CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UL
