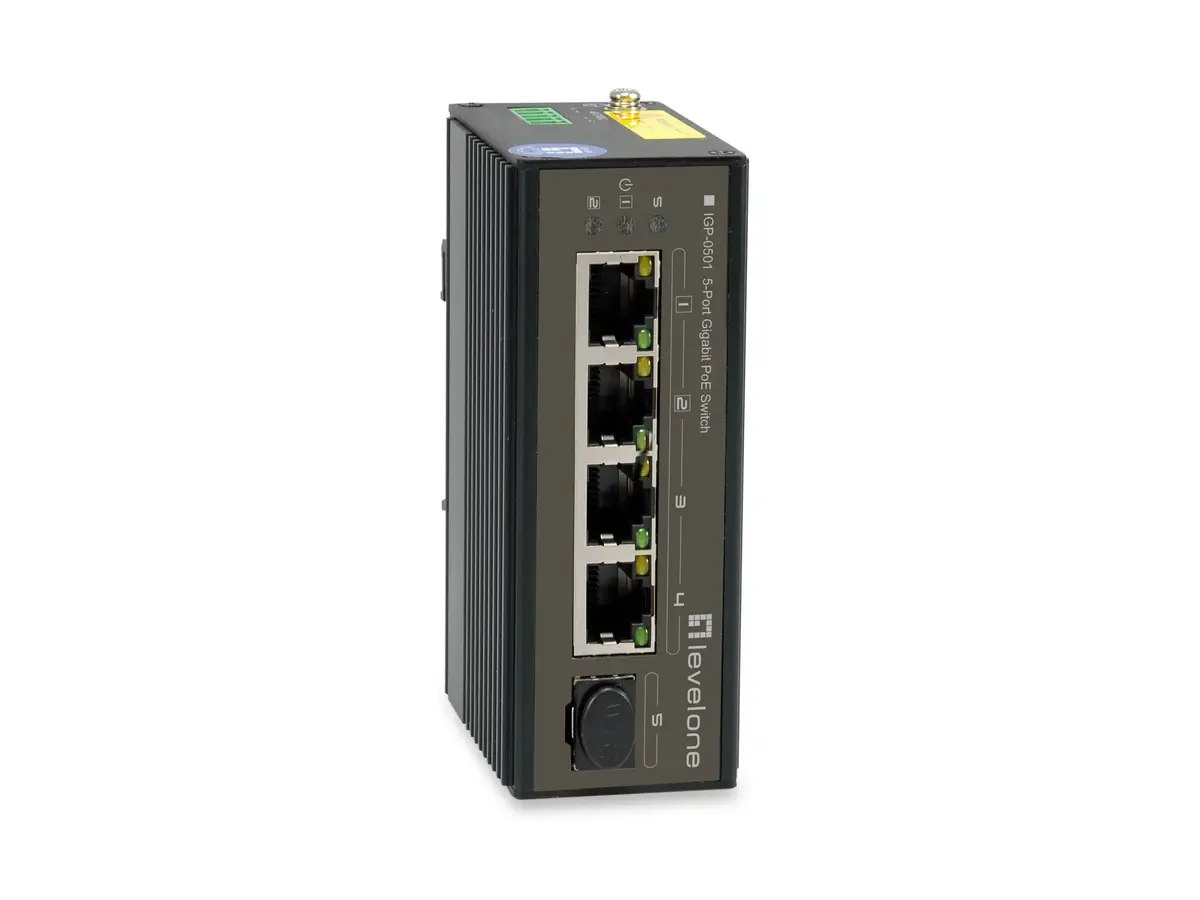

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, PoE, -30°C to 65°C

LevelOne 5-Port Gigabit Industrial Switch | 6946969 Photo 1

LevelOne 5-Port Gigabit Industrial Switch | 6946969 Photo 2

LevelOne 5-Port Gigabit Industrial Switch | 6946969 Photo 3

LevelOne 5-Port Gigabit Industrial Switch | 6946969 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The LevelOne 5-port Gigabit industrial switch is designed for demanding environments, operating reliably between -30°C and 65°C. It features 4 Gigabit Ethernet ports with Power over Ethernet (PoE) support, ensuring efficient data transmission and power delivery. Compliant with IEEE 802.3 standards, this DIN-rail mountable device is ideal for industrial automation and network infrastructure requiring robust connectivity in harsh conditions.

Available for order: 31 pcs.

Warranty: 2 Years

SKU: 12411141

Manufacturer: OEM

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.45 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 58.5 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 4.87 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The LevelOne 5-Port Gigabit Industrial Switch is a robust networking solution designed for mission-critical environments. It features four Gigabit Ethernet ports with Power over Ethernet (PoE) capabilities and one additional Gigabit SFP slot for flexible fiber connectivity. Built to withstand extreme temperatures ranging from -30°C to 65°C, this device ensures reliable performance in harsh industrial settings.

Advantages

This industrial switch offers significant flexibility through its support for various mounting options, including DIN-rail, wall, or desktop installation, allowing for seamless integration into existing cabinets. The inclusion of PoE+ technology on the four main ports simplifies infrastructure by delivering both data and power over a single cable, which reduces installation costs and eliminates the need for additional electrical wiring. Furthermore, the device is housed in a durable IP30-rated metal casing that provides essential protection against physical impact and environmental factors, while integrated surge and ESD protection safeguard the hardware against electrical fluctuations.

Suitable for

Industrial automation systems
Security and surveillance networks requiring PoE cameras
Mission-critical network infrastructures
Environments with extreme temperature fluctuations

When it may not be suitable

This switch is not intended for high-density enterprise environments that require more than four PoE-enabled ports or 10G uplink speeds. It is also not suitable for residential use where standard, non-industrial grade equipment would be more cost-effective.

Key specifications

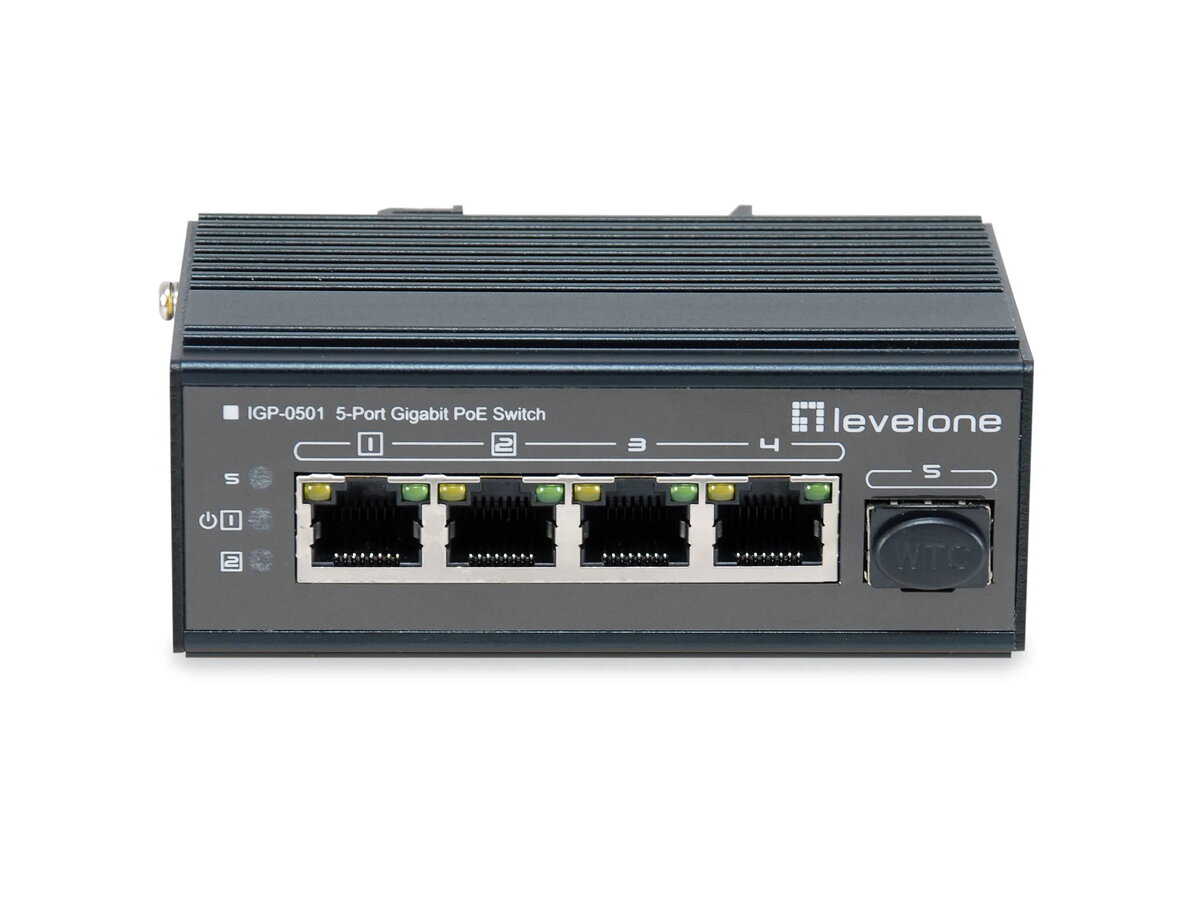

4 x Gigabit Ethernet ports (10/100/1000 Mbps)
1 x Gigabit SFP slot
PoE+ support (IEEE 802.3at) with up to 30W per port
Operating temperature: -30°C to 65°C
IP30 metal housing
6KV surge protection per port
DIN-rail, wall, or desktop mounting

How to use

To set up the switch, mount the device securely using the provided DIN-rail or wall-mount brackets. Connect your network devices to the RJ-45 ports using standard Ethernet cables. If using fiber connectivity, insert a compatible SFP transceiver into the SFP slot. Connect the power supply to the DC input terminals, ensuring the voltage is within the 48-57V range. Once powered, the status LEDs will indicate link activity and PoE status, allowing for easy monitoring of the network connection.

What to consider before purchase

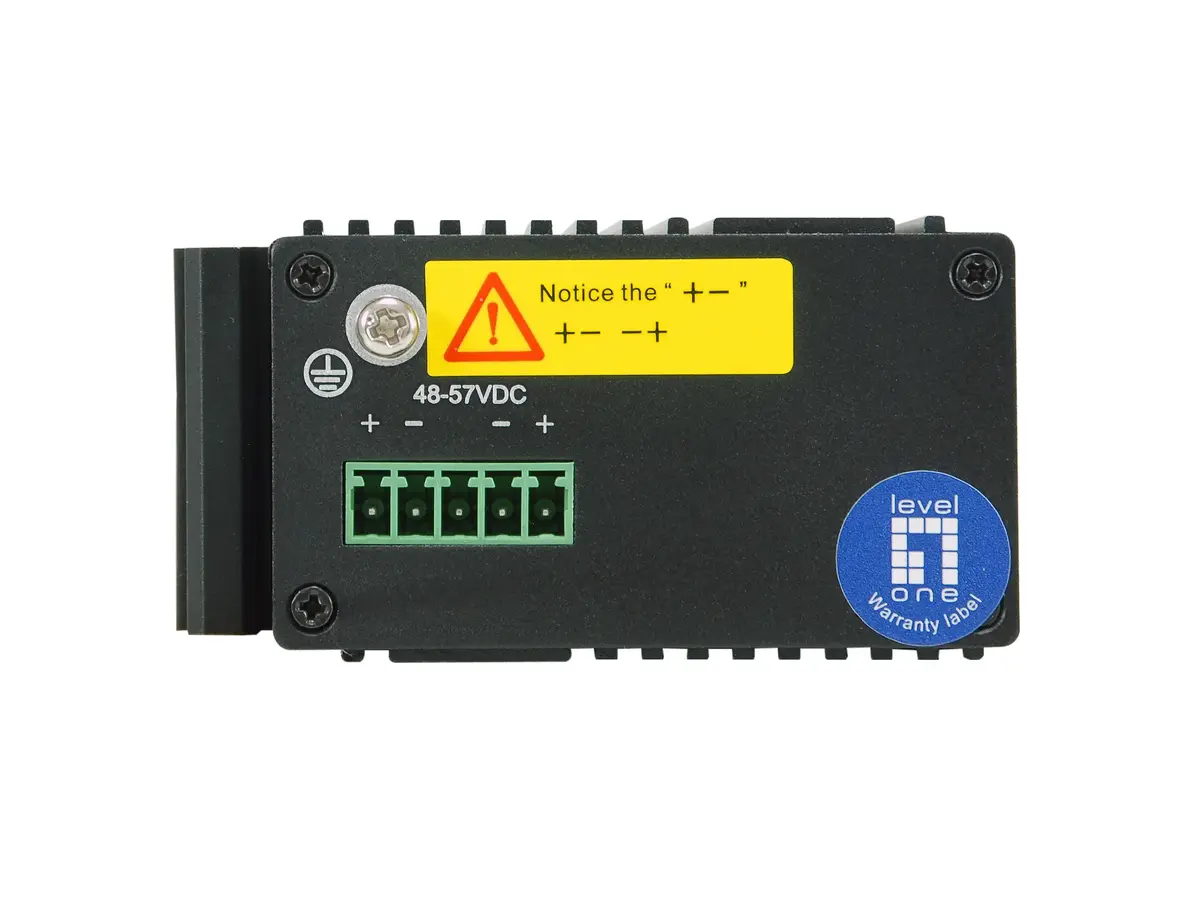

Ensure your power supply meets the 48-57V DC input requirement.
Verify that your connected devices are compatible with IEEE 802.3af/at standards for PoE.
Check if your network architecture requires fiber connectivity via the SFP slot.
Confirm the physical space available for DIN-rail or wall mounting.

Usage recommendations: For optimal performance and longevity, ensure the switch is installed in an area with adequate ventilation, even within the specified temperature range. Regularly inspect cable connections and ensure the grounding terminal is properly connected to prevent electrical interference.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 0.35 kg
Basic switching RJ-45 Ethernet ports quantity:: 4
10G support:: No
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Product colour:: Black

All features

Design

Rack mounting:: No
LED indicators:: Activity, Power
Wall mountable:: Yes
Product colour:: Black
Housing material:: Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Power

Surge protection voltage:: 6 kV
Surge protection:: Yes
DC input voltage:: 48 - 57
Power supply included:: No

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes
Power over Ethernet (PoE) ports quantity:: 4
Power over Ethernet (PoE) power per port:: 30 W

Packaging content

Quick start guide:: Yes

Packaging data

Package weight:: 400 g
Package depth:: 60 mm
Package height:: 110 mm
Package width:: 70 mm
Package type:: Box
Terminal block included:: Yes

Ports & interfaces

Gigabit Ethernet (copper) ports quantity:: 4
Installed SFP+ modules quantity:: 0
Installed SFP modules quantity:: 0
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 4
SFP module slots quantity:: 1

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -30 - 65
Storage relative humidity (H-H):: 10 - 90

Logistics data

Products per pallet:: 24 pc(s)
Country of origin:: China
Master (outer) case height:: 360 mm
Master (outer) case width:: 422 mm
Master (outer) case gross weight:: 13000 g
Master (outer) case length:: 566 mm
Products per master (outer) case:: 28 pc(s)
Harmonized System (HS) code:: 85176990

Technical details

Pallet gross width:: 1200 mm
Pallet gross length:: 800 mm
Pallet height (air):: 1590 mm

Weight & dimensions

Weight:: 0.35 kg
Height:: 101 mm
Width:: 65 mm
Depth:: 36 mm

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:: Yes
Auto MDI/MDI-X:: Yes
10G support:: No
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
Auto-negotiation:: Yes
Half duplex:: Yes
