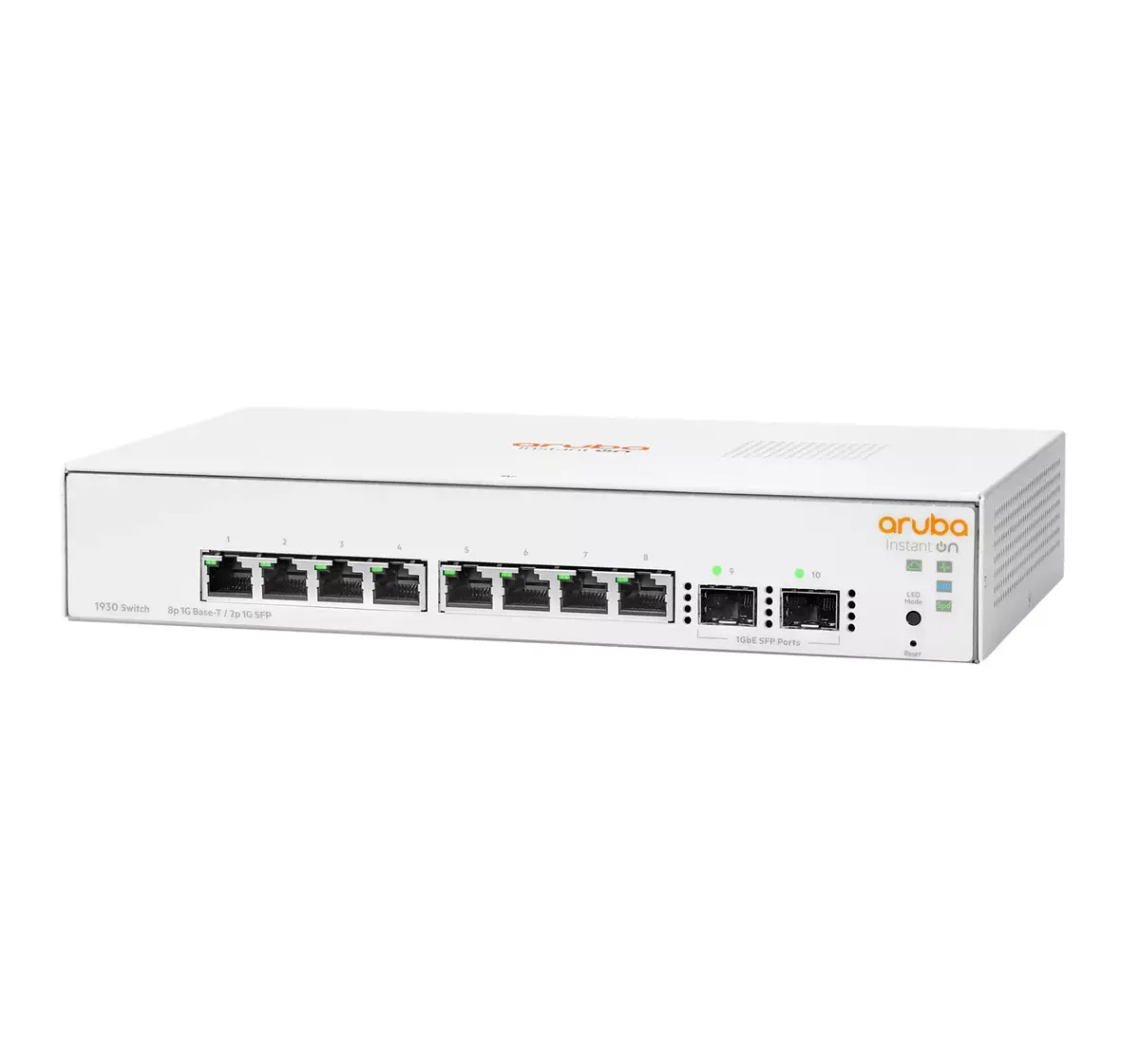

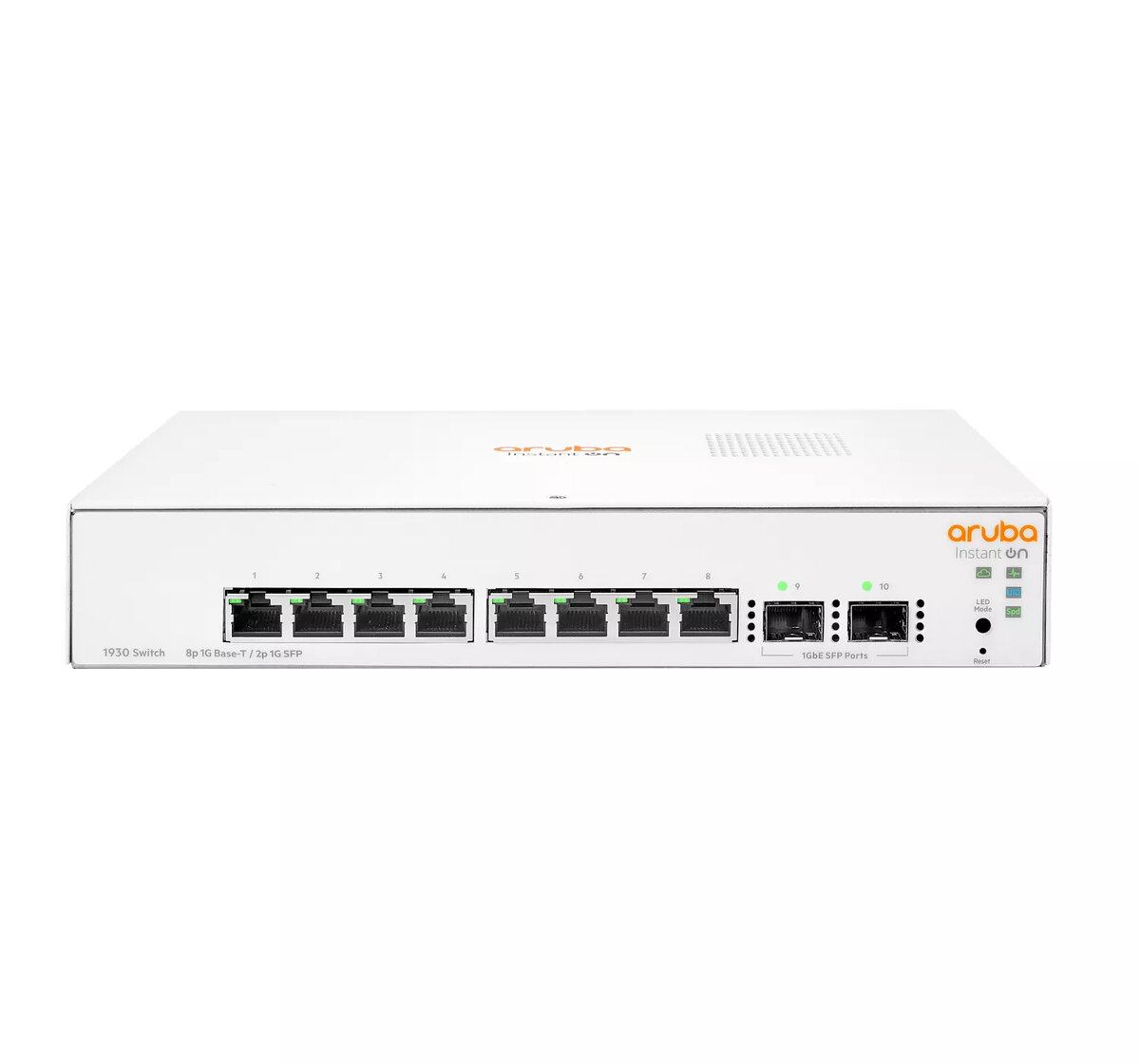

Managed Switch Aruba Instant On 1930 L2+ Gigabit Ethernet 8 Ports

Processor frequency:

800 MHz

Internal memory:

512 MB

Processor model:

ARM Cortex-A9

Full duplex:

Yes

Flash memory:

256 MB

MAC address table:

8000 entries

Memory type:

SDRAM

Form factor:

1U

Switching capacity:

20 Gbit/s

Flow control support:

Yes

Power over Ethernet (PoE):

No

Switch layer:

L2+

Quality of Service (QoS) support:

Yes

Port mirroring:

Yes

Link aggregation:

Yes

Stackable:

No

Jumbo frames support:

Yes

Web-based management:

Yes

Rate limiting:

Yes

Switch type:

Managed

SSH/SSL support:

Yes

IGMP snooping:

Yes

Auto MDI/MDI-X:

Yes

Number of VLANs:

256

Spanning tree protocol:

Yes

VLAN support:

Yes

10G support:

No

Copper ethernet cabling technology:

10BASE-T, 100BASE-TX, 1000BASE-T

Power consumption (max):

11 W

Power supply included:

Yes

Basic switching RJ-45 Ethernet ports type:

Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity:

8

Auto-sensing:

Yes

Packet buffer memory:

1.5 MB

Latency (10-100 Mbps):

5.2 µs

Latency (1 Gbps):

3 µs

Throughput:

14.8 Mpps

SFP module slots quantity:

2

Operational conditions

Operating relative humidity (H-H):

15 - 95

Storage temperature (T-T):

-40 - 70

Operating temperature (T-T):

0 - 40

Storage relative humidity (H-H):

15 - 95

Logistics data

Harmonized System (HS) code:

85176990

Power

Power source:

AC

AC input frequency:

50 - 60

AC input voltage:

100 - 240

Design

Rack mounting:

No

Product colour:

White

Weight & dimensions

Weight:

0.82 kg

Height:

43.9 mm

Width:

254 mm

Depth:

159.5 mm

Network

Networking standards:

IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3, IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q
