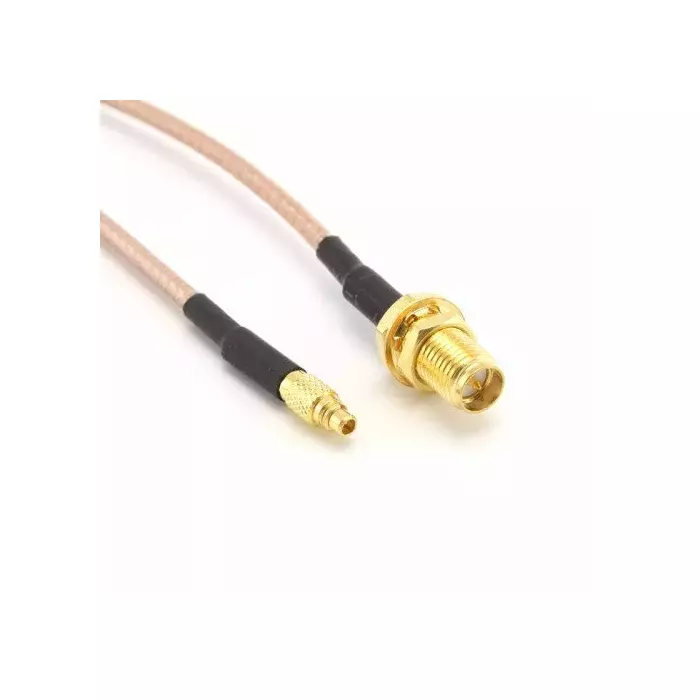

Network Cable OEM Pigtail MMCX Male Straight RPSMA Female 25cm Black

This Network Cable OEM Pigtail MMCX Male Straight RPSMA Female 25cm Black is a short RF pigtail cable designed to connect devices with MMCX and RPSMA interfaces. At 25 cm length it provides a compact, low-loss link suitable for confined installations where a stable antenna or RF module connection is required. The cable is finished in a black jacket for a discreet appearance in professional environments and is intended for use in wireless systems, test setups, and small networking assemblies.

Advantages

The pigtail combines a straight MMCX male connector and an RPSMA female connector to enable direct mating between components without adapter stacks. Its short 25 cm length minimizes insertion loss and preserves signal integrity over a brief run. The cable construction provides consistent impedance matching for reliable RF performance, and the black outer jacket resists abrasion and maintains a neat appearance in equipment racks or enclosures.

Suitable for

• Connecting small wireless modules or radios to RPSMA antennas
• Internal or external antenna connections in routers, gateways, or IoT devices
• Laboratory test and measurement setups requiring a short RF link
• Space-constrained installations inside enclosures or equipment racks

Key specifications

• Connector types: MMCX male (straight) to RPSMA female
• Cable length: 25 cm
• Color: black
• Impedance: 50 Ω
• Typical application: RF/antenna pigtail for wireless communication
• Construction: flexible coaxial cable with protective outer jacket

How to use

Align the MMCX male connector with the MMCX jack on the device and push gently until it seats. Screw the RPSMA female connector onto the corresponding RPSMA male antenna or extension by turning the nut until hand-tight; avoid over-tightening. Route the cable to avoid sharp bends and secure it inside the enclosure or rack to prevent strain at the connector interfaces. Verify RF performance after installation by checking signal strength or running appropriate diagnostics.

Usage recommendations

Use this pigtail for short-range interconnections only; extend runs with appropriate low-loss cables if longer distances are needed. Avoid repeated disconnection cycles on MMCX connectors to reduce wear. For best performance, keep the cable free from kinks, maintain the rated bend radius, and ensure connectors are clean and undamaged before mating.
