Duplex Patch Cord OEM PCLCLC9D3-2L — 3 m, 2 mm, Singlemode LC-LC

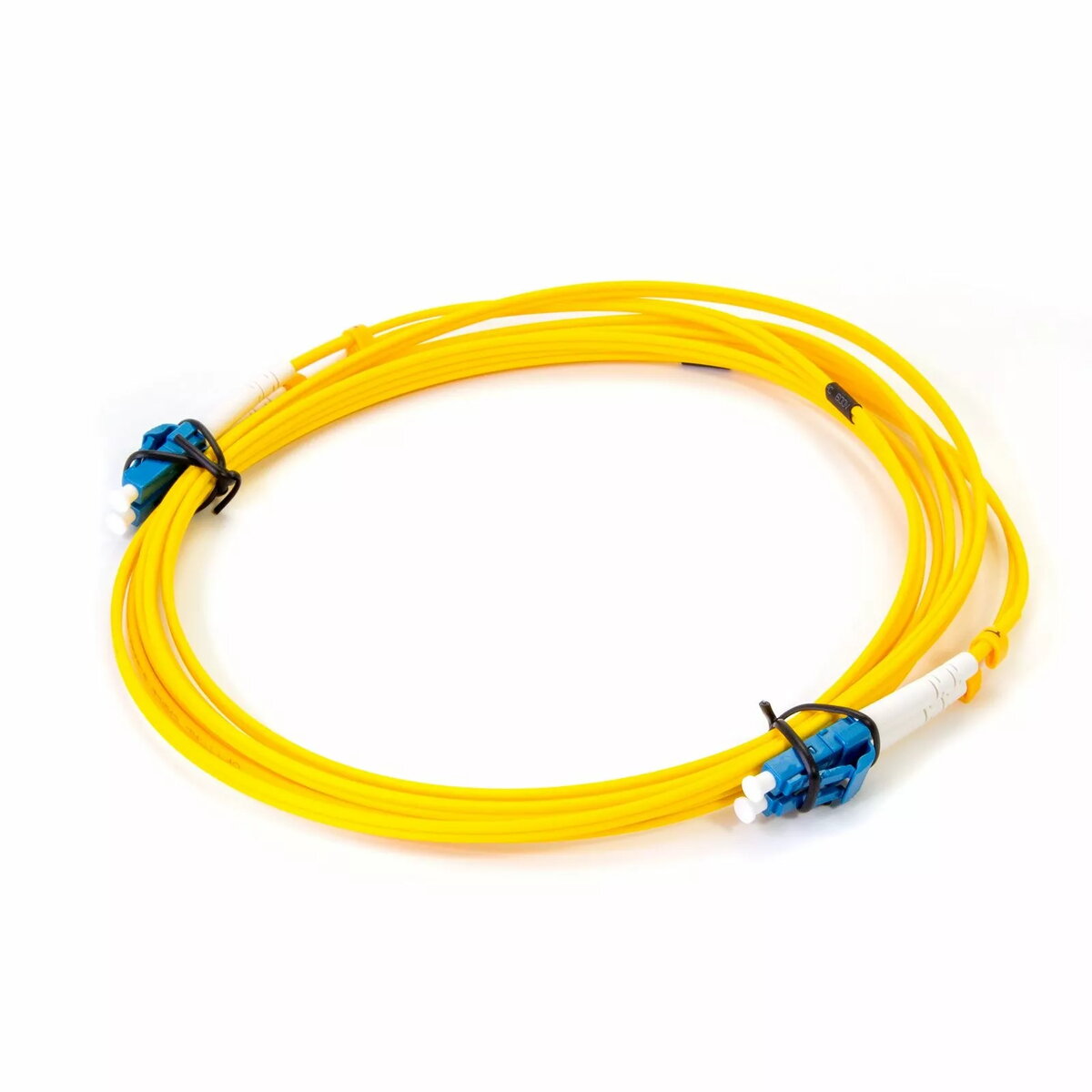

Duplex Patch Cord OEM PCLCLC9D3-2L is a singlemode LC‑to‑LC duplex fiber patch cable with a 3 m length and a 2 mm outer jacket diameter. It provides two parallel optical channels in a compact LC duplex format for connecting transceivers, patch panels and active equipment in data centers, telecom racks and network cabinets. The cable is intended for point‑to‑point optical links where singlemode performance and standard LC connectorization are required.

Advantages

The duplex LC‑LC construction offers a compact footprint and reliable mating for high‑density installations. A 2 mm jacket balances flexibility and durability for routing in trays and conduits while maintaining bend performance suitable for typical installation practices. Singlemode fiber reduces modal dispersion for long‑distance and high‑bandwidth links, and the standardized LC connectors ensure broad compatibility with common networking and telecom equipment.

Suitable for

• Patch connections between LC ports on optical transceivers and patch panels
• Interconnects inside data center cabinets and telecom distribution frames
• Fiber links in local area networks and campus backbone segments
• Equipment rack cross‑connects and lab test setups

Key specifications

• Fiber type: singlemode optical fiber
• Connector type: LC duplex on both ends (LC‑LC)
• Length: 3 m
• Outer jacket diameter: 2 mm
• Configuration: duplex (two fibers, parallel)
• Typical use: patching and interconnect in telecom and data centers

How to use

Route the duplex patch cord along cable trays or within cable management channels to avoid sharp bends and mechanical strain. Align the keyed LC connectors with the equipment ports and insert until a positive click is felt to ensure proper mating. Use the transmit (TX) and receive (RX) orientation appropriate for the connected devices; for duplex links, observe correct polarity when connecting to patch panels or transceivers. When removing the cable, press the LC latch and withdraw straight to avoid stressing the fiber ends.

Usage recommendations

Maintain minimum bend radius guidelines for singlemode fiber, avoid excessive tensile load on the 2 mm jacket, and keep connector end faces clean using appropriate fiber cleaning tools before mating. Store spare cords coiled without tight loops and protect LC end caps when not in use.
