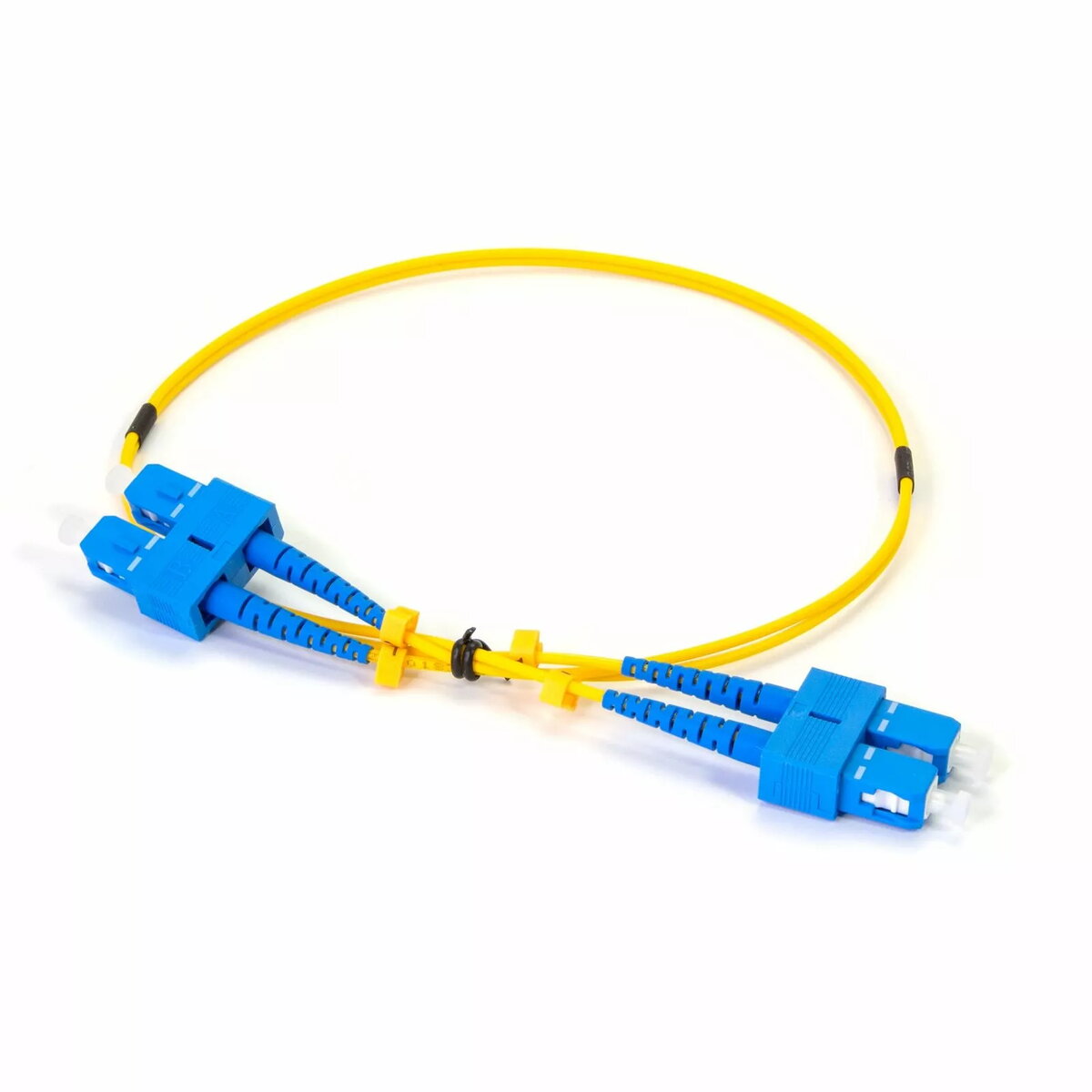

Fiber Optic Duplex SM Patch Cord OEM PCSCSC9D0.5-2L 0.5 m 2 mm

Fiber Optic Duplex SM Patch Cord OEM PCSCSC9D0.5-2L 0.5 m 2 mm is a duplex single-mode patch cable designed for short interconnections in network equipment, telecommunications racks and laboratory setups. The 0.5 m length and compact 2 mm jacket make it easy to route in dense patch panels and equipment enclosures while providing two-fiber duplex connectivity for single-mode links. The cable terminates with compatible connectors to support standard single-mode transmission and is intended for point-to-point connections where minimal cable slack and clear routing are required.

Advantages

This duplex single-mode patch cord combines a short 0.5 meter length with a slim 2 mm jacket to reduce clutter and simplify cable management in equipment racks and test benches. The two-fiber duplex configuration enables simultaneous transmit and receive channels within a single assembly, eliminating the need for separate single-fiber runs. The OEM construction offers a compact form factor appropriate for close-proximity connections and minimizes signal path length to reduce potential loss in short links.

Suitable for

• Short single-mode links between transceivers and switch ports
• Telecom and data center patch panels with limited space
• Laboratory test setups and measurement equipment
• Equipment racks and fiber distribution frames requiring duplex connections

Key specifications

• Fiber type: single-mode (SM) duplex
• Cable length: 0.5 m
• Jacket diameter: 2 mm
• Configuration: two-fiber duplex assembly (transmit/receive)
• Use case: point-to-point single-mode interconnection

How to use

Connect each connector of the duplex patch cord to the corresponding transmit and receive ports on the network devices, observing proper port labeling and polarity. Route the 2 mm jacketed cable through rack guides or cable organizers to avoid tight bends and maintain minimum bend radius recommended for single-mode fiber. For test and lab environments, use the 0.5 m length to make direct connections between adjacent devices or instruments without excess slack. Inspect connector endfaces before insertion and clean if necessary to maintain optimal optical performance.

Usage recommendations

Store and handle the patch cord in a clean environment, avoid sharp bends or crushing, and use appropriate dust caps when connectors are not in use. For reliable long-term performance, follow standard fiber handling and cleaning procedures and verify link performance with an optical power meter or appropriate test equipment after installation.
