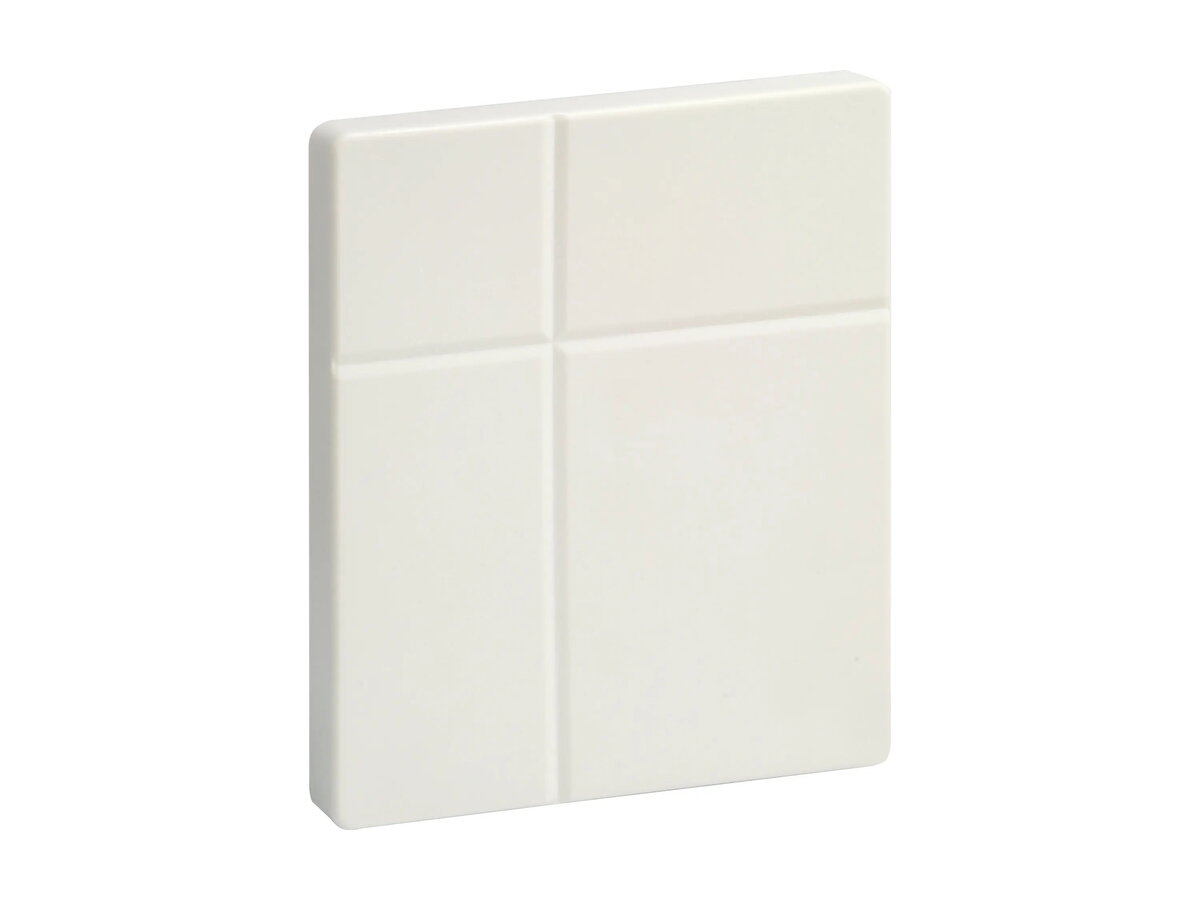

LevelOne WAN-9151 15dBi 5GHz Directional Dual-Polarization Panel Antenna

The LevelOne WAN-9151 is a high-performance 15dBi directional panel antenna designed for 5GHz wireless networks. Supporting dual-polarization and a frequency range of 5.1 to 5.9 GHz, it is compatible with IEEE 802.11a/n standards. This versatile antenna is suitable for both indoor and outdoor installations, featuring an N-type connector for reliable signal transmission in professional networking environments.

Advantages

This antenna provides a significant 15dBi gain, which effectively extends the range and signal strength of wireless connections. The dual-polarization technology allows for two communication channels to be received simultaneously, which helps in reducing interference and improving overall network stability. Its robust, weather-resistant design ensures reliable performance in harsh outdoor conditions, including exposure to rain, snow, and dust, while maintaining functionality across a wide temperature range.

Suitable for

• Point-to-point wireless bridge connections
• Extending Wi-Fi coverage in outdoor environments
• Professional 5GHz wireless network deployments
• Applications requiring high-gain directional signal transmission

When it may not be suitable

This antenna is not designed for omnidirectional coverage, meaning it will not provide a signal in all directions. It is specifically intended for focused, point-to-point communication and will not be effective for general indoor area coverage where multiple devices are scattered in different directions.

Key specifications

• Antenna gain: 15 dBi
• Frequency range: 5.1 ~ 5.9 GHz

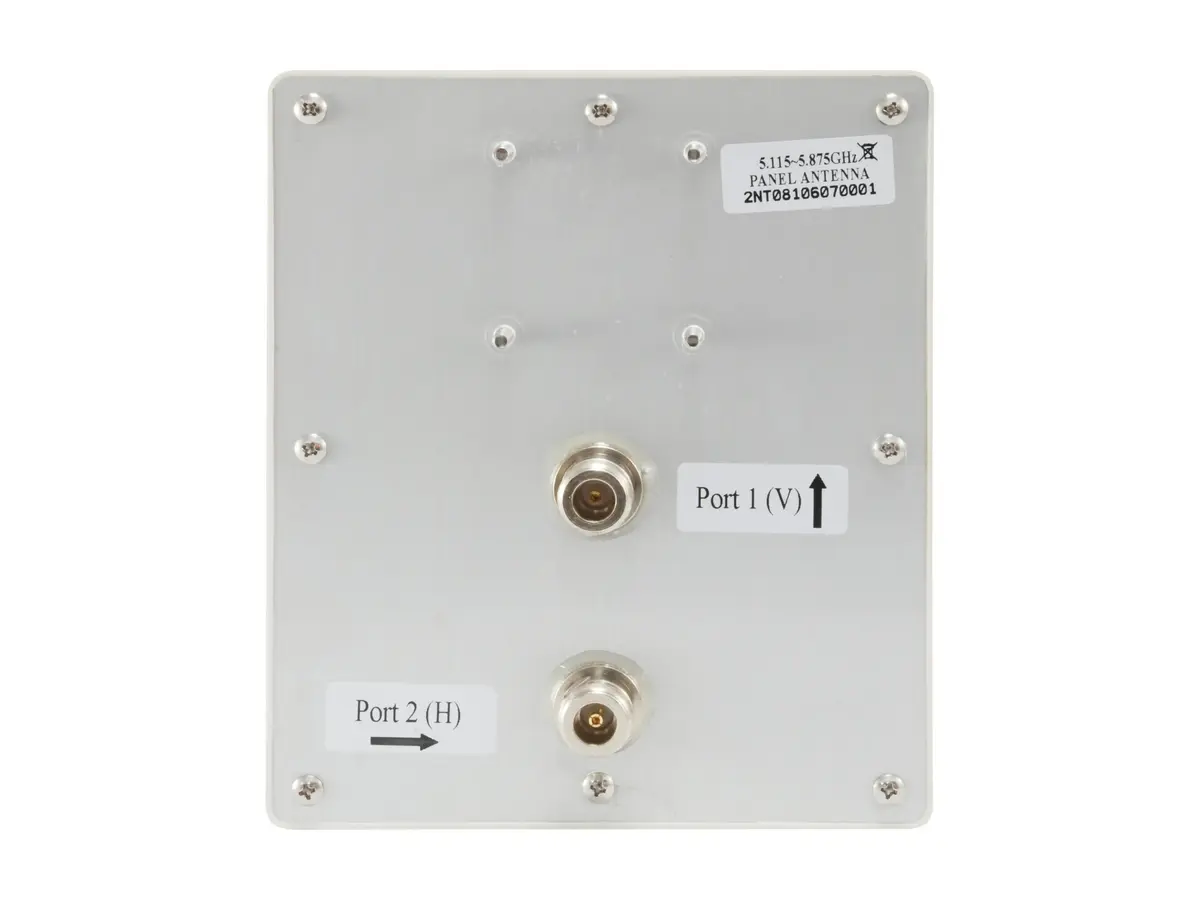

• Polarization: Dual polarization
• Connector type: N-type
• Impedance: 50 Ohm
• Survival wind speed: 180 km/h
• Operating temperature: -30°C to 60°C
• Ingress protection: IP65

How to use

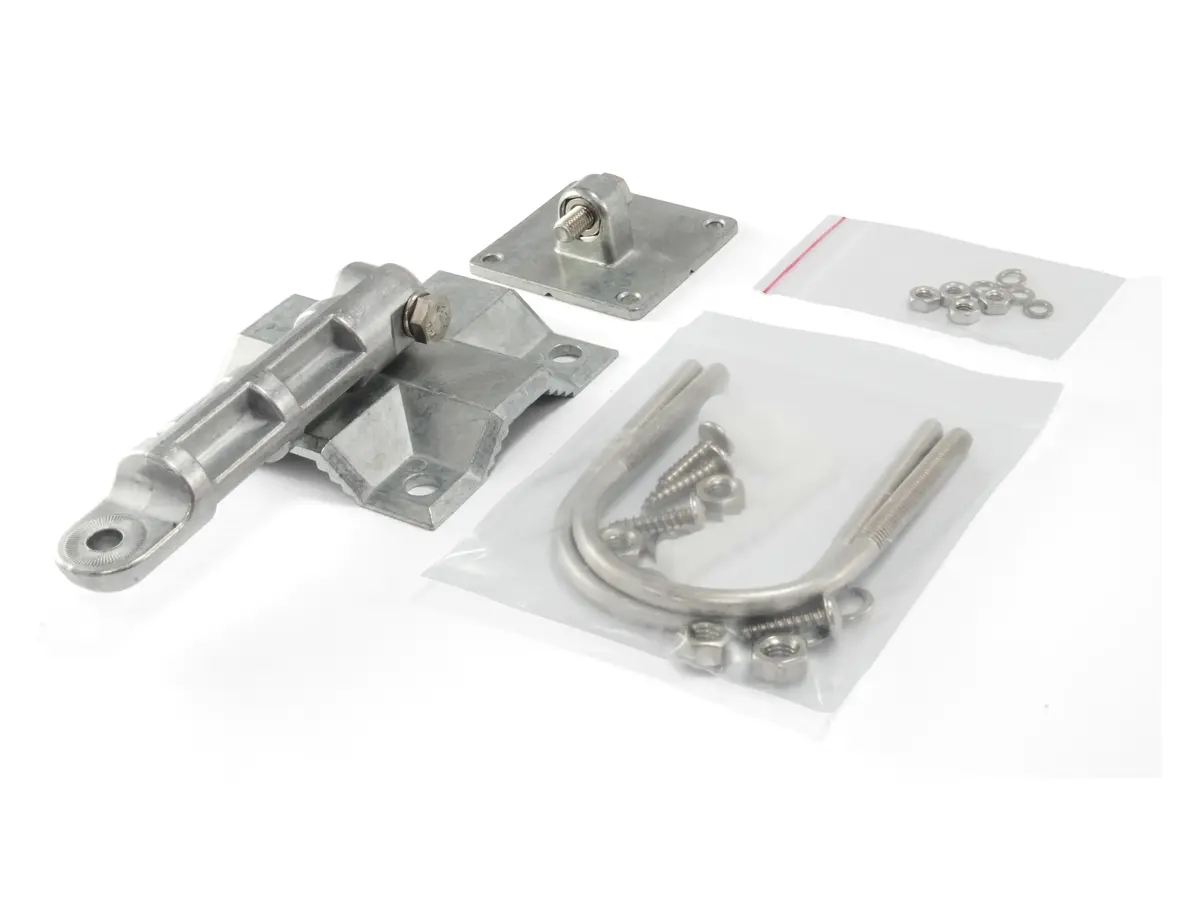

To install the antenna, mount it securely to a pole or wall using the appropriate hardware, ensuring it is pointed directly toward the target receiver or transmitter. Connect the antenna to your wireless device using a high-quality N-type coaxial cable. Once mounted, perform a signal alignment test to ensure the directional beam is optimized for the best possible connection quality. Ensure all cable connections are properly sealed if installed outdoors to prevent moisture ingress.

What to consider before purchase

• Ensure your wireless equipment supports the 5GHz frequency band.
• Verify that your device has an N-type connector or that you have the necessary adapters.
• Confirm that the mounting location allows for a clear line of sight between the two points.
• Check if your local regulations allow for the use of high-gain directional antennas in your area.

Usage recommendations

For optimal performance, ensure the antenna is mounted at a height that avoids physical obstructions and maintain a clear line of sight between the transmitting and receiving units. Regularly inspect the cable connections and mounting hardware if the device is installed in an outdoor environment.
