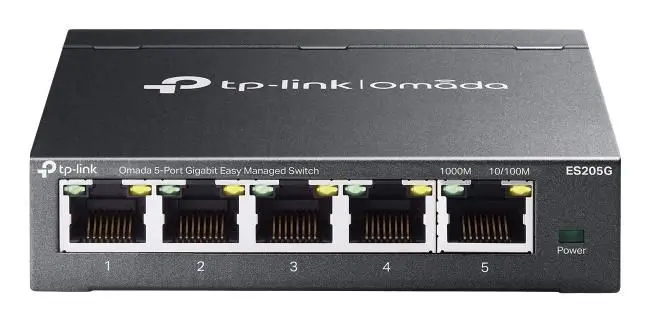

Omada TP-Link ES205G 5-Port Gigabit Managed Switch

Name: Omada Managed Network Switch TP-Link ES205G
Brand: Omada
SKU: 11449902
Price: 35.49 EUR
Availability: InStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Omada Managed Network Switch TP-Link ES205G — 5-Port Gigabit (10/100/1000), 8000 MAC, 10 Gbit/s Switching Capacity, Wall-mountable

Omada TP-Link ES205G 5-Port Gigabit Managed Switch Photo 1

Omada TP-Link ES205G 5-Port Gigabit Managed Switch Photo 2

Omada TP-Link ES205G 5-Port Gigabit Managed Switch Photo 3

Omada TP-Link ES205G 5-Port Gigabit Managed Switch Photo 4

Omada TP-Link ES205G 5-Port Gigabit Managed Switch Photo 5

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

TP-Link Omada ES205G is a 5-port managed Gigabit Ethernet switch offering five 10/100/1000 RJ-45 ports, an 8000-entry MAC address table and 10 Gbit/s switching capacity. It supports IEEE 802.1Q VLAN tagging, 802.1p QoS, 802.1ab LLDP and 802.3x flow control. Designed for small office or home network expansion, it is wall-mountable and runs from 5 V DC.

Available for order: 5 pcs.

Warranty: 2 Years

SKU: 11449902

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

29.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

02.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

02.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Omada Managed Network Switch TP-Link ES205G is a compact 5-port Gigabit managed switch intended for small office and home network expansion. The ES205G provides five 10/100/1000 RJ-45 ports, an 8000-entry MAC address table and a total switching capacity of 10 Gbit/s. It supports common management and network standards including IEEE 802.1Q VLAN tagging, IEEE 802.1p QoS, IEEE 802.1ab LLDP and IEEE 802.3x flow control. The unit comes in a metal, fanless housing and can be placed on a desktop or mounted to a wall; it is powered from a 5 V DC supply.

Advantages

The ES205G combines managed-switch features with a compact, durable metal casing and a silent, fanless design. Its five Gigabit Ethernet ports provide full-speed connectivity for multiple devices while the 8000-entry MAC table and 10 Gbit/s switching capacity help maintain efficient traffic handling in small networks. Support for VLAN tagging, QoS prioritization and LLDP enables clearer traffic segmentation and easier device discovery and integration into managed network environments, including Omada SDN platforms with cloud access for centralized control.

Suitable for

Small office or home networks requiring additional Gigabit ports
Environments where wall-mounting or desktop placement is needed
Networks that need basic managed features: VLANs, QoS and LLDP
Omada SDN setups where remote cloud management of switches and APs is desired

When it may not be suitable

The ES205G does not provide 10G uplink ports or fiber connectivity, so it is not suitable for environments that require multi-gigabit backbone links or fiber-based aggregation. It is designed for small-scale deployments and may not meet the throughput or port-density needs of larger enterprise networks.

Key specifications

Switch type: Managed
Ports: 5 × Gigabit Ethernet (10/100/1000) RJ-45
MAC address table size: 8000 entries
Switching capacity: 10 Gbit/s
Supported standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab, IEEE 802.3x
Form factor: Desktop or wall-mountable metal case
Cooling: Fanless
Power: 5 V DC input
Color: Black

How to use

Place the ES205G on a stable surface or mount it on a wall using the included mounting points. Connect your router, access points or end devices to the RJ-45 Gigabit ports using standard Ethernet cables. Configure VLANs, QoS and other management features via the Omada management interface or local management tools according to your network plan. For remote management and multi-site control, adopt the switch into an Omada SDN controller or cloud account and apply site-wide policies. Ensure the switch is powered by a compatible 5 V DC adapter and that cables are properly seated before changes in configuration.

What to consider before purchase

Require 10G or fiber uplinks? This model only offers Gigabit RJ-45 ports.
Port count and future expansion: five ports may be limiting for growing networks.
Power source availability: needs a 5 V DC power supply.
Management needs: intended for basic managed features and Omada SDN integration, not advanced enterprise switching.

Usage recommendations

For optimal performance in small office or home deployments, connect core devices (router or gateway) to one port and distribute remaining ports to access points, NAS devices or workstations. Use VLAN tagging to separate guest and internal traffic and enable 802.1p QoS for latency-sensitive services. Integrate the ES205G into the Omada SDN controller for centralized monitoring and policy application across devices.

Specifications

Switch type:: Managed
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
10G support:: No
Basic switching RJ-45 Ethernet ports quantity:: 5
Product colour:: Black
Networking standards:: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x

All features

Power

Power source:: AC/DC
DC input voltage:: 5
Power supply included:: Yes

Packaging content

User guide:: Yes

Management features

Quality of Service (QoS) support:: Yes
Switch type:: Managed
Cloud-managed:: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 5

Performance

Fanless:: Yes

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 0 - 40
Storage relative humidity (H-H):: 5 - 90

Packaging data

Package type:: Box

Network

Networking standards:: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x
Flow control support:: Yes
Port mirroring:: Yes
Link aggregation:: Yes
Auto MDI/MDI-X:: Yes
VLAN support:: Yes
10G support:: No
Auto-negotiation:: Yes
Virtual LAN features:: Port-based VLAN, Tagged VLAN

Data transmission

MAC address table:: 8000 entries
Switching capacity:: 10 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Forwarding rate:: 7.4 Mpps
Packet buffer memory:: 4 MB
Jumbo frames:: 15

Weight & dimensions

Height:: 25 mm
Width:: 100 mm
Depth:: 98 mm

Security

IGMP snooping:: Yes
Loop protection:: Yes
DHCP features:: DHCP client

Design

LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black
Reset button:: Yes

Certificates

Compliance certificates:: CE, Federal Communications Commission (FCC), RoHS
