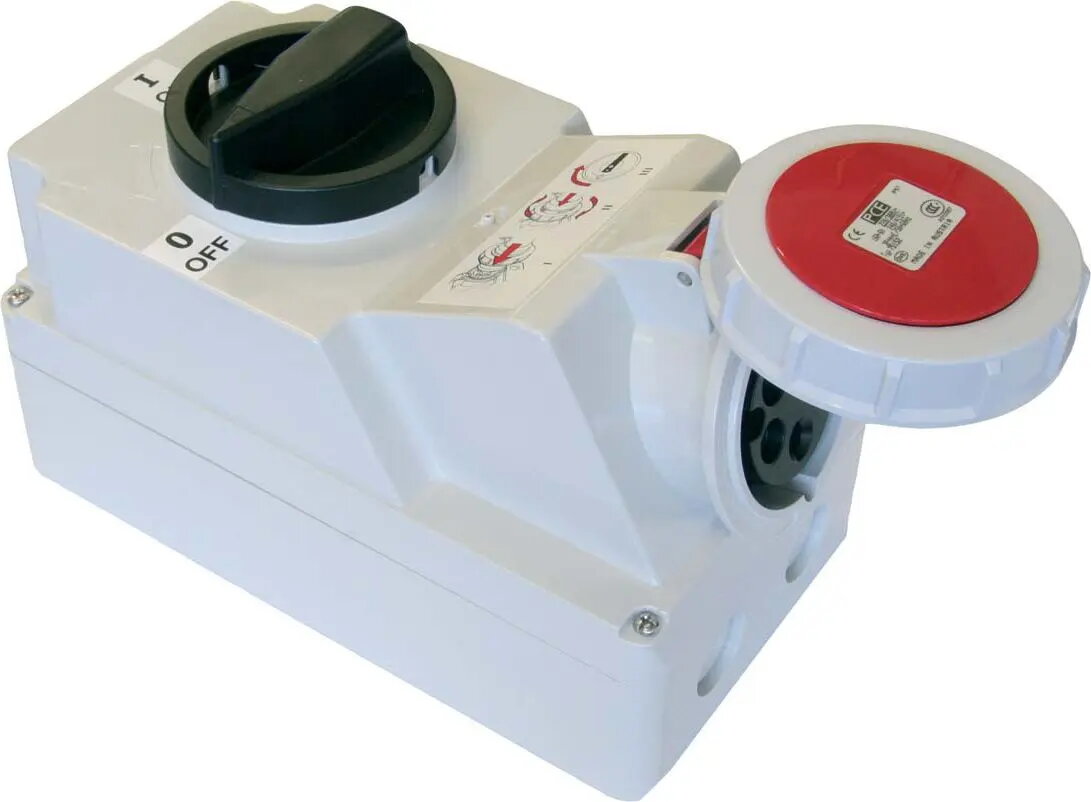

Fixed Socket with Switch and Mechanical Lock PCE 75252-6 32A 400V IP67

The PCE Fixed Socket with Switch and Mechanical Lock 75252-6 is a heavy-duty industrial power outlet rated for 32A and 400V with IP67 protection. This fixed socket integrates a manual switch and a mechanical locking mechanism to maintain a secure electrical connection and reduce the risk of accidental disconnection. Constructed for use in wet, dusty or otherwise harsh environments, the unit is intended for fixed installation where a sealed, reliable power connection is required.

Advantages

The sealed IP67 design prevents ingress of water and dust, enabling safe operation in outdoor or washdown conditions. The integrated switch allows on-site control of the connected circuit without additional external devices, while the mechanical lock secures the plug to the socket for vibration- and tamper-resistant connections. Robust construction and materials support frequent use in industrial settings and help ensure a long service life under demanding conditions.

Suitable for

• Construction sites and temporary power distribution
• Workshops, production floors and machinery feed-in
• Outdoor equipment and temporary installations exposed to weather
• Environments requiring sealed connections such as washdown areas

Key specifications

• Rated current: 32 A
• Rated voltage: 400 V
• Protection class: IP67 (dust-tight and protected against immersion)
• Integrated manual switch for circuit control
• Mechanical locking mechanism to prevent accidental disconnection
• Fixed installation type for permanent mounting
• Designed for industrial and outdoor use with robust housing

How to use

Mount the fixed socket to a suitable flat surface according to local electrical regulations and ensure the supply is isolated before installation. Make the incoming conductor connections to the terminal block, verifying correct conductor sizes and secure torque values appropriate for a 32 A circuit. After wiring, fit the cover and seal any cable entry points to maintain IP67 protection. To operate, insert the mating plug fully and engage the mechanical lock; use the integrated switch to control power to the connected equipment. For maintenance, isolate the supply, unlock and remove the plug if necessary, and inspect seals and contacts periodically.

Usage recommendations

Use only compatible industrial plugs and cables rated for 32 A and 400 V to preserve safety and IP67 sealing. Install and service the unit in accordance with applicable electrical standards and by qualified personnel. Regularly check the mechanical lock and sealing gaskets for wear and replace components that show damage to maintain reliable, sealed operation.
