Power adapter/inverter Phoenix Contact 1628011

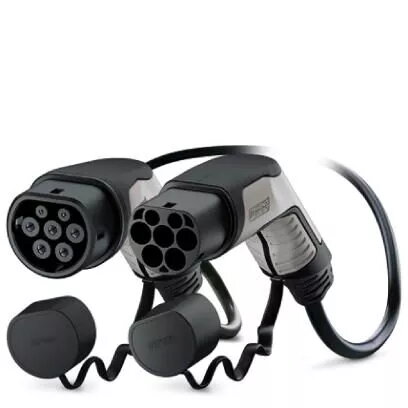

AC charging cable with Type 2 vehicle connector and matching infrastructure plug, C-Line design in black and gray. The cable complies with IEC 62196-2 and is rated for 32 A / 480 V (AC). The straight black 7.5 m cable includes a protective cap and a mating face in black with a gray handle area. Cable management may be required during installation.

Advantages

The C-Line Type 2 charging cable offers standardized connectivity for AC electric vehicle charging and conforms to IEC 62196-2. Its 7.5 m length provides flexibility for parking and charging positions, while the protective cap helps protect contacts when not in use. The black and gray design supports easy identification of the handle and mating face.

Suitable for

• AC charging of electric vehicles with Type 2 inlet
• Connection between vehicle and charging infrastructure
• Public or private charging stations requiring a 7.5 m cable
• Industrial or commercial locations where IEC 62196-2 compliance is required

Key specifications

• Connector standard: Type 2 (IEC 62196-2)
• Current/voltage rating: 32 A / 480 V (AC)
• Cable length: 7.5 m
• Color: black cable, black mating face, gray handle area
• Design line: C-Line
• Protective cap: included

How to use

Inspect the cable and connectors for visible damage before each use. Remove the protective cap and insert the Type 2 connector into the vehicle inlet until it locks. Connect the infrastructure plug to the charging station following the station manufacturer's instructions. After charging, disconnect in reverse order, replace the protective cap, and store the cable to avoid abrasion or kinking. Observe any cable management requirements at the installation site.

Usage recommendations

For reliable operation, use the cable with compatible Type 2 chargers rated for 32 A or higher and follow local installation and safety regulations. Avoid sharp bends, excessive pulling forces, and exposure to strong chemicals or extreme temperatures. If damage or abnormal heating is observed, stop using the cable and arrange inspection or replacement.
