PLANET FNSW-2401 Unmanaged 24x 10/100 Switch

Name: Network switch PLANET FNSW-2401 Unmanaged FNSW2401
Brand: PLANET
SKU: 12042431
Price: 48.49 EUR
Availability: InStock

Hot Deals at AiO.lv

A curated selection of maximum value offers!

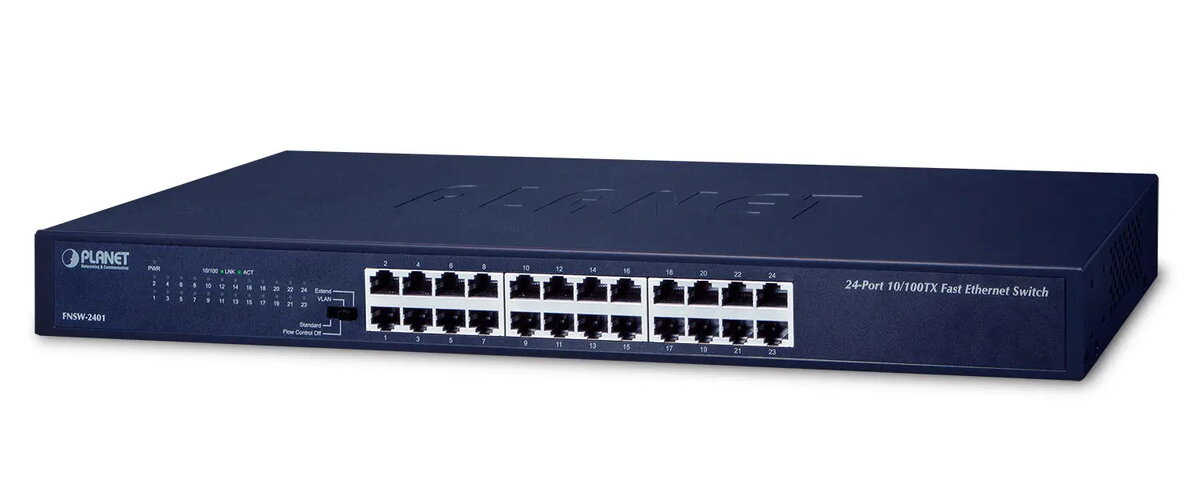

Network switch PLANET FNSW-2401 Unmanaged Fast Ethernet 24x 10/100, 1U, blue

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

Available for order: 12 pcs.

Warranty: 2 Years

SKU: 12042431

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Delivery country: {{ userCountryName }}
- {{ country.name }}

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.11.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.11.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.40 kg)

Parcel couriers

Unisend LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

06.11.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET FNSW-2401 is an unmanaged Fast Ethernet switch with 24 RJ-45 10/100 ports in a 1U rack-mount form factor. It supports full-duplex operation, an 8,000-entry MAC address table and a 4.8 Gbit/s switching capacity. Compliant with IEEE 802.3/802.3u/802.3x/802.3az standards, the switch uses a standard DC-in power connector and integrates basic Green Networking features to reduce power consumption while preserving network performance. The compact 1U design fits standard racks and provides plug-and-play connectivity for small office LAN aggregation and basic network deployments.

Advantages

The FNSW-2401 provides simple installation and maintenance as an unmanaged device, requiring no configuration for standard operation. It delivers wire-speed forwarding with store-and-forward switching and supports auto MDI/MDIX for easy cable connection. Energy-saving functions adjust power based on cable length and internal engine improvements to lower consumption. A DIP switch offers selectable operation modes — Standard, Flow Control Off, VLAN and Extend — to adapt the switch behavior to different deployment needs such as VLAN isolation or extended-distance links.

Suitable for

Small office and home office (SOHO) networks requiring reliable 10/100 connectivity
Edge aggregation for basic LANs and workgroup connectivity
Areas where simple VLAN isolation or broadcast containment is needed
Installations that require occasional cable distance extension up to 200 meters on selected ports

Key specifications

Switch type: Unmanaged Fast Ethernet switch
Ports: 24 x RJ-45 10/100 Mbps ports with auto-negotiation and auto MDI/MDIX
Switching capacity: 4.8 Gbit/s
MAC address table: 8,000 entries
Forwarding performance: up to 14,880 pps per 10 Mbps port and 148,800 pps per 100 Mbps port
Operation modes (DIP switch): Standard, Flow Control Off, VLAN (port-based isolation), Extend (per-port 10 Mbps up to 200 m on ports 1–8)
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Form factor: 1U rack-mountable
Product colour: Blue
Weight: 1.4 kg

How to use

Mount the switch into a standard 1U rack or place it on a stable surface. Connect each Ethernet device to the RJ-45 ports using appropriate UTP/STP cables; the switch will auto-negotiate link speed and duplex. Set the DIP switch to the desired operation mode: use Standard for normal switching, VLAN for port-based isolation, Flow Control Off to disable flow control, or Extend to enable 200 m transmission at 10 Mbps on designated ports. Provide power via the DC-in connector according to the device labeling and verify LED indicators for link and activity status before putting the network into service.

Usage recommendations

Select the VLAN DIP mode when you need to contain broadcast or multicast traffic between connected clients, and use the Extend mode only for specific ports that require longer cable runs, understanding those ports will operate at 10 Mbps. For energy-efficient operation, deploy appropriate cable lengths where possible so the switch can scale power usage. Place the switch in a ventilated rack space and avoid stacking devices to maintain ambient airflow.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No
Power supply included: There is a power supply with this product.: No
Stackable: Devices can be placed on top of each other.: No
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 4.8 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 8000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.: 0
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24
Switch type: What switch device has, managed or unmanaged.: Unmanaged
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3

All features

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC, CE

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 1.4 kg
Height: The measurement of the product from head to foot or from base to top.: 44 mm
Depth: The distance from the front to the back of something.: 140 mm
Width: The measurement or extent of something from side to side.: 440 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.: 4.7 BTU/h
Storage relative humidity (H-H):: 5 - 95
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 50

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No

Power

Power consumption (typical): Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.: 1.4 W
Input current:: 0.2
AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240
Power supply included: There is a power supply with this product.: No

Design

Product colour: The colour e.g. red, blue, green, black, white.: Blue
Form factor: The shape or design of the product.: 1U
Stackable: Devices can be placed on top of each other.: No
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: CSMA / CD

Data transmission

Packet buffer memory:: 1.25 MB
Maximum data transfer rate:: 0.1 Gbit/s
Store-and-forward:: Yes
Throughput:: 3.57 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 4.8 Gbit/s
Supported data transfer rates: Rates at which data can be transferred. May vary according to network configurations.: 10/100Base-TX
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 8000 entries

Network

Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3u, IEEE 802.3x, IEEE 802.3az, IEEE 802.3

Ports & interfaces

Power connector:: DC-in jack
Installed SFP+ modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.: 0
Installed SFP modules quantity: An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.: 0
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24

Management features

Switch type: What switch device has, managed or unmanaged.: Unmanaged
