Short description

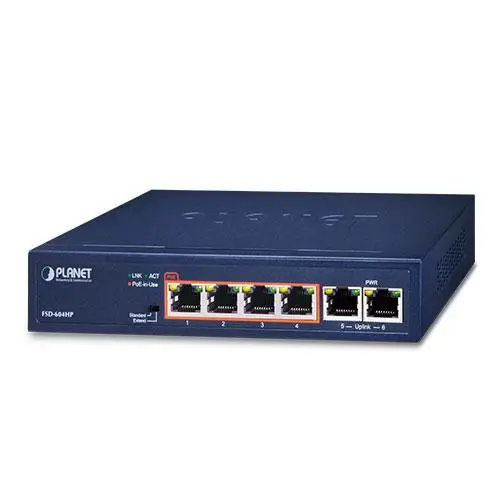

The PLANET FSD-604HP is an unmanaged Fast Ethernet switch with 6 RJ-45 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 1.2 Gbit/s and a MAC address table with 2000 entries. Compliant with IEEE networking standards, it ensures reliable connectivity for your devices.

Available at price 36.49 €: 5 pcs.

Total available for order: 1950 pcs.

Warranty: 2 Years

SKU: 980214

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

21.09.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

24.09.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.86 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

24.09.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET FSD-604HP is an unmanaged Fast Ethernet desktop switch with six RJ-45 ports and integrated Power over Ethernet (PoE). It provides four 802.3at PoE+ ports and two 10/100BASE-TX uplink ports to power and connect small HD IP surveillance systems. The compact metal housing and fanless design enable silent, reliable operation in various environments while the switch supports a switching capacity of 1.2 Gbit/s and a MAC address table of 2000 entries.

Advantages

The FSD-604HP delivers centralized power distribution for IP cameras and other PoE devices, reducing cabling and eliminating the need for separate power outlets. It offers a 60-watt total PoE budget, two 10/100Mbps uplinks for stable data transmission, port-based VLAN isolation via a DIP switch, and enhanced ESD and surge protection for improved network stability. The device supports an extend mode that can transmit both power and data up to 250 m at 10 Mbps with up to 30 W per port, allowing greater installation flexibility.

Suitable for

Small-scale IP surveillance systems (up to 4 PoE cameras)
Small offices and workgroups deploying PoE devices (IP phones, wireless APs, door phones)
Environments requiring silent, fanless network equipment
Installations needing extended PoE reach (up to 250 m) for remote cameras

Key specifications

Ports: 6 x RJ-45 (4 PoE ports, 2 uplink 10/100BASE-TX)
PoE standard: IEEE 802.3at/af (PoE+)
Total PoE budget: 60 W
Extend mode: up to 250 m at 10 Mbps with up to 30 W per port
Switching capacity: 1.2 Gbit/s
MAC address table: 2000 entries
ESD protection: contact ±4 kV DC, air ±6 kV DC; surge immunity ±4 kV
Operation: unmanaged, fanless, desktop metal housing
Networking standards: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
Weight: 0.499 kg
Colour: Blue

How to use

Place the FSD-604HP on a stable surface and connect the uplink ports to your network recorder or switch using standard Ethernet cables. Connect PoE-capable IP cameras or other PoE devices to the four PoE ports; the switch will supply power and data over a single cable. Use the DIP switch to select Standard or Extend mode depending on required distance: Standard for normal IEEE 802.3at/af operation up to 100 m, or Extend mode to support transmission up to 250 m at reduced speed (10 Mbps) with up to 30 W per port. Configure network recording and monitoring on your NVR or surveillance software as needed; the unmanaged switch requires no additional configuration.

Usage recommendations

For stable surveillance operation, balance total PoE power consumption of connected devices to remain within the 60 W budget, use shielded or higher-quality cables for longer runs, and enable Extend mode only when cable distance exceeds 100 m. Place the switch in a ventilated area free from excessive heat despite its fanless design.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: No
Switching capacity: The data transfer capacity of the switch per second.: 1.2 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 6
Switch type: What switch device has, managed or unmanaged.: Unmanaged
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3

All features

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: CE, FCC

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.499 kg
Height: The measurement of the product from head to foot or from base to top.: 32 mm
Depth: The distance from the front to the back of something.: 93 mm
Width: The measurement or extent of something from side to side.: 168 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.: 214 BTU/h
Storage relative humidity (H-H):: 5 - 95
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 50

Power over Ethernet (PoE)

Power over Ethernet (PoE) power per port:: 60 W
Power over Ethernet (PoE) ports quantity:: 4
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes

Power

Power consumption (max): The maximum amount of power used by the device.: 63 W
Input current:: 2
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240

Design

LED indicators:: Power, PoE, Activity
Product colour: The colour e.g. red, blue, green, black, white.: Blue
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: No

Data transmission

Throughput:: 0.89 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 1.2 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2000 entries

Network

Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3x, IEEE 802.3u, IEEE 802.3at, IEEE 802.3af, IEEE 802.3

Ports & interfaces

Power connector:: DC-in jack
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 6

Management features

Switch type: What switch device has, managed or unmanaged.: Unmanaged
