Network Switch PLANET GSD-503

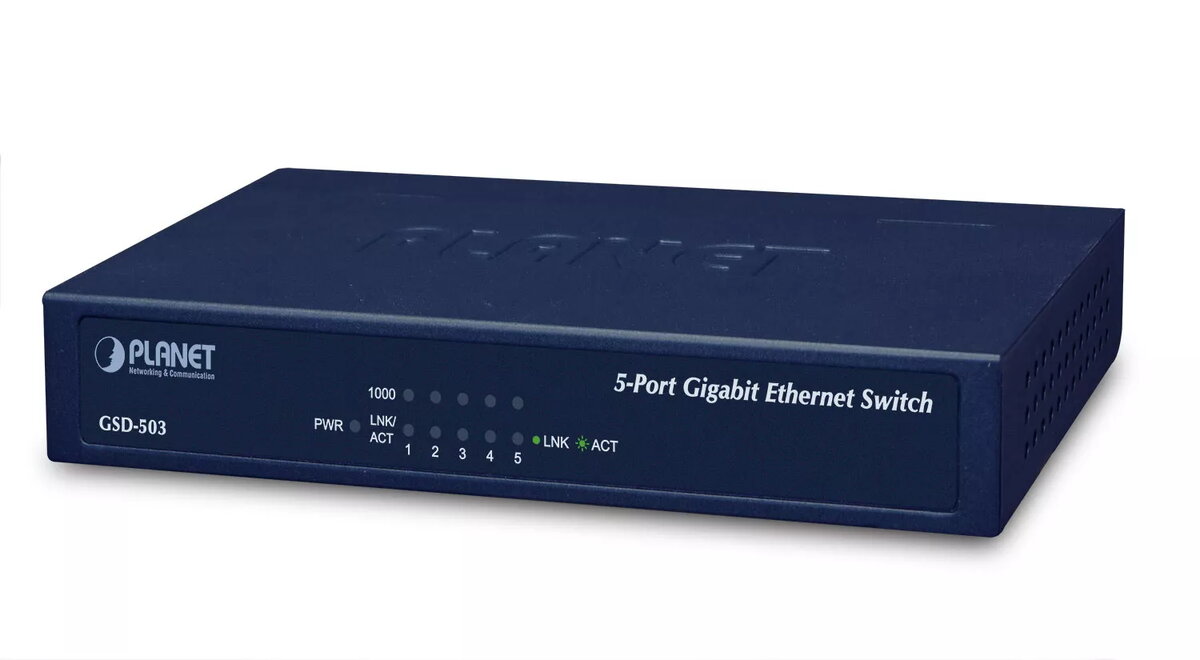

Name: Network Switch PLANET GSD-503 GSD-503
Brand: PLANET
SKU: 429850
Price: 21.99 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET GSD-503 is a Gigabit Ethernet network switch featuring 5 RJ-45 ports, full duplex support, and a switching capacity of 10 Gbit/s. It has a MAC address table with 2000 entries and complies with IEEE networking standards. With a DC input voltage of 5 V, this wall-mountable switch is ideal for efficient network management.

Available at price 21.99 €: 9 pcs.

Total available for order: 76 pcs.

Warranty: 2 Years

SKU: 429850

Charging device included

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

18.09.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.09.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.24 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

23.09.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 25.49 €: 9 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET GSD-503 is a compact 5-port Gigabit Ethernet switch designed for home, SOHO and small workgroup environments. It delivers wire-speed Gigabit performance with a 10 Gbit/s switching fabric and a 2K MAC address table while implementing energy-saving technologies to reduce power consumption without compromising network throughput.

Advantages

The GSD-503 combines Gigabit wire-speed packet forwarding and low-power operation by using Hibernation Link Down and cable-length based power adjustment technologies. It supports 10/100/1000 Mbps auto-negotiation and auto-MDI/MDI-X on all RJ45 ports, provides reliable full-duplex switching, and comes in a compact metal housing suitable for wall-mount deployment.

Suitable for

Home networks requiring Gigabit connectivity
SOHO (Small Office/Home Office) environments
Small workgroups connecting to a backbone or servers
Simple network upgrades to Gigabit speed

Key specifications

Ports: 5 × Gigabit Ethernet (10/100/1000) RJ-45
Switching capacity: 10 Gbit/s
MAC address table: 2,000 entries
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Power input: DC 5 V
Product colour: Blue
Weight: 0.317 kg

How to use

Place the PLANET GSD-503 on a flat surface or mount it on a wall using the provided brackets. Connect each network device to the switch using Cat5/5e/6 cables; the switch will auto-negotiate link speed (10/100/1000 Mbps) and automatically configure MDI/MDI-X. Connect the DC 5 V power adapter to power the unit. The device operates as a plug-and-play switch—no configuration is required for basic connectivity.

Usage recommendations

For optimal energy savings, use shorter Ethernet cables (under 20 m) when possible so the GSD-503 can reduce port power based on cable length. Place the switch in a well-ventilated area and connect critical servers or backbone links directly to the switch to take advantage of its wire-speed forwarding.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: No
Switching capacity: The data transfer capacity of the switch per second.: 10 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 5
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3

All features

Certificates

Certification:: FCC, CE

Packaging data

AC adapter included:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.317 kg
Height: The measurement of the product from head to foot or from base to top.: 26 mm
Depth: The distance from the front to the back of something.: 86 mm
Width: The measurement or extent of something from side to side.: 155 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.: 11 BTU/h
Storage relative humidity (H-H):: 5 - 95
Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 50

Power over Ethernet (PoE)

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: No

Power

Power consumption (max): The maximum amount of power used by the device.: 3.3 W
Input current:: 1
DC input voltage:: 5
Number of power supply units:: 1
Redundant power supply (RPS) support: Additional power supply which can run a computer if the main power supply fails.: No

Design

Wall mountable: The product can be mounted on (attached to ) a wall.: Yes
On/off switch: The button which is pressed to switch the device on or off.: Yes
LED indicators:: Y
Housing material: What the casing of the product is made of.: Metal
Product colour: The colour e.g. red, blue, green, black, white.: Blue
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: No

Protocols

Supported network protocols: Network protocols tested as compatible with this product e.g. FTP,HTML, POP.: CSMA / CD

Data transmission

Jumbo frames:: 9000
Jumbo frames support:: Yes
Store-and-forward:: Yes
Throughput:: 7.44 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 10 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 2000 entries

Network

Flow control support:: Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.: Yes
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3ab, IEEE 802.3

Ports & interfaces

Power connector:: DC-in jack
Gigabit Ethernet (copper) ports quantity:: 5
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 5
