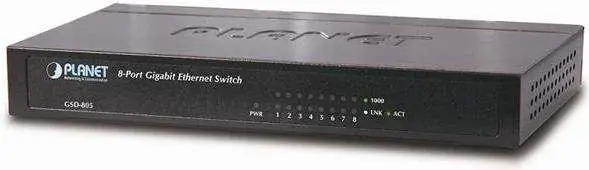

Unmanaged Switch PLANET GSD-805

Name: Unmanaged Switch PLANET GSD-805 GSD-805
Brand: PLANET
SKU: 455610
Price: 47.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET GSD-805 is an unmanaged gigabit Ethernet switch with 8 ports, supporting full duplex and a switching capacity of 16 Gbit/s. It features a MAC address table with 8000 entries and complies with IEEE networking standards. The switch is wall mountable and rack mountable, making it versatile for various setups. Ideal for small to medium networks, it provides reliable connectivity without the need for complex configuration.

Available at price 47.49 €: 22 pcs.

Total available for order: 76 pcs.

Warranty: 2 Years

SKU: 455610

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.77 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 50.99 €: 22 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET GSD-805 is an unmanaged 8-port Gigabit Ethernet switch that delivers wire-speed 10/100/1000 Mbps connectivity in a compact, fanless metal housing. Designed for homes, SOHOs and small offices, the switch provides a 16 Gbps switching fabric, an 8K MAC address table and standard IEEE compliance for stable Gigabit networks. It includes an internal power supply and supports wall or rack mounting for flexible installation.

Advantages

The GSD-805 combines energy-saving technologies with full Gigabit performance: Hibernation Link Down Power Saving reduces power to unused ports and an intelligent algorithm scales power according to cable length to maximize efficiency. It features VLAN isolation via a DIP switch to separate ports 1–7 when required, ESD surge protection up to 4 kV for improved stability, and plug-and-play operation with auto-negotiation and auto-MDI/MDI-X on all RJ45 ports.

Suitable for

Home networks requiring Gigabit connectivity
Small office / home office (SOHO) deployments
Small to medium business (SMB) workgroups and branch offices
Network edge or access layer connecting to backbone or servers

Key specifications

Switch type: Unmanaged
Ports: 8 x 10/100/1000BASE-T RJ45
Switching capacity: 16 Gbps
MAC address table: 8K entries
Standards: IEEE 802.3/802.3u/802.3ab/802.3az/802.3x
Power: internal power supply (no external adapter)
Protection: ESD surge protection up to 4 kV
Physical: compact metal housing, fanless, weight ~0.428 kg, colour: black

How to use

Place the GSD-805 on a stable surface or mount it on a wall/rack using available mounting points. Connect each network device with Cat5/5e/6 cables to the RJ45 ports; the ports support auto-negotiation and auto-MDI/MDI-X so no special cable type is required. The internal power supply plugs directly into an electrical outlet. Use the DIP switch to enable VLAN isolation for ports 1–7 when isolating IP cameras or other devices is necessary. The device operates without configuration (plug & play).

Usage recommendations

For maximum energy savings, use cables shorter than 20 m where possible so the switch can scale power per port effectively. Keep ventilation clear around the fanless metal housing and avoid placing the switch near strong electrostatic sources to maintain ESD protection effectiveness.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Weight:: 0.428 kg
10G support:: No
Basic switching RJ-45 Ethernet ports quantity:: 8
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Product colour:: Black

All features

Management features

Switch type:: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 8
Power connector:: DC-in jack

Power over Ethernet (PoE)

Power over Ethernet (PoE):: No

Protocols

Supported network protocols:: CSMA / CD

Certificates

Certification:: FCC Part 15 Class A, CE

Power

Input current:: 0.2
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240
Power supply included:: Yes

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -10 - 70
Operating temperature (T-T):: 0 - 50
Storage relative humidity (H-H):: 5 - 95

Logistics data

Harmonized System (HS) code:: 85176990

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Flow control support:: Yes
Auto MDI/MDI-X:: Yes
VLAN support:: Yes
10G support:: No
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
Half duplex:: Yes

Data transmission

MAC address table:: 8000 entries
Switching capacity:: 16 Gbit/s
Store-and-forward:: Yes
Packet buffer memory:: 1 MB
Throughput:: 11.9 Mpps

Weight & dimensions

Weight:: 0.428 kg
Height:: 32 mm
Width:: 168 mm
Depth:: 93 mm

Design

Rack mounting:: Yes
LED indicators:: Y
Wall mountable:: Yes
Product colour:: Black
Stackable:: No
Housing material:: Metal
