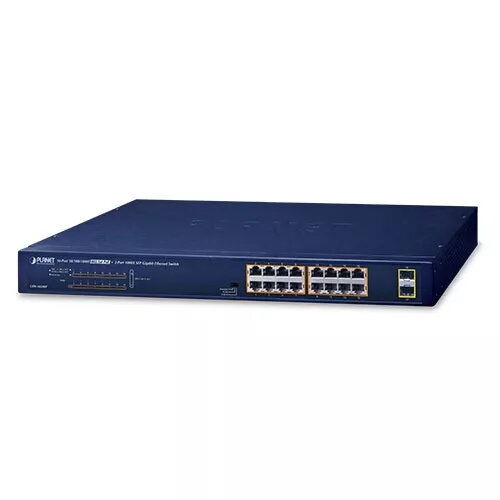

Unmanaged Network Switch PLANET GSW-1820HP

Unmanaged Network Switch PLANET GSW-1820HP Photo 1
Unmanaged Network Switch PLANET GSW-1820HP Photo 2
Unmanaged Network Switch PLANET GSW-1820HP Photo 3

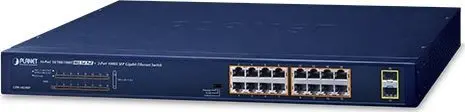

Unmanaged Network Switch PLANET GSW-1820HP Photo 4
Unmanaged Network Switch PLANET GSW-1820HP Photo 1
Unmanaged Network Switch PLANET GSW-1820HP Photo 2
Unmanaged Network Switch PLANET GSW-1820HP Photo 3
Unmanaged Network Switch PLANET GSW-1820HP Photo 4
Unmanaged Network Switch PLANET GSW-1820HP Photo 1
Unmanaged Network Switch PLANET GSW-1820HP Photo 2
Unmanaged Network Switch PLANET GSW-1820HP Photo 3
Unmanaged Network Switch PLANET GSW-1820HP Photo 4
Unmanaged Network Switch PLANET GSW-1820HP Photo 1
Unmanaged Network Switch PLANET GSW-1820HP Photo 2
Unmanaged Network Switch PLANET GSW-1820HP Photo 3
Unmanaged Network Switch PLANET GSW-1820HP Photo 4
Unmanaged Network Switch PLANET GSW-1820HP
{{selectedOffer && selectedOffer.price | formatAmount}}
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Network Switch PLANET GSW-1820HP

{{email}}
You keep track of price changes

Unmanaged Network Switch PLANET GSW-1820HP

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}
Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET GSW-1820HP is an unmanaged Gigabit Ethernet switch with 16 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 36 Gbit/s and a MAC address table of 8000 entries. Ideal for rack mounting, this 1U switch adheres to various networking standards including IEEE 802.3af and IEEE 802.3at, making it suitable for various network applications.
Available at price 166.49 €: 1 pcs.
Total available for order: 144 pcs.
Warranty: 2 Years
SKU: 3947644
Learn more
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

All delivery methods Hide details
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
12.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 2.67 kg)
Parcel couriers
Unisend LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
12.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
More about delivery methods
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 190.49 €: 71 pcs.
More about payment methods
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET GSW-1820HP is an unmanaged Gigabit Ethernet switch with integrated Power over Ethernet (PoE) delivering centralized power management for network devices. It provides 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 1000BASE-X SFP interfaces with an internal power system and a total PoE budget of 240 W. The switch supports IEEE 802.3af (up to 15.4 W) and IEEE 802.3at PoE+ (up to 30 W) on all ports and is designed for rack mounting in a 1U enclosure.

Advantages

The GSW-1820HP integrates data switching and power delivery into a single unit, reducing installation time and eliminating the need for separate AC wiring to powered devices. Its combination of 16 gigabit PoE+ ports and two SFP uplinks enables high-speed transmission and long-distance backbone connections. Energy-saving features such as Idle Mode Link Down (IEEE 802.3az) and intelligent power scaling based on cable length help lower overall power consumption. The switch also supports VLAN and an extend mode for increased Ethernet reach.

Suitable for

  • Powering and connecting IP surveillance cameras and PoE IP cameras to NVRs
  • Supplying PoE to wireless access points and VoIP phones in enterprise or SMB networks
  • Small-to-medium rack-mounted network deployments requiring centralized PoE

Key specifications

  • 16 x 10/100/1000BASE-T RJ-45 ports with IEEE 802.3af/802.3at PoE+ support
  • 2 x 1000BASE-X SFP slots for fiber uplink (multi-mode and single-mode compatible)
  • Total PoE budget: 240 W; per-port PoE: up to 30 W (802.3at) or 15.4 W (802.3af)
  • Switching capacity: 36 Gbit/s; MAC address table: 8,000 entries
  • Unmanaged switch; rack-mountable 1U form factor; product color: blue; weight: 2.67 kg
  • Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3az, 802.1Q, 802.3x

How to use

Mount the GSW-1820HP in a standard 19-inch rack or place it on a stable surface. Connect network devices (IP cameras, access points, VoIP phones) to the RJ-45 PoE ports; the switch will automatically negotiate link speed and provide PoE power per the IEEE standard. Use the SFP slots for fiber uplinks to backbone switches or monitoring centers. Set the DIP switch to the appropriate operation mode: Standard for normal PoE+ operation, VLAN to isolate ports and reduce multicast/broadcast impact, or Extend to provide up to 22 W at 10 Mbps over distances up to 250 m on each extended port.

Usage recommendations

For best results, calculate the total PoE power requirements of connected devices to ensure they do not exceed the 240 W budget. Use the Extend mode only where higher reach is required and bandwidth limitations at 10 Mbps per extended port are acceptable. Choose SFP transceivers compatible with your fiber type (multi-mode or single-mode) and distance requirements.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes
Switching capacity: The data transfer capacity of the switch per second.
36 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
16
Switch type: What switch device has, managed or unmanaged.
Unmanaged
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3
All features

Certificates

Certification:
FCC 15 A, CE

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
2.67 kg
Height: The measurement of the product from head to foot or from base to top.
44 mm
Depth: The distance from the front to the back of something.
208 mm
Width: The measurement or extent of something from side to side.
440 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.
921 BTU/h
Storage relative humidity (H-H):
5 - 95
Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 50

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:
240 W
Power over Ethernet (PoE) power per port:
30 W
Power over Ethernet (PoE) voltage: One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
52 V
Power over Ethernet plus (PoE+) ports quantity:
16
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes

Power

Power consumption (max): The maximum amount of power used by the device.
270 W
Input current:
5
AC input frequency:
50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240

Design

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
2 fan(s)
LED indicators:
Activity, LAN, Link, PoE, Power
Housing material: What the casing of the product is made of.
Metal
Product colour: The colour e.g. red, blue, green, black, white.
Blue
Form factor: The shape or design of the product.
1U
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes

Data transmission

Jumbo frames:
9216
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
26.8 Mpps
Switching capacity: The data transfer capacity of the switch per second.
36 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries

Optical fiber

Fiber ethernet cabling technology:
1000BASE-X

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Yes
Flow control support:
Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q, IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3

Ports & interfaces

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP, MiniGBIC
Fiber ports quantity: The number of sockets (ports) for fibers (cables).
2
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
16

Management features

Switch type: What switch device has, managed or unmanaged.
Unmanaged
