header-product Unmanaged Switch PLANET GSW-1820VHP
95.99 €

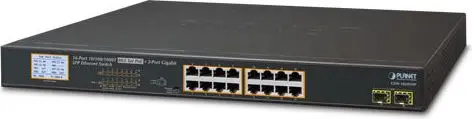

Unmanaged Switch PLANET GSW-1820VHP

Unmanaged Switch PLANET GSW-1820VHP Photo 1
Unmanaged Switch PLANET GSW-1820VHP Photo 2
Unmanaged Switch PLANET GSW-1820VHP Photo 1
Unmanaged Switch PLANET GSW-1820VHP Photo 2

Markdown: Demo

Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET GSW-1820VHP

{{email}}
You keep track of price changes

Unmanaged Switch PLANET GSW-1820VHP

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET GSW-1820VHP is an unmanaged Gigabit Ethernet switch with 16 ports, supporting Power over Ethernet (PoE). It features a full duplex mode, a MAC address table of 8000 entries, and a switching capacity of 36 Gbit/s. Compliant with various IEEE networking standards, this 1U rack-mountable switch is ideal for efficient network management and power delivery to connected devices.
Available at price 95.99 €: 1 pcs.
Total available for order: 2 pcs.
Warranty: 2 Years
Stāvoklis: Demo

Demo - Showcase sample. Opened packaging. There may be minor minor scratches.

SKU: 362891
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.11.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
20.11.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 3.40 kg)
Parcel couriers
Unisend LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
20.11.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 439.49 €: 1 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

PLANET GSW-1820VHP is an unmanaged Gigabit Ethernet switch with 16 10/100/1000BASE-T ports that deliver PoE+ (up to 30 W per port) and two 1000BASE-X SFP slots. The switch includes an internal power system with a total PoE budget of 300 W and non-blocking switching performance, making it suitable for IP surveillance and other PoE device deployments. A front-panel color LCD provides real-time PoE and port status, simple troubleshooting and configuration without a PC or additional software.

Advantages

The GSW-1820VHP combines full Gigabit copper ports and SFP uplinks with a large PoE+ power budget to power multiple HD cameras or other PoE devices. Its intuitive LCD control panel displays PoE status, port information and maintenance options for quick, on-site management. The switch supports three operation modes (Standard, VLAN and Extend), ESD and surge protection, and easy installation using a single cable for both power and data.

Suitable for

  • Small businesses and branch offices requiring PoE power for IP cameras and access points
  • Retail, hotels and public buildings for local surveillance and network edge deployments
  • System integrators installing PoE networks with SFP uplinks to central switches

Key specifications

  • Ports: 16 × 10/100/1000BASE-T PoE+ ports, 2 × 1000BASE-X SFP slots
  • PoE: up to 30 W per port, total PoE budget 300 W
  • Switching capacity: 36 Gbit/s; MAC table: 8,000 entries
  • Operation modes: Standard, VLAN (port-based), Extend (10 Mbps duplex, up to 250 m with 20 W PoE)
  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at
  • ESD/surge protection: contact ±6 kV, air ±8 kV; surge immunity ±6 kV
  • Form factor and color: desktop/1U rack-mountable style, blue; weight: 3.4 kg

How to use

Install the switch in a suitable location or rack, connect uplink fiber modules to the SFP slots if required, and connect PoE devices to the RJ45 ports using Cat5e/Cat6 cables. The front LCD provides per-port PoE and link status and allows selection of Standard, VLAN or Extend modes. In Extend mode, the switch supports 10 Mbps duplex with PoE up to 250 m for compatible devices. No additional software is required for basic operation; power on the unit and attach devices to begin supplying data and PoE.

Usage recommendations

For stable operation distribute PoE load evenly across ports to avoid exceeding the 300 W budget, choose appropriate SFP transceivers for required fiber distance, and use shielded or recommended Category cables (Cat5e/Cat6) for optimal Gigabit performance. Use Extend mode only when longer cable runs are necessary and ensure connected PDs support reduced data rates and the extended-distance PoE mode.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes
Switching capacity: The data transfer capacity of the switch per second.
36 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
16
Switch type: What switch device has, managed or unmanaged.
Unmanaged
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3
All features

Certificates

Certification:
FCC Part 15 Class A, CE

Packaging content

Manual:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
3.4 kg
Height: The measurement of the product from head to foot or from base to top.
44 mm
Depth: The distance from the front to the back of something.
233 mm
Width: The measurement or extent of something from side to side.
440 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.
1132 BTU/h
Storage relative humidity (H-H):
5 - 90
Operating relative humidity (H-H):
10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
-10 - 60

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:
300 W
Power over Ethernet (PoE) power per port:
30 W
Power over Ethernet (PoE) ports quantity:
16
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Yes

Power

Power consumption (max): The maximum amount of power used by the device.
330 W
Input current:
5
AC input frequency:
50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240

Design

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
3 fan(s)
Housing material: What the casing of the product is made of.
Metal
Product colour: The colour e.g. red, blue, green, black, white.
Blue
Form factor: The shape or design of the product.
1U
Rack mounting: The type of mounting that can position devices in a shelving system (rack).
Yes

Data transmission

Jumbo frames:
9216
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
26.8 Mpps
Switching capacity: The data transfer capacity of the switch per second.
36 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Yes
Auto MDI/MDI-X: A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Yes
MAC address auto-learning supported:
Yes
MAC address auto-aging supported:
Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Yes
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.
No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3

Ports & interfaces

SFP module slots quantity:
2
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).
16

Management features

Switch type: What switch device has, managed or unmanaged.
Unmanaged

Description
