Short description

The PLANET GSW-2620VHP is an unmanaged Gigabit Ethernet switch with 24 ports, supporting Power over Ethernet (PoE). It features a full duplex operation, a MAC address table with 8000 entries, and a switching capacity of 52 Gbit/s. Compliant with various IEEE networking standards, it is designed for easy rack mounting in a 1U form factor, making it ideal for network expansion and efficient power management.

Available at price 302.99 €: 24 pcs.

Total available for order: 51 pcs.

Warranty: 2 Years

SKU: 362887

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.08.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

20.08.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 4.40 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

20.08.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

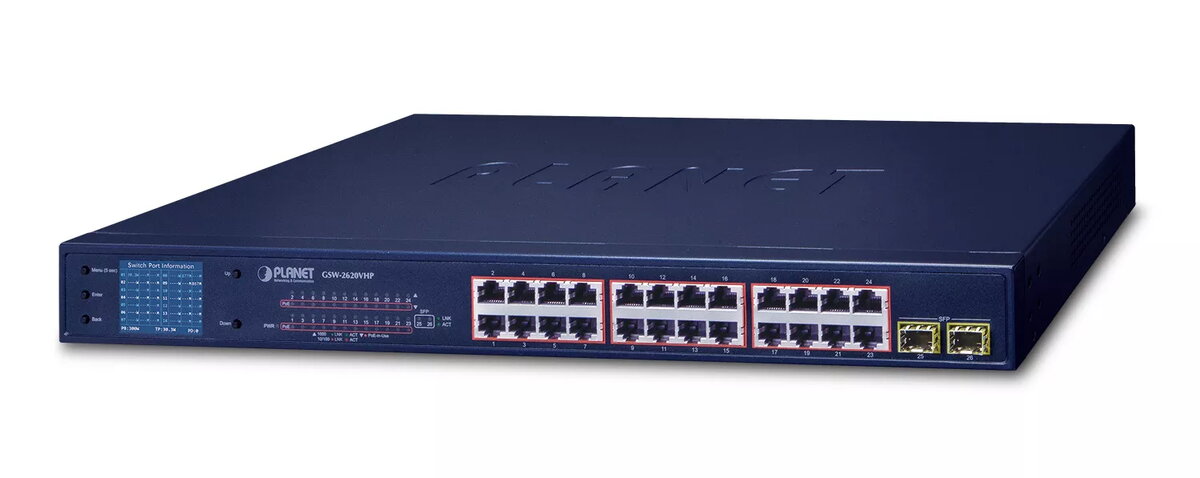

PLANET GSW-2620VHP is an unmanaged Gigabit Ethernet switch with 24 10/100/1000BASE-T ports that deliver 30-watt 802.3at Power over Ethernet Plus (PoE+) per port and two 1000BASE-X SFP slots. With a total PoE power budget up to 300 watts, non-blocking switching performance and an inner power system, the GSW-2620VHP provides a compact desktop or 1U rackable solution for small businesses and system integrators deploying HD IP surveillance and other PoE devices.

Advantages

The switch offers quick installation with a “Plug and Watch” design and an intuitive color LCD on the front panel for real-time PoE and port status monitoring, basic configuration and immediate troubleshooting without a PC or software. It supports three operation modes (Standard, VLAN, Extend) to adapt to normal PoE switching, port-based VLAN isolation and extended-distance PoE delivery up to 250 meters at reduced speed. Built-in SFP slots allow fiber uplinks for long-distance backbone connections, while ESD and surge protection improve stability and network resilience.

Suitable for

HD IP surveillance systems
Small to medium business networks
Hotel, retail and public-area network deployments
Edge switches with fiber uplinks to the core

Key specifications

Ports: 24 x 10/100/1000BASE-T PoE+ ports, 2 x 1000BASE-X SFP slots
PoE standard: IEEE 802.3af/at (PoE/PoE+), 30 W per port, total budget up to 300 W
Switching capacity: 52 Gbit/s; MAC table: 8,000 entries
Operation modes: Standard, VLAN, Extend (10Mbps duplex + up to 250 m PoE in Extend)
ESD/surge protection: Contact ±6 kV, air ±8 kV, surge immunity ±6 kV
Auto-negotiation: 10/100/1000 Mbps, auto MDI/MDIX support
Form factor/weight: Desktop / 1U rackable; weight approx. 3.5 kg
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.3az
Color: Blue

How to use

Place the GSW-2620VHP on a stable surface or mount it in a 1U rack. Connect network devices and PoE endpoints to the RJ45 ports using Cat5/5e/6 cables; the ports support auto-negotiation and auto MDI/MDIX so straight or crossover cables are not required. Use the front-panel LCD to view PoE and port status, select the desired operation mode (Standard, VLAN or Extend) and perform basic maintenance tasks such as resetting to factory defaults or adjusting fan control. For backbone connections, insert compatible 1000BASE-SX/LX SFP transceivers into the SFP slots and connect fiber to the monitoring center or core switch.

Usage recommendations

To ensure reliable PoE delivery and signal quality, use appropriate Cat5e or Cat6 cabling for standard 100 m runs and select the Extend mode only when longer PoE reach is required; verify connected PD power requirements to stay within the 300 W total PoE budget.

Specifications

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes
Switching capacity: The data transfer capacity of the switch per second.: 52 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 8000 entries
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24
Switch type: What switch device has, managed or unmanaged.: Unmanaged
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3

All features

Logistics data

Harmonized System (HS) code:: 85176990

Certificates

Certification:: FCC 15 A, CE

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 3.5 kg
Height: The measurement of the product from head to foot or from base to top.: 44 mm
Depth: The distance from the front to the back of something.: 233 mm
Width: The measurement or extent of something from side to side.: 440 mm

Operational conditions

Heat dissipation: The heat generated by the power supply.: 1132 BTU/h
Storage relative humidity (H-H):: 5 - 90
Operating relative humidity (H-H):: 10 - 90
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -10 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: -10 - 60

Power over Ethernet (PoE)

Total Power over Ethernet (PoE) budget:: 300 W
Power over Ethernet (PoE) power per port:: 30 W
Power over Ethernet plus (PoE+) ports quantity:: 24
Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.: Yes

Power

Power consumption (max): The maximum amount of power used by the device.: 330 W
Input current:: 5
AC input frequency:: 50 - 60
AC input voltage: The voltage of the AC electricity that is inputted into the product.: 100 - 240

Design

Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).: 3 fan(s)
LED indicators:: Link, PoE, Power
Housing material: What the casing of the product is made of.: Metal
Product colour: The colour e.g. red, blue, green, black, white.: Blue
Form factor: The shape or design of the product.: 1U
Rack mounting: The type of mounting that can position devices in a shelving system (rack).: Yes

Data transmission

Jumbo frames:: 9216
Jumbo frames support:: Yes
Store-and-forward:: Yes
Throughput:: 38.7 Mpps
Switching capacity: The data transfer capacity of the switch per second.: 52 Gbit/s
MAC address table: The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.: 8000 entries

Optical fiber

Fiber ethernet cabling technology:: 1000BASE-X

Network

VLAN support: A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.: Yes
Flow control support:: Yes
Full duplex: A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.: Yes
Half duplex:: Yes
Copper ethernet cabling technology:: 10BASE-T, 100BASE-TX, 1000BASE-T
10G support: The product can use Oracle 10G, which is a database management system introduced in 2003.: No
Networking standards: The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.: IEEE 802.3z, IEEE 802.3x, IEEE 802.3u, IEEE 802.3az, IEEE 802.3at, IEEE 802.3af, IEEE 802.3ab, IEEE 802.3

Ports & interfaces

Fiber optic connector: This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.: SFP, MiniGBIC
SFP module slots quantity:: 2
Basic switching RJ-45 Ethernet ports type: The type/category of basic switching RJ-45 Ethernet ports (sockets).: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: The number of basic switching RJ-45 Ethernet ports (sockets).: 24

Management features

Switch type: What switch device has, managed or unmanaged.: Unmanaged
