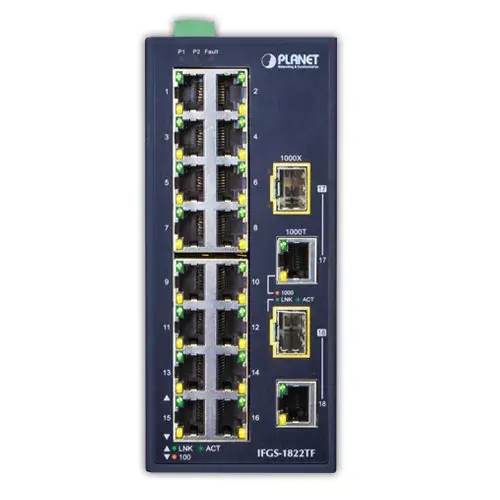

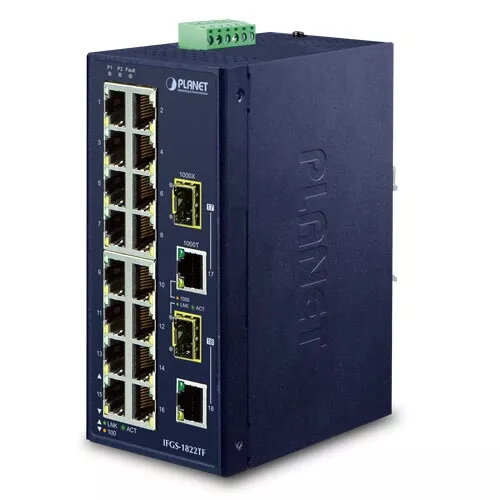

PLANET IFGS-1822TF Unmanaged Network Switch with 16 Fast Ethernet Ports and 2 Gigabit TP/SFP Combo Ports

The PLANET IFGS-1822TF is a robust, unmanaged network switch engineered for reliable performance in demanding industrial and office environments. Featuring 16 Fast Ethernet ports and 2 versatile Gigabit TP/SFP combo ports, this device ensures stable data transmission and flexible connectivity options. Its compact, IP30-rated design allows for seamless integration into space-constrained areas, while its ability to operate across a wide temperature range makes it suitable for challenging locations. The switch incorporates advanced energy-saving technologies, including IEEE 802.3az compliance, to optimize power consumption without compromising network throughput.

Advantages

This switch offers exceptional durability with its ruggedized housing, providing high immunity against electromagnetic interference and electrical surges. The inclusion of dual Gigabit combo ports allows for high-speed uplinks to backbone switches or monitoring centers, supporting both copper and fiber optic connections for long-distance data transmission. Furthermore, the device supports redundant power inputs, ensuring continuous operation in critical infrastructure. Its plug-and-play functionality simplifies deployment, eliminating the need for complex configuration while maintaining high-performance standards for data-intensive applications.

Suitable for

• Industrial automation and control systems
• Traffic control cabinets and outdoor monitoring
• Small to medium-sized office network expansions
• Data distribution in environments with high electromagnetic interference
• Long-distance network connectivity using fiber optic uplinks

This device may not be suitable for large-scale enterprise networks that require advanced management features such as VLAN tagging, SNMP monitoring, or complex traffic prioritization. Since it is an unmanaged switch, it lacks the administrative tools necessary for granular network control and security configuration.

Key specifications

• 16 x 10/100BASE-TX Fast Ethernet ports
• 2 x Gigabit TP/SFP combo ports
• Switching capacity: 7.2 Gbit/s
• MAC address table: 16,000 entries
• Operating temperature: -40 to 75 degrees Celsius
• Protection: IP30-rated rugged case, ±6KV ESD and surge immunity
• Networking standards: IEEE 802.1p, 802.3ab, 802.3az, 802.3u, 802.3x, 802.3z

How to use

Installation is straightforward due to the plug-and-play design. Simply mount the unit in the desired location using the provided wall-mount hardware. Connect your network devices to the 16 Fast Ethernet ports using standard RJ-45 cables. For high-speed uplinks or long-distance connections, utilize the two Gigabit combo ports by inserting the appropriate SFP module or connecting via copper cable. Connect the power source to the redundant input terminals, ensuring the voltage is within the specified range. Once powered, the device will automatically detect connected devices and begin traffic forwarding without further configuration.

What to consider before purchase

• Ensure your network requirements do not necessitate managed features like VLANs or port mirroring.
• Verify that your power supply matches the supported input voltage range.
• Check if your existing SFP modules are compatible with the 1000BASE-SX/LX standards.
• Confirm that the port density meets your current and near-future connectivity needs.

Usage recommendations: To maximize energy efficiency, ensure that connected Ethernet cables are of high quality and appropriate length, as the switch utilizes intelligent power scaling based on cable distance. For optimal longevity in industrial settings, ensure the unit is installed in a location that allows for adequate airflow despite its compact size.
