Unmanaged Switch PLANET IFGS-620TF

Name: Unmanaged Switch PLANET IFGS-620TF 4 IFGS-620TF
Brand: PLANET
SKU: 11367450
Price: 100.49 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Unmanaged Switch PLANET IFGS-620TF 4 Ports Fast Ethernet 10/100

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET IFGS-620TF is an unmanaged switch with 4 Fast Ethernet ports and 2 SFP slots. It supports full duplex and has a switching capacity of 4.8 Gbit/s. Ideal for basic networking needs, it features a MAC address table with 4000 entries and complies with IEEE networking standards. Wall mountable for convenience.

Available at price 100.49 €: 12 pcs.

Total available for order: 44 pcs.

Warranty: 2 Years

SKU: 11367450

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.55 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 113.99 €: 12 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

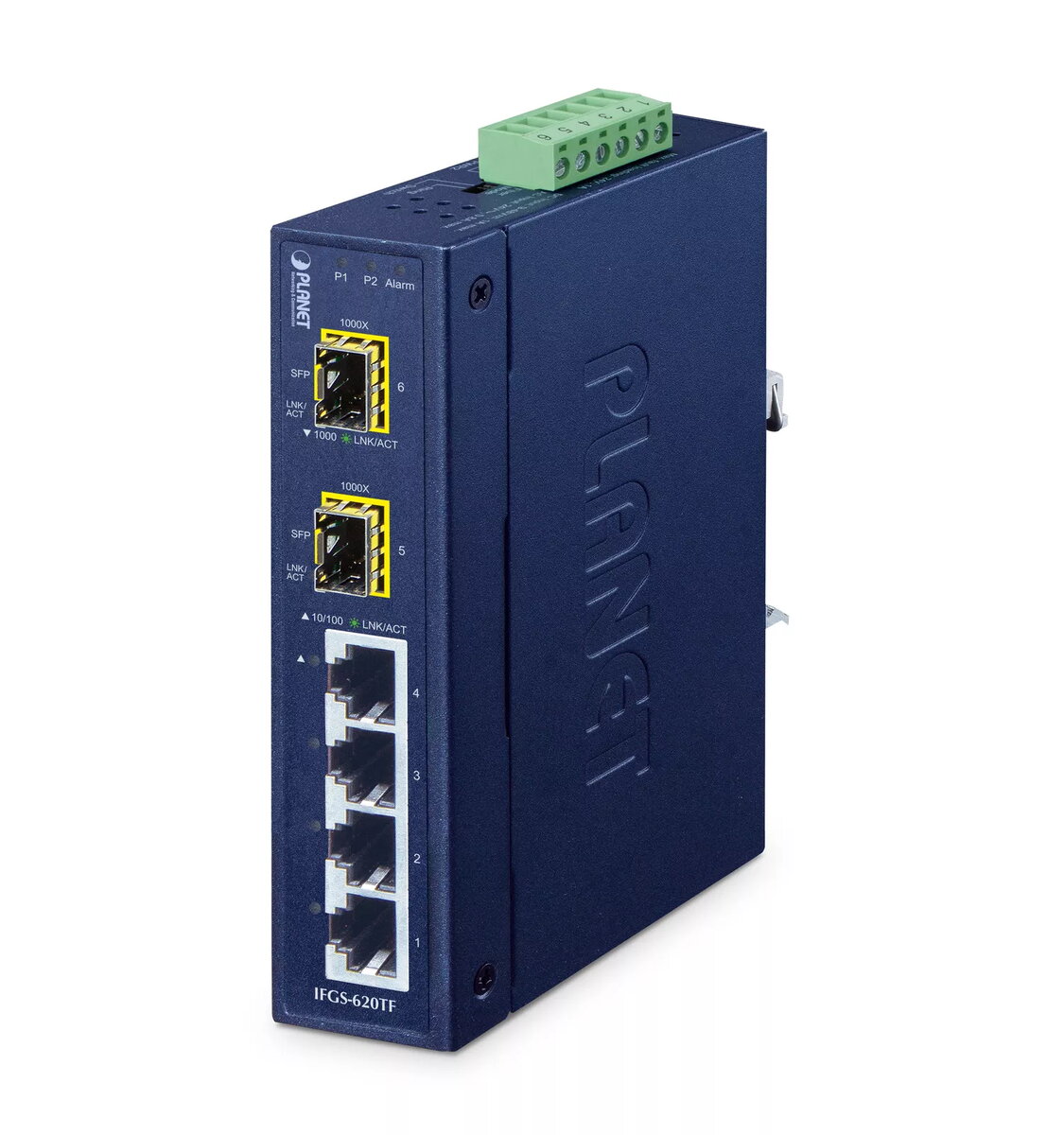

PLANET IFGS-620TF is a compact unmanaged industrial Ring Ethernet switch with four 10/100BASE-TX copper ports and two 1000BASE-X SFP fiber ports in an IP30-rated rugged case. Designed to operate from -40 to 75 °C and to accept wide-range redundant power (9–48V DC or 24V AC), the IFGS-620TF provides stable long-range data transmission and can be mounted in space-limited or harsh environments. The switch supports full-duplex communication, a 4.8 Gbit/s switching capacity and a 4000-entry MAC address table, making it suitable for basic industrial networking and IIoT deployments.

Advantages

The IFGS-620TF offers fast ring recovery technology with a recovery time as low as 1 ms in small ring topologies, PROFINET traffic prioritization for faster delivery of industrial automation traffic, dual SFP fiber uplinks to extend network reach up to 120 km (with appropriate SFP modules), and a dual wide-range power input for high availability. Energy-efficient features (IEEE 802.3az) and ESD/surge protection (±6 kV contact/air and ±6 kV surge immunity) further increase reliability and lower operational costs.

Suitable for

Small to medium industrial networks requiring redundant ring topology
Factory automation and PROFINET device connectivity
Long-distance uplink links using SFP fiber (FTTB/FTTC/FTTH scenarios)
Space-limited installations such as wall enclosures or control cabinets

Key specifications

Switch type: Unmanaged
RJ-45 ports: 4 x 10/100BASE-TX (Fast Ethernet)
SFP ports: 2 x 1000BASE-X SFP
Switching capacity: 4.8 Gbit/s
MAC address table: 4000 entries
Power input: 9–48V DC or 24V AC (dual power input for redundancy)
Operating temperature: -40 to 75 °C
Protection rating: IP30, ESD ±6 kV contact/air, surge ±6 kV
Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az
Weight: 0.43 kg

How to use

Install the IFGS-620TF on a DIN rail or fix it to a wall enclosure in your control room or cabinet. Insert appropriate 1000BASE-X SFP transceivers into the SFP slots for fiber uplinks when long-distance connections are required. Connect copper devices to the 10/100BASE-TX RJ-45 ports. Configure power by supplying redundant power sources (9–48V DC or 24V AC) to the dual inputs to enable automatic hardware failover. The switch is unmanaged and operates plug-and-play; for ring redundancy enable the One Key Ring function via the DIP switch according to the network topology documentation.

Usage recommendations

Use compatible SFP modules (multi-mode or single-mode) matched to fiber type and distance requirements, place the switch inside an IP30-protected enclosure if exposed to dust or debris, and provide redundant power sources to maximize uptime. When integrating with PROFINET devices, ensure QoS-sensitive traffic is routed through the IFGS-620TF to take advantage of PROFINET prioritization.

Specifications

Switch type:: Unmanaged
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Weight:: 0.43 kg
Basic switching RJ-45 Ethernet ports quantity:: 4
Product colour:: Blue
Networking standards:: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

All features

Design

LED indicators:: Y
Wall mountable:: Yes
Product colour:: Blue
Housing material:: Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Management features

Switch type:: Unmanaged

Ports & interfaces

Installed SFP modules quantity:: 2
Basic switching RJ-45 Ethernet ports type:: Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity:: 4

Power

Power source:: AC/DC

Operational conditions

Operating relative humidity (H-H):: 5 - 95
Storage temperature (T-T):: -40 - 75
Operating temperature (T-T):: -40 - 75
Storage relative humidity (H-H):: 5 - 95

Network

Full duplex:: Yes
Networking standards:: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Broadcast storm control:: Yes
Auto MDI/MDI-X:: Yes
Auto-negotiation:: Yes
MAC address auto-learning supported:: Yes
MAC address auto-aging supported:: Yes
Half duplex:: Yes

Data transmission

MAC address table:: 4000 entries
Switching capacity:: 4.8 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Throughput:: 3.57 Mpps

Weight & dimensions

Weight:: 0.43 kg
Height:: 135 mm
Width:: 32 mm
Depth:: 87.8 mm

Hide Show all

Description

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Warehouse	Stock	Delivery to the store	Store Price
WH354	12	10.07.2026	113.99 €
EU3	2	03.07.2026 Best delivery	137.49 €

Available only for legal entities
Warehouse	Stock	Delivery to the store	Store Price
EU6	12	03.07.2026 Best delivery	100.49 € Best price
WH109	12	17.07.2026	129.99 €
EU4	6	17.07.2026	137.49 €

113.99 €

Stock: 12

Delivery Date: 10.07.2026

Warehouse: WH354

137.49 €

Stock: 2

Delivery Date: 03.07.2026 Best delivery

Warehouse: EU3

Available only for legal entities

100.49 €

Stock: 12

Delivery Date: 03.07.2026 Best delivery

Warehouse: EU6

129.99 €

Stock: 12

Delivery Date: 17.07.2026

Warehouse: WH109

137.49 €

Stock: 6

Delivery Date: 17.07.2026

Warehouse: EU4

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the Unmanaged Switch PLANET IFGS-620TF cost, and is it available for purchase?

The price is 100.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 44 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 03.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All PLANET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized PLANET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: switch type, basic switching rj-45 ethernet ports type, weight, basic switching rj-45 ethernet ports quantity, product colour, networking standards, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.
