Unmanaged Switch PLANET IP30 Ind 8-P 10/100/1000T

Name: Unmanaged Switch PLANET IP30 Ind IGS-1020PTF-12V
Brand: PLANET
SKU: 4076782
Price: 413.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The PLANET IP30 Ind 8-P 10/100/1000T is an unmanaged Gigabit Ethernet switch with 8 ports, supporting Power over Ethernet (PoE). It features a switching capacity of 20 Gbit/s and a MAC address table with 8000 entries. The switch complies with multiple networking standards including IEEE 802.3af and IEEE 802.3at, making it ideal for various applications. With a DC input voltage range of 12 - 56 V, it is wall mountable and suitable for industrial environments.

Available for order: 3 pcs.

Warranty: 2 Years

SKU: 4076782

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

17.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

22.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.39 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

22.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

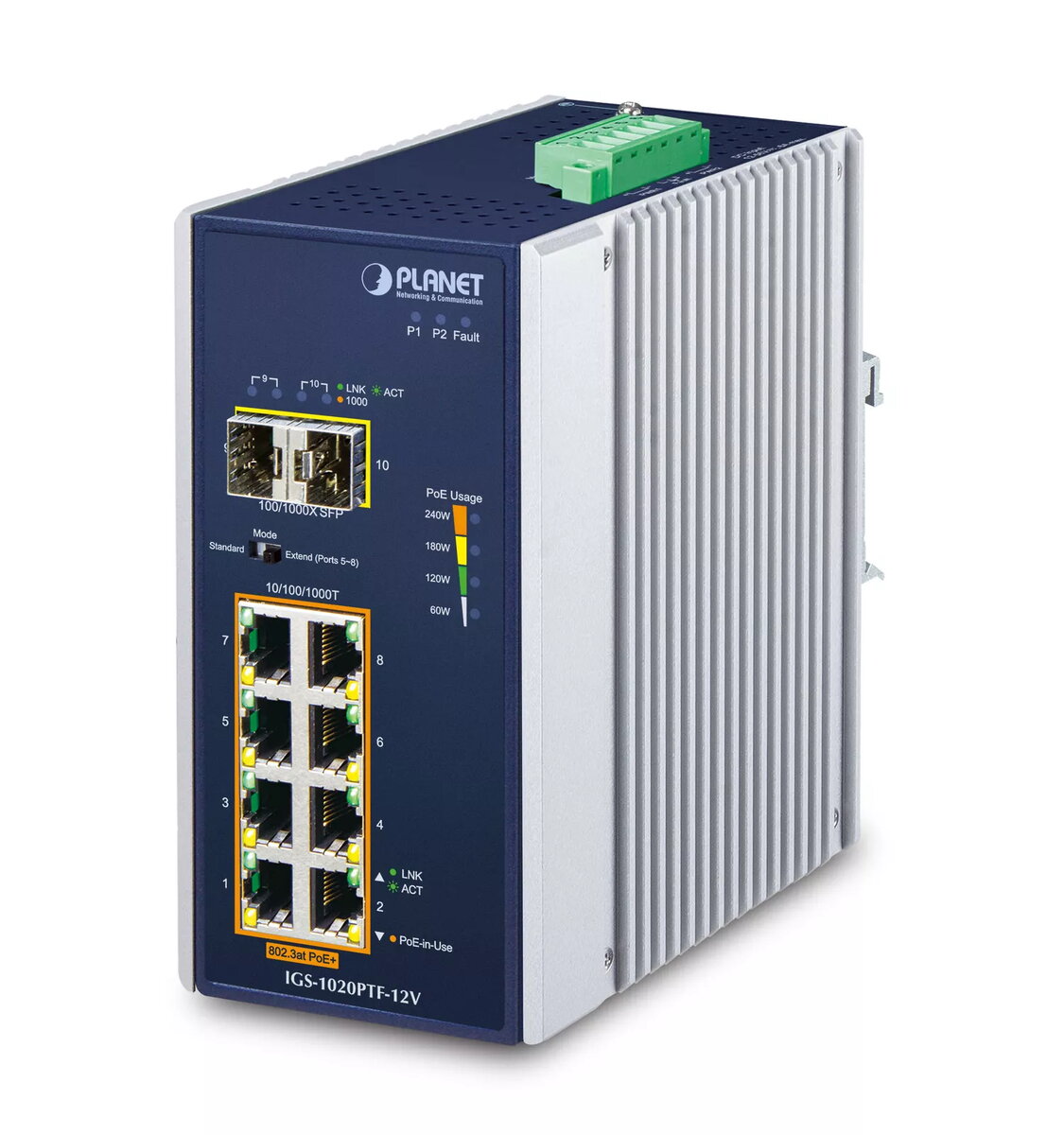

The PLANET IGS-1020PTF-12V is an industrial-grade unmanaged Gigabit Ethernet PoE+ switch with eight 10/100/1000BASE-T ports and two 100/1000BASE-X SFP fiber uplink slots. Housed in an IP30 aluminum case and supporting a wide DC input range (12–56 V) with redundant power capability, the switch provides up to 240 W total PoE budget, operates from -40 to 75 °C, and is designed for installation on DIN-rail or wall mounting in hardened environments.

Advantages

This switch delivers full IEEE 802.3at PoE+ power across eight Gigabit copper ports while also offering two SFP slots for flexible fiber uplink and long-distance extension. Its wide DC input and built-in power boost (12–56 V to ~54–56 V) support common industrial power sources without special PSUs. The unit’s fanless aluminum IP30 housing provides EMI immunity and silent operation, and integrated ESD and surge protection improve stability in harsh operational environments. A front-panel LED array shows incremental PoE power usage (60 / 120 / 180 / 240 W) for easy monitoring.

Suitable for

IP camera systems and surveillance PoE deployments
Traffic control cabinets and transportation networks
Factory floor automation and industrial control networks
Long-distance uplink requirements using SFP fiber modules

Key specifications

Model: IGS-1020PTF-12V (PLANET)
Ports: 8 × 10/100/1000BASE-T (PoE+), 2 × 100/1000BASE-X SFP
PoE standard: IEEE 802.3at (PoE+), backward compatible with IEEE 802.3af
Total PoE budget: up to 240 W
Switching capacity: 20 Gbit/s
MAC table: 8000 entries
Input voltage: 12–56 V DC (internal boost to ~54–56 V DC)
Operating temperature: -40 to 75 °C
Housing: IP30 aluminum, fanless
Weight: 1.164 kg

How to use

Mount the switch on a DIN rail or fasten it to a wall enclosure in a suitable industrial location. Connect one or two DC power sources to the redundant power inputs using the manufacturer’s wiring guidelines. Insert SFP transceivers into the mini-GBIC slots if fiber uplinks are required, selecting multimode or single-mode modules according to needed distance and speed. Plug PoE-powered devices into the RJ-45 ports; choose the front-panel DIP switch “Standard” mode for normal Gigabit PoE+ operation or “Extend” mode to enable 10 Mbps full-duplex operation per port and support longer UTP cable runs (up to 250 m) with reduced per-port PoE output.

Usage recommendations

For reliable PoE delivery in industrial setups, use appropriate gauge DC cabling and provide dual or backup power sources. Select SFP modules that match fiber type and distance requirements, and verify total PoE load to avoid exceeding the 240 W budget.

Specifications

Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
10G support:: No
Weight:: 1.164 kg
Basic switching RJ-45 Ethernet ports quantity:: 8
Switch type:: Unmanaged
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Product colour:: Blue, White

All features

Ports & interfaces

Installed SFP modules quantity:: 2
Basic switching RJ-45 Ethernet ports type:: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:: 8

Design

LED indicators:: Y
Wall mountable:: Yes
Product colour:: Blue, White
Housing material:: Aluminium
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.: IP30
DIN rail mounting:: Yes

Certificates

Certification:: FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)

Power

Input current:: 6
DC input voltage:: 12 - 56

Operational conditions

Operating relative humidity (H-H):: 5 - 90
Storage temperature (T-T):: -40 - 85
Operating temperature (T-T):: -40 - 75
Storage relative humidity (H-H):: 5 - 90

Logistics data

Harmonized System (HS) code:: 85176990

Network

Full duplex:: Yes
Networking standards:: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Auto MDI/MDI-X:: Yes
10G support:: No
Half duplex:: Yes

Data transmission

MAC address table:: 8000 entries
Switching capacity:: 20 Gbit/s
Jumbo frames support:: Yes
Store-and-forward:: Yes
Throughput:: 14.8 Mpps
Jumbo frames:: 9000

Weight & dimensions

Weight:: 1.164 kg
Height:: 152 mm
Width:: 77 mm
Depth:: 106 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):: Yes

Management features

Switch type:: Unmanaged
