header-product Unmanaged Switch PLANET IGS-1020TF
182.49 €

Unmanaged Switch PLANET IGS-1020TF

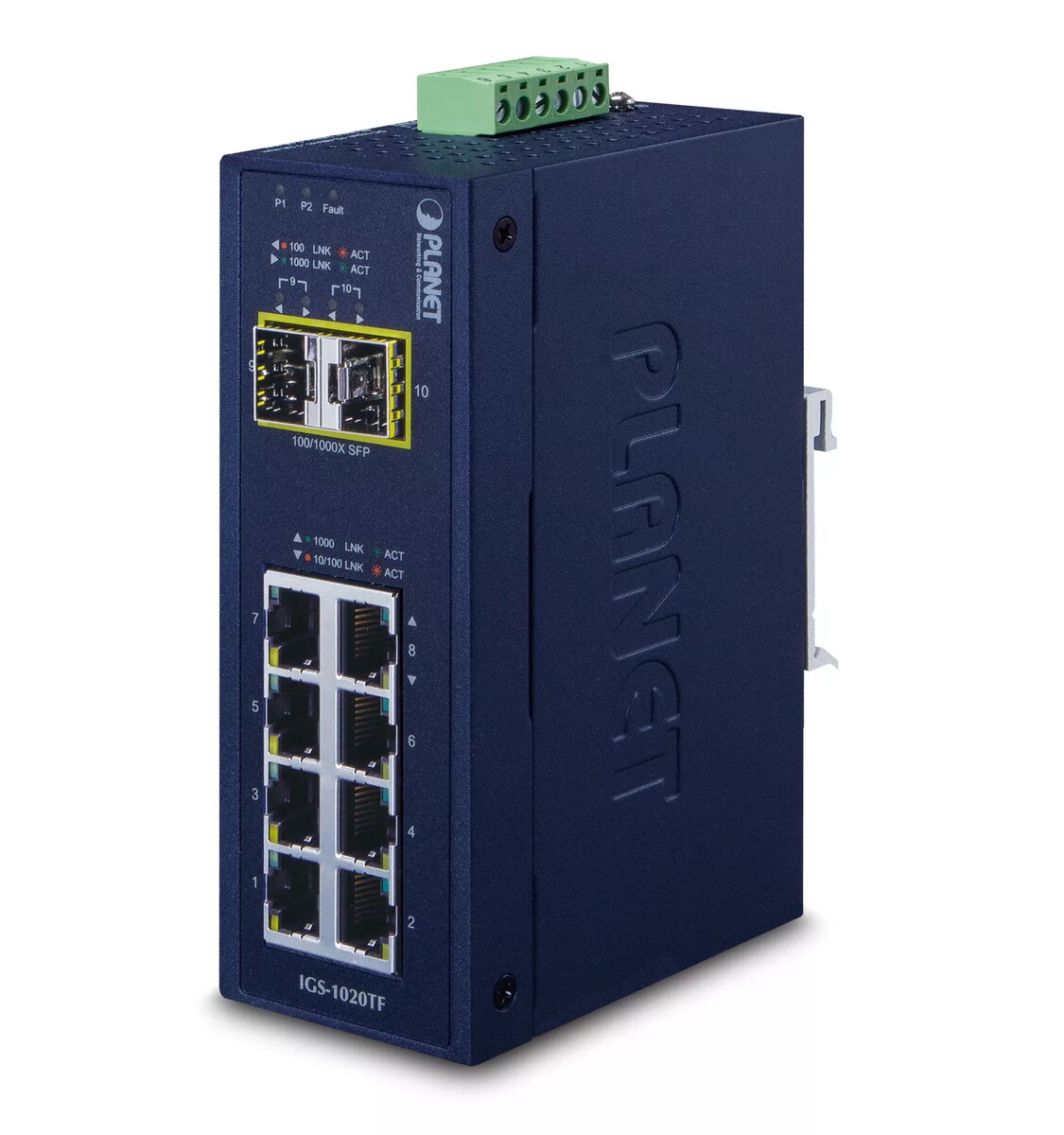

Unmanaged Switch PLANET IGS-1020TF Photo 1
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Unmanaged Switch PLANET IGS-1020TF

{{email}}
You keep track of price changes

Unmanaged Switch PLANET IGS-1020TF

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The PLANET IGS-1020TF is an unmanaged Gigabit Ethernet switch with 8 RJ-45 ports, supporting 10/100/1000 Mbps speeds. It features a full duplex operation, a MAC address table with 4000 entries, and a switching capacity of 20 Gbit/s. Compliant with multiple IEEE standards, it operates on a 24V DC input and is wall mountable, making it a versatile choice for network expansion.
Available at price 182.49 €: 10 pcs.
Total available for order: 83 pcs.
Warranty: 2 Years
SKU: 637453
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.76 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Available for private customers at price 198.99 €: 2 pcs.
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The PLANET IGS-1020TF is an industrial-grade unmanaged Gigabit Ethernet switch designed for reliable network extension in harsh environments. It provides eight 10/100/1000BASE-T RJ45 copper ports and two 100/1000BASE-X SFP fiber slots in an IP30 metal housing with redundant power inputs. The switch operates over a wide temperature range (−40 to 75 °C) and supports DIN-rail or wall mounting for flexible installation in industrial, surveillance, and outdoor cabinet scenarios.

Advantages

The IGS-1020TF offers non-blocking wire-speed switching performance with a switching capacity of 20 Gbit/s and a 4K-entry MAC address table for efficient traffic forwarding. Dual mini-GBIC SFP slots allow selection of 100BASE-FX or 1000BASE-SX/LX transceivers to match required distance and speed. The rugged IP30 metal case and wide operating temperature ensure electromagnetic and environmental resilience, while dual DC/AC power input with automatic failover increases system availability. Energy-saving features including IEEE 802.3az support and Link Down/cable-length power scaling reduce power consumption.

Suitable for

  • Industrial automation networks and factory floors
  • IP surveillance and remote monitoring systems
  • Traffic control cabinets and outdoor network cabinets
  • Network uplinks to backbone switches and monitoring centers over fiber

Key specifications

  • Ports: 8 × 10/100/1000BASE-T RJ45, 2 × 100/1000BASE-X SFP
  • Switching capacity: 20 Gbit/s; MAC table: 4,000 entries
  • Power: Dual input 12–48 V DC or 24 V AC (redundant)
  • Operating temperature: −40 to 75 °C
  • Housing: IP30 rugged metal case; mounting: DIN-rail or wall
  • Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1p, 802.3az
  • Weight: 0.54 kg

How to use

Install the IGS-1020TF on a DIN rail or mount it on a wall in a suitable cabinet. Insert SFP transceivers into the mini-GBIC slots if fiber uplink is required and connect fiber cables; otherwise connect devices using Cat5e/6 cables to RJ45 ports. Provide power via the primary power input and connect the redundant power source to the secondary input to enable automatic failover. The unmanaged switch requires no software configuration; it will auto-negotiate link speed and duplex with connected devices and support auto MDI/MDI-X for cable type detection.

Usage recommendations

Use appropriate SFP transceivers (100BASE-FX or 1000BASE-SX/LX) to match distance requirements, ensure proper grounding and surge protection in electrically noisy environments, and connect a redundant power source to maintain high availability. For optimal energy savings, use shorter cable runs when possible and enable IEEE 802.3az-compatible endpoints.

Specifications

Weight:
0.54 kg
10G support:
No
Basic switching RJ-45 Ethernet ports quantity:
8
Switch type:
Unmanaged
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Product colour:
Blue
Networking standards:
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
All features

Design

Rack mounting:
No
LED indicators:
Activity, Link, Power
Wall mountable:
Yes
Product colour:
Blue
Stackable:
No
Housing material:
Metal
International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.
IP30
DIN rail mounting:
Yes

Certificates

Certification:
FCC 15 A, CE, IEC 60068-2-32, IEC 60068-2-27, IEC 60068-2-6

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
8.7 W
Input voltage:
12 - 48
Redundant power supply (RPS) support:
Yes
Power protection features:
Reverse polarity
DC input voltage:
24

Operational conditions

Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 75
Operating temperature (T-T):
-40 - 75
Storage relative humidity (H-H):
5 - 95
Heat dissipation:
29.69 BTU/h

Logistics data

Harmonized System (HS) code:
85176990

Network

Full duplex:
Yes
Networking standards:
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Flow control support:
Yes
Auto MDI/MDI-X:
Yes
10G support:
No
Copper ethernet cabling technology:
10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported:
Cat5, Cat5e, Cat6
Auto-negotiation:
Yes

Ports & interfaces

Fiber optic connector:
SFP
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
8
SFP module slots quantity:
2

Optical fiber

Fiber ethernet cabling technology:
100BASE-FX
Transmission distance (max):
60 km

Data transmission

MAC address table:
4000 entries
Switching capacity:
20 Gbit/s
Jumbo frames support:
Yes
Store-and-forward:
Yes
Throughput:
14.88 Mpps
Jumbo frames:
9216

Weight & dimensions

Weight:
0.54 kg
Height:
135 mm
Width:
56 mm
Depth:
87 mm

Power over Ethernet (PoE)

Power over Ethernet (PoE):
No

Other features

Terminal block port:
Yes

Management features

Switch type:
Unmanaged

Similar products

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

{{product.price | formatAmount}}
Might be useful
{{product.manufacturerName}}
{{product.categoryName}}
{{product.title}}
{{product.specialPrice}}
{{product.price}}
Stock data
Warehouse Stock Delivery to the store Store Price
WH355 2 14.07.2026 198.99 €
WH319 11 06.07.2026 Best delivery 205.49 €
WH94 11 09.07.2026 205.49 €
Show all offers Hide
Available only for legal entities
Warehouse Stock Delivery to the store Store Price
EU6 10 09.07.2026 182.49 €
WH332 11 09.07.2026 189.99 €
WH109 10 23.07.2026 205.49 €
Show all offers Hide
198.99 €
Stock: 2
Delivery Date: 14.07.2026
Warehouse: WH355
205.49 €
Stock: 11
Delivery Date: 06.07.2026 Best delivery
Warehouse: WH319
205.49 €
Stock: 11
Delivery Date: 09.07.2026
Warehouse: WH94
216.49 €
Stock: 3
Delivery Date: 09.07.2026
Warehouse: EU3
Available only for legal entities
182.49 €
Stock: 10
Delivery Date: 09.07.2026
Warehouse: EU6
189.99 €
Stock: 11
Delivery Date: 09.07.2026
Warehouse: WH332
205.49 €
Stock: 10
Delivery Date: 23.07.2026
Warehouse: WH109
216.49 €
Stock: 25
Delivery Date: 23.07.2026
Warehouse: EU4

Customer reviews

Customer questions

FAQ

How much does the Unmanaged Switch PLANET IGS-1020TF cost, and is it available for purchase?

The price is 182.49 € (valid at the time of publication and already includes all taxes). The item is available for order — 83 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 09.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All PLANET products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized PLANET service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: weight, 10g support, basic switching rj-45 ethernet ports quantity, switch type, basic switching rj-45 ethernet ports type, product colour, networking standards, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for Unmanaged Switch PLANET IGS-1020TF?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
